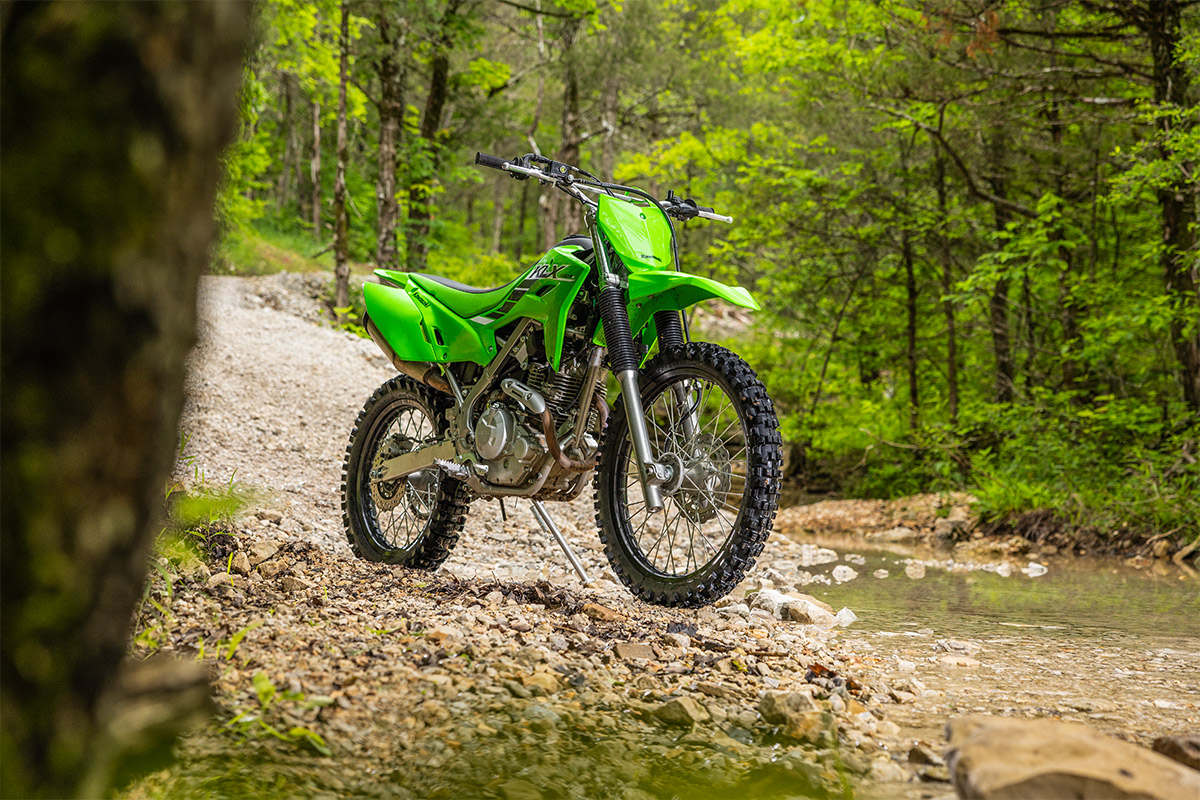

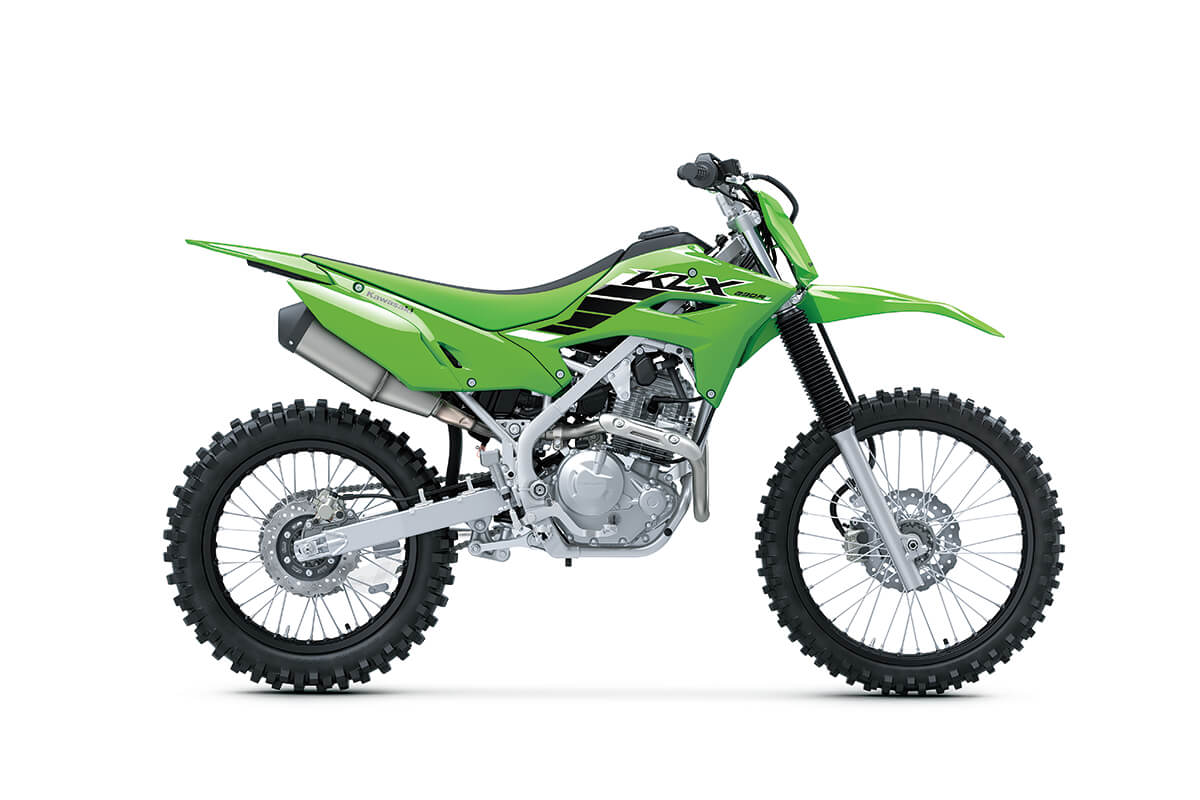

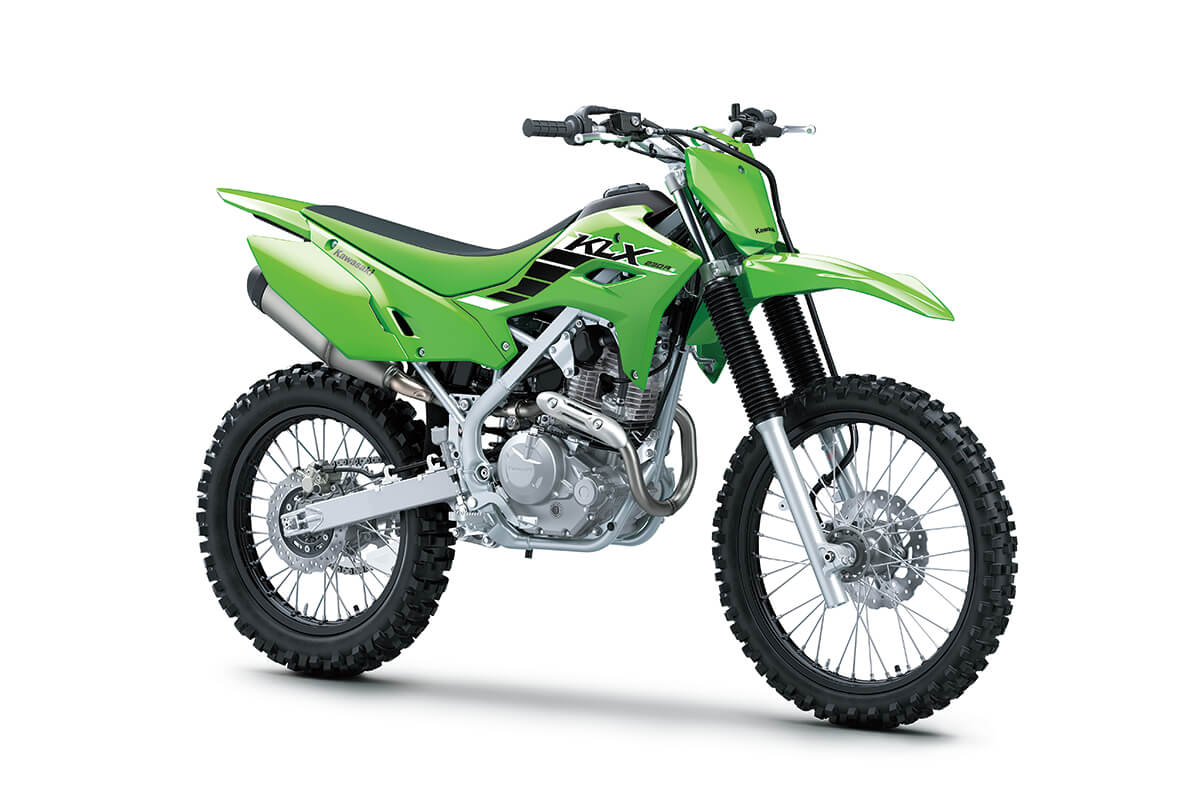

KLX®230R S

HIGHLY CAPABLE TRAIL BIKE FOR OFF-ROADING

  • MSRP
    $4,999

Destination Charge $300

Dealer sets the actual destination charge, your price may vary.

Specifications and pricing are subject to change.

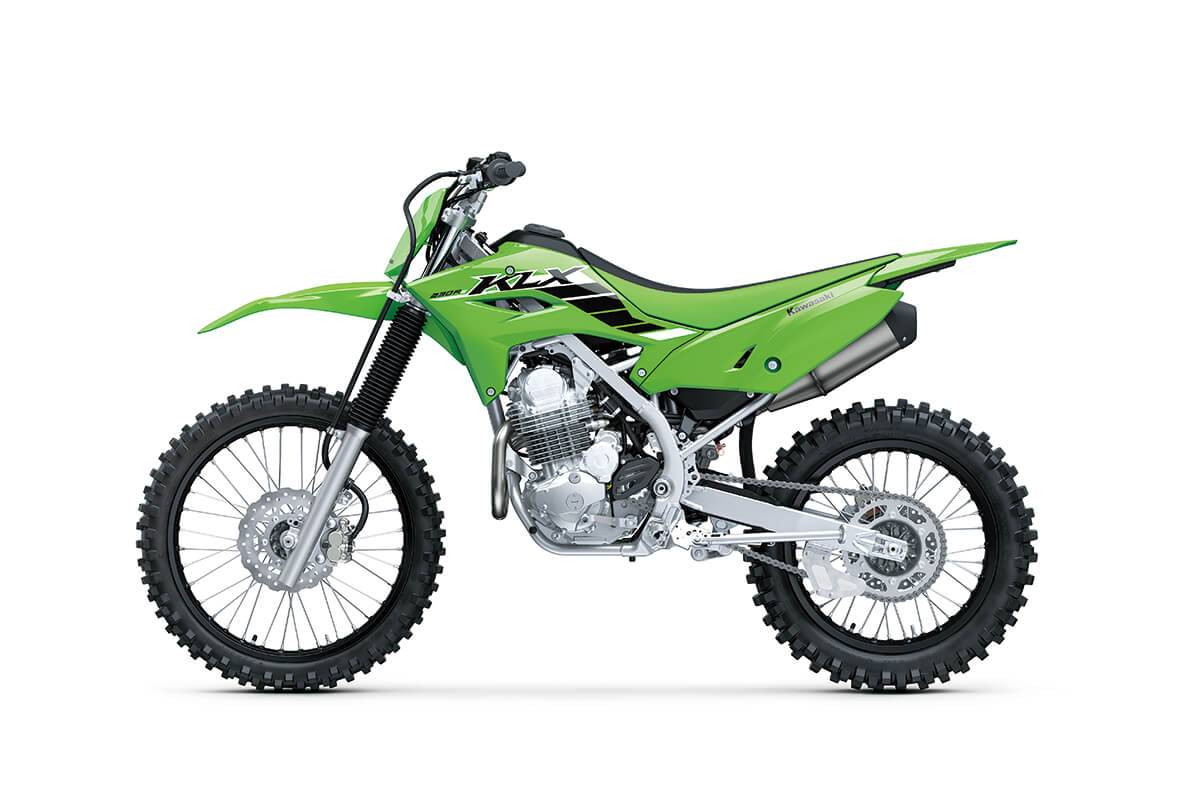

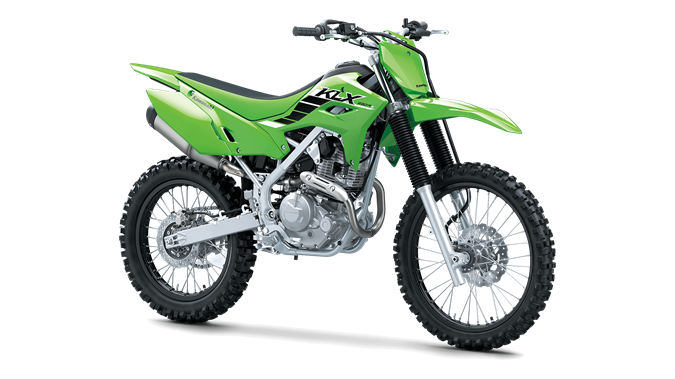

Lime Green

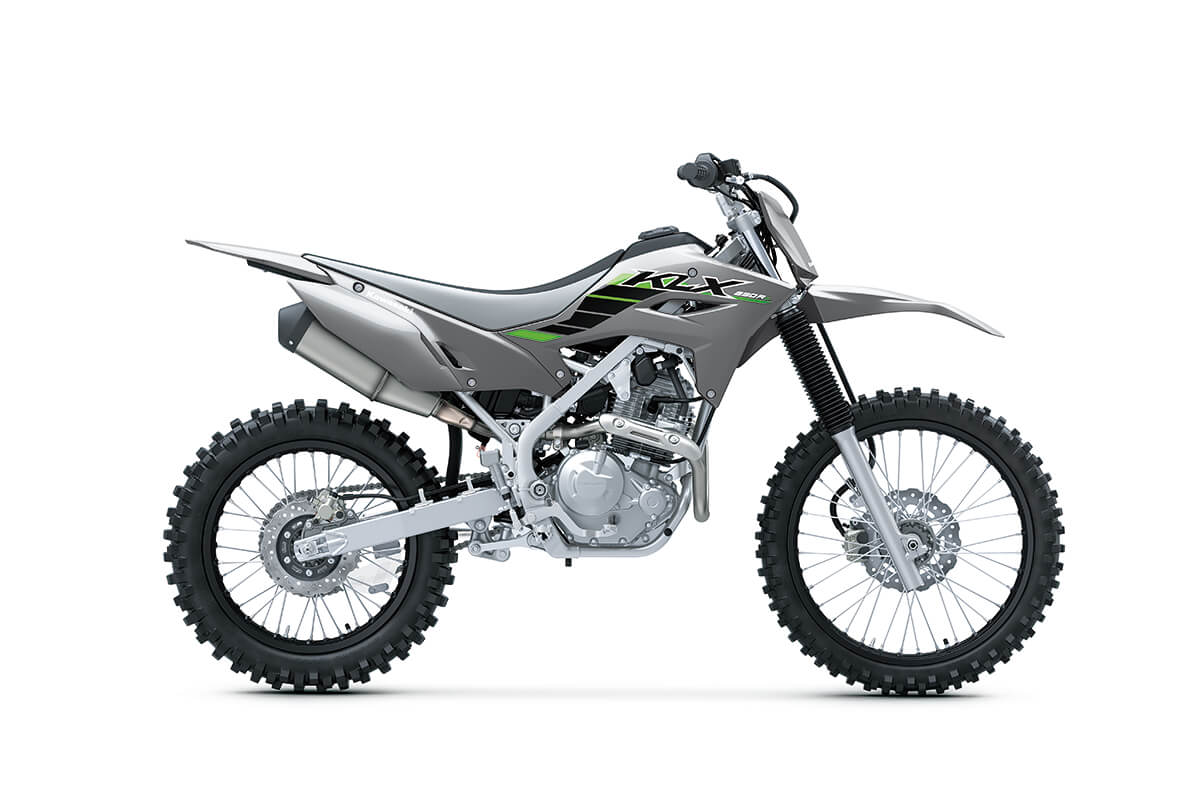

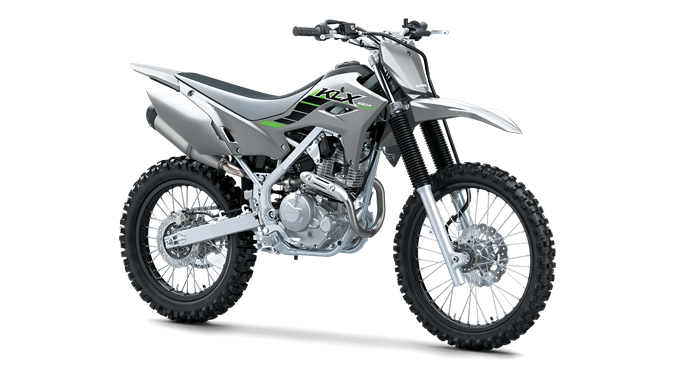

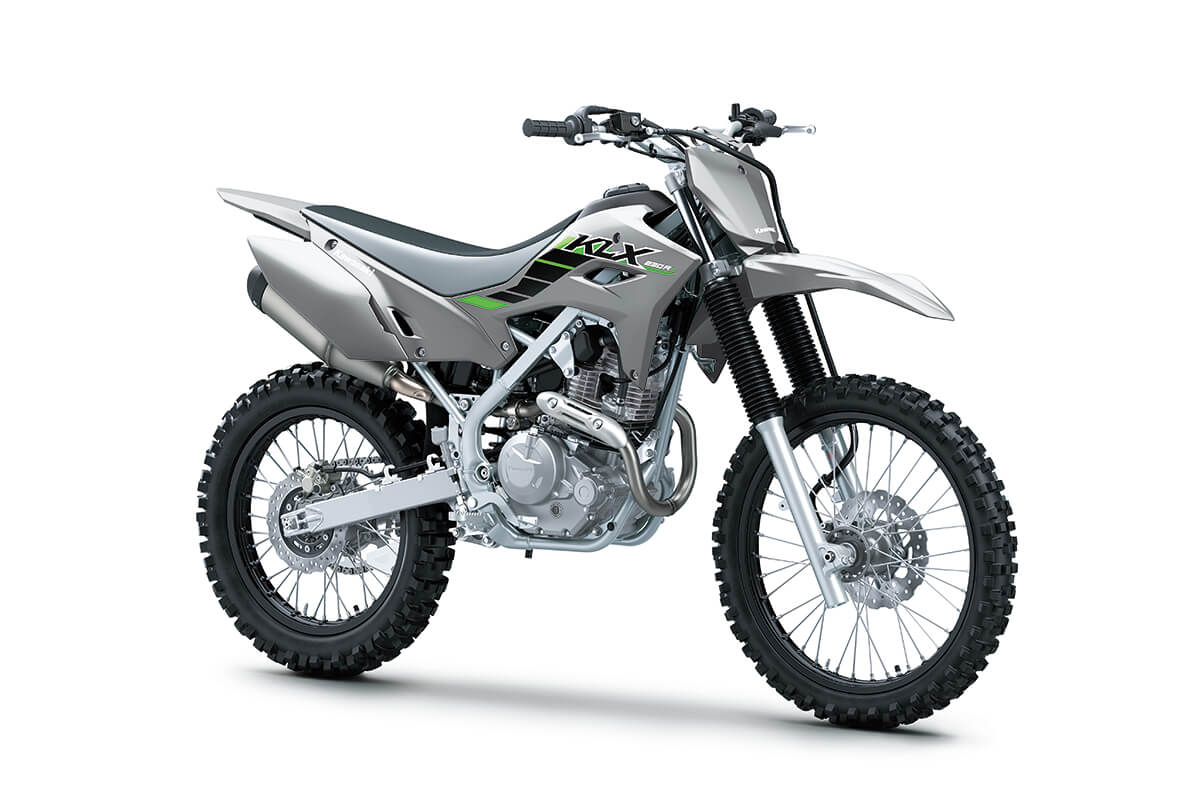

Battle Gray

Lime Green

Battle Gray

UPDATED 233cc FUEL-INJECTED,
AIR-COOLED 4-STROKE SINGLE
LOW 34.4-IN
SEAT HEIGHT
POWER
Engine 4-stroke, single-cylinder, SOHC, air-cooled
Displacement 233cc
Bore x Stroke 67.0 x 66.0mm
Compression Ratio 9.4:1
Fuel System DFI® with 32mm Keihin throttle body
Ignition TCBI with electronic advance
Transmission 6-speed, return shift with wet multi-disc manual clutch
Final Drive Chain
PERFORMANCE
Front Suspension / Wheel Travel 37mm telescopic fork/8.7 in
Rear Suspension / Wheel Travel Uni-Trak® linkage system and single shock with adjustable spring preload/8.8 in
Front Tire 80/100-21
Rear Tire 100/100-18
Front Brakes Single 240mm petal disc with a dual-piston caliper
Rear Brakes Single 220mm petal disc with single-piston caliper
DETAILS
Frame Type High-tensile steel, box-section perimeter
Rake/Trail 24.6°/3.9 in
Overall Length 80.5 in
Overall Width 33.3 in
Overall Height 46.7 in
Ground Clearance 10.6 in
Seat Height 34.4 in
Curb Weight 262.4 lb* / 264.5 lb* 50-State Model
Fuel Capacity 2.0 gal
Wheelbase 53.3 in
Color Choices Lime Green, Battle Gray
VIEW WARRANTY INFO DOWNLOAD SPECS

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©️2024 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
