All-New 2025

W230 ABS

RETRO-STYLED MOTORCYCLE WITH MODERN PERFORMANCE

BUILD YOURS TODAY

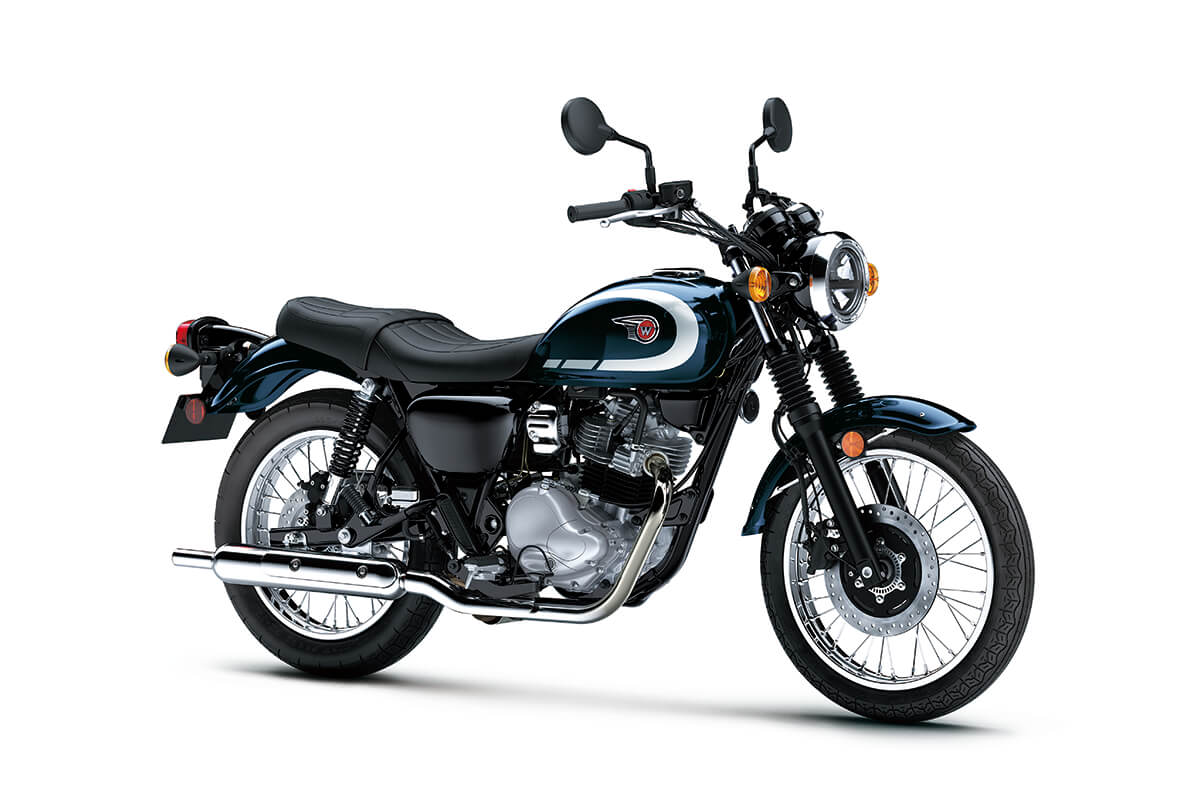

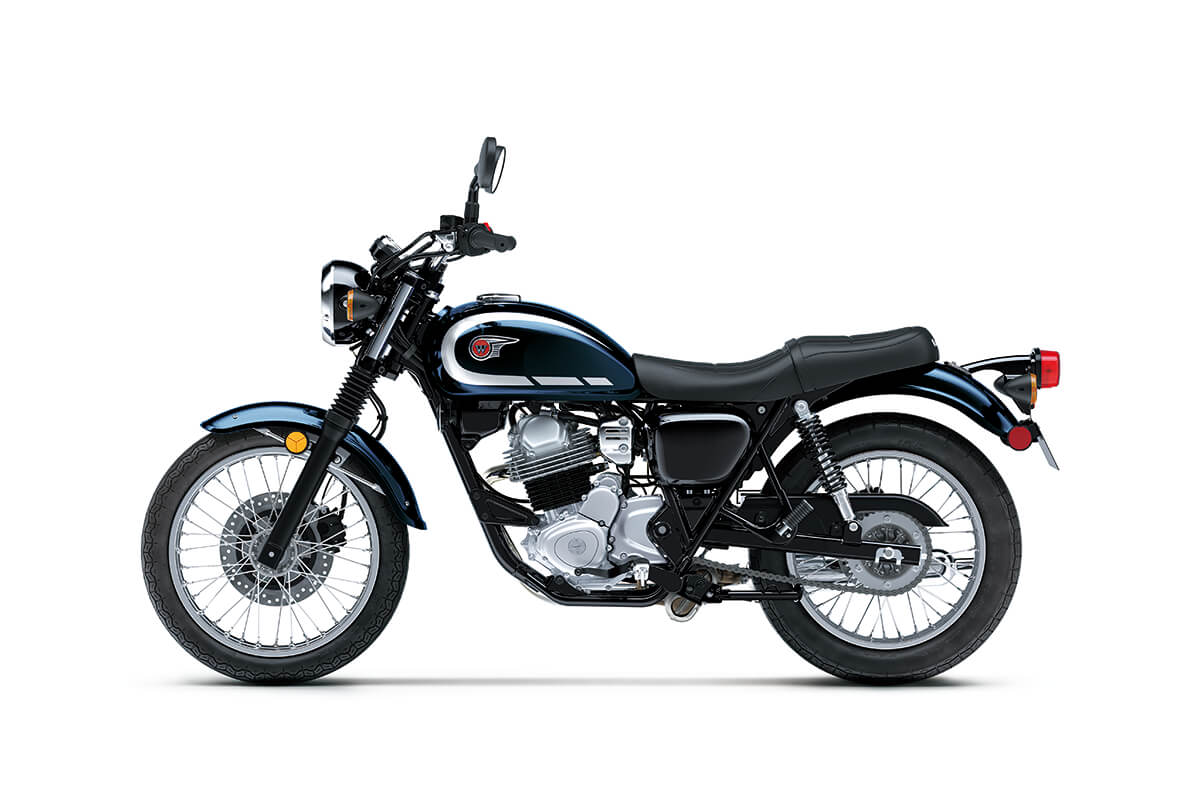

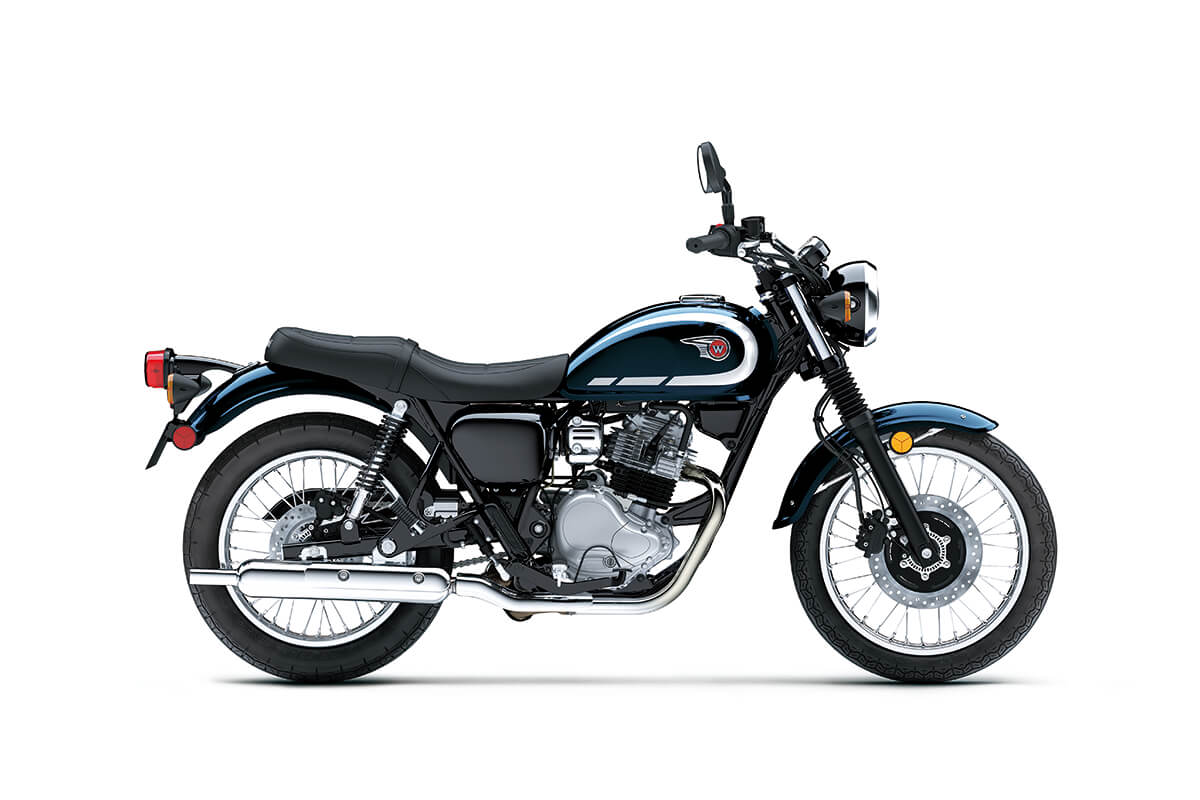

2025 W230 ABS
SPECS
GALLERY
SIMILAR MODELS

2025 W230 ABS

OVERVIEW

SPECS GALLERY SIMILAR MODELS

COMPARE LOCATE A DEALER

MSRP

$5,599

Destination Charge $400

Dealer sets the actual destination charge, your price may vary.

Specifications and pricing are subject to change.

MODEL SPECS

Select a Color

Select a View

233cc AIR-COOLED FUEL-INJECTED

4-STROKE ENGINE

DISC BRAKES

WITH ABS

Click on a technology to learn more.

Chassis Management Technology

ABS (Anti-lock Brake System)

POWER
Engine	4-stroke, single-cylinder, SOHC, 2 valves, air-cooled
Displacement	233cc
Bore x Stroke	67.0 x 66.0mm
Compression Ratio	9.0:1
Maximum Torque	14.0 lb-ft @ 5,800 rpm
Fuel System	DFI® with 32mm throttle bodies
Ignition	TCBI with Digital Advance
Transmission	6-speed, return shift
Final Drive	Sealed chain
Electronic Rider Aids	Anti-lock Brake System

PERFORMANCE
Front Suspension / Wheel Travel	37mm telescopic fork/4.6 in
Rear Suspension / Wheel Travel	Twin shocks with spring preload adjustability/3.7 in
Front Tire	90/90-18
Rear Tire	110/90-17
Front Brakes	Single 265mm disc with 2-piston calipers, ABS
Rear Brakes	Single 220mm disc with 1-piston caliper, ABS

DETAILS
Frame Type	Semi-double cradle, steel
Rake/Trail	27.0°/3.7 in
Overall Length	83.6 in
Overall Width	31.4 in
Overall Height	42.9 in
Ground Clearance	5.9 in
Seat Height	29.3 in
Dry Weight	293.2 lb**
Curb Weight	315.2 lb*
Fuel Capacity	3.1 gal
Wheelbase	55.7 in
Color Choices	Metallic Ocean Blue/Ebony

VIEW WARRANTY INFO DOWNLOAD SPECS

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment adds approximately 2.2 lb.

**Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).

KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2024 Kawasaki Motors Corp., U.S.A.

Specifications subject to change.
