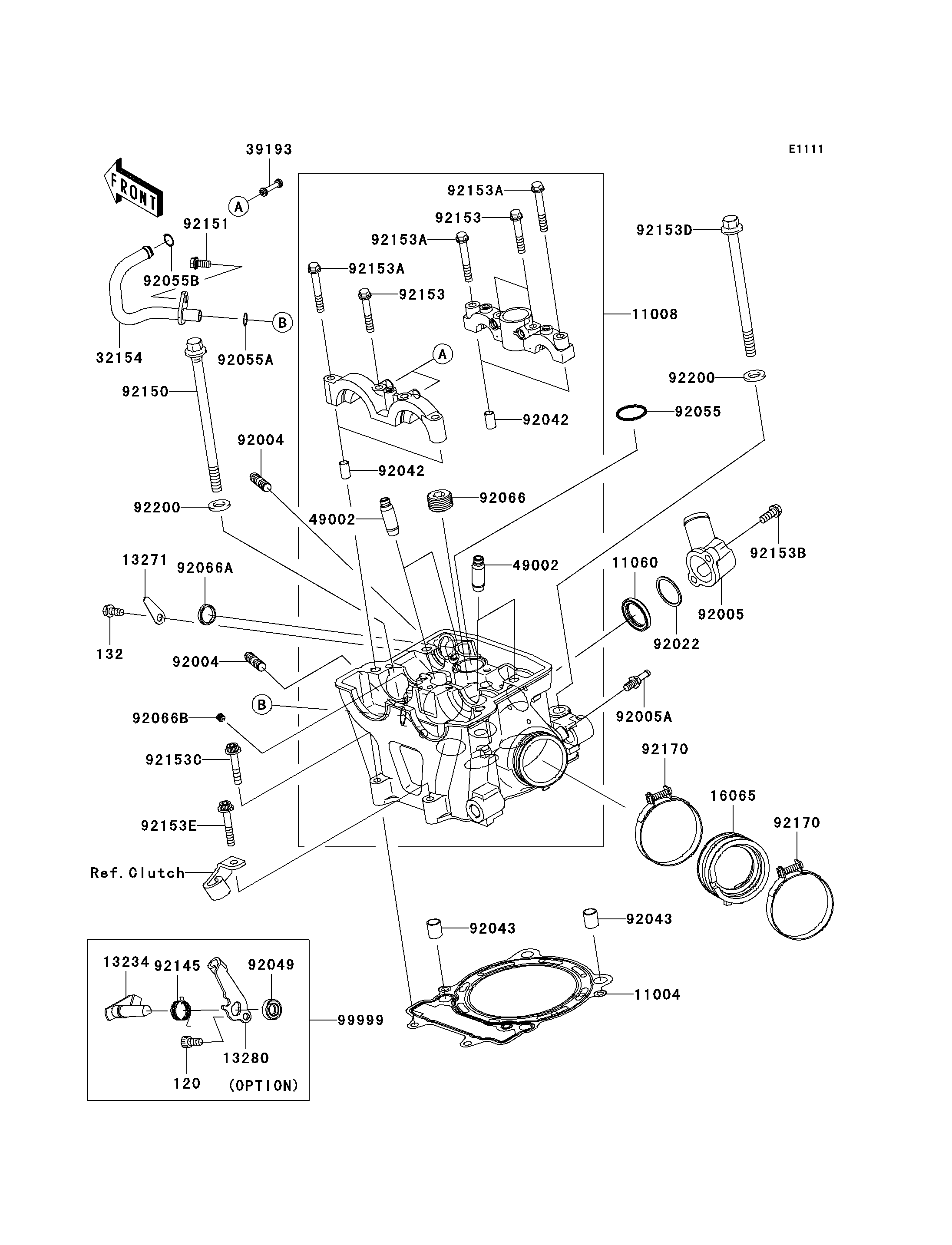

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET-HEAD | 11004 | 11004-0045 | 1 | ||
HEAD-COMP-CYLINDER | 11008 | 11008-0139 | 1 | ||
GASKET,THERMOSTAT | 11060 | 11060-1300 | 1 | ||
SHAFT-COMP,DECOMP | 13234 | 13234-0009 | 1 | (OPTION) | |
PLATE | 13271 | 13271-0675 | 1 | ||
HOLDER,DECOMP | 13280 | 13280-0038 | 1 | (OPTION) | |
HOLDER-CARBURETOR | 16065 | 16065-0050 | 1 | ||
PIPE,2ND AIR | 32154 | 32154-1180 | 1 | ||
PIPE-OIL | 39193 | 39193-0027 | 2 | ||
GUIDE-VALVE | 49002 | 49002-0007 | AR | ||
STUD,8X22 | 92004 | 92004-0025 | 2 | ||
FITTING | 92005 | 92005-0018 | 1 | ||
FITTING | 92005A | 92005-0056 | 1 | ||
WASHER,25.3X30X1 | 92022 | 92022-161 | 1 | ||
PIN,DOWEL,6.3X8X14 | 92042 | 92042-007 | 4 | ||
PIN,10.1X12X14 | 92043 | 92043-4009 | 2 | ||
SEAL-OIL | 92049 | 92049-1196 | 1 | (OPTION) | |
RING-O,23.5X2.0 | 92055 | 92055-0046 | 1 | ||
RING-O,9.8X1.9 | 92055A | 92055-0061 | 1 | ||
RING-O,10MM | 92055B | 92055-1150 | 1 | ||
PLUG,PT1/2X12.5 | 92066 | 92066-0002 | 1 | ||
PLUG,4X18 | 92066A | 92066-0024 | 1 | ||
PLUG,6X6 | 92066B | 92066-0068 | 1 | ||
SPRING | 92145 | 92145-0048 | 1 | (OPTION) | |
BOLT,L=140 | 92150 | 92150-1935 | 2 | ||
BOLT,6X12 | 92151 | 92151-1133 | 1 | ||
BOLT,6X38 | 92153 | 92153-0338 | 4 | ||
BOLT,6X45 | 92153A | 92153-0339 | 4 | ||
BOLT,6X16 | 92153B | 92153-0695 | 2 | ||
BOLT,6X35 | 92153C | 92153-0810 | 1 | ||
BOLT,FLANGED-SMALL,10X127 | 92153D | 92153-1001 | 2 | ||
BOLT,SOCKET,6X40 | 92153E | 92153-1725 | 1 | ||
CLAMP | 92170 | 92170-1448 | 2 | ||
WASHER,10.5X19X2.3 | 92200 | 92200-0114 | 4 | ||
KIT.,MANUAL DECOMP | 99999 | 99999-0023 | 1 | (OPTION) | |
BOLT-SOCKET,6X12 | 120 | 120CA0612 | 1 | (OPTION) | |
BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 1 |
