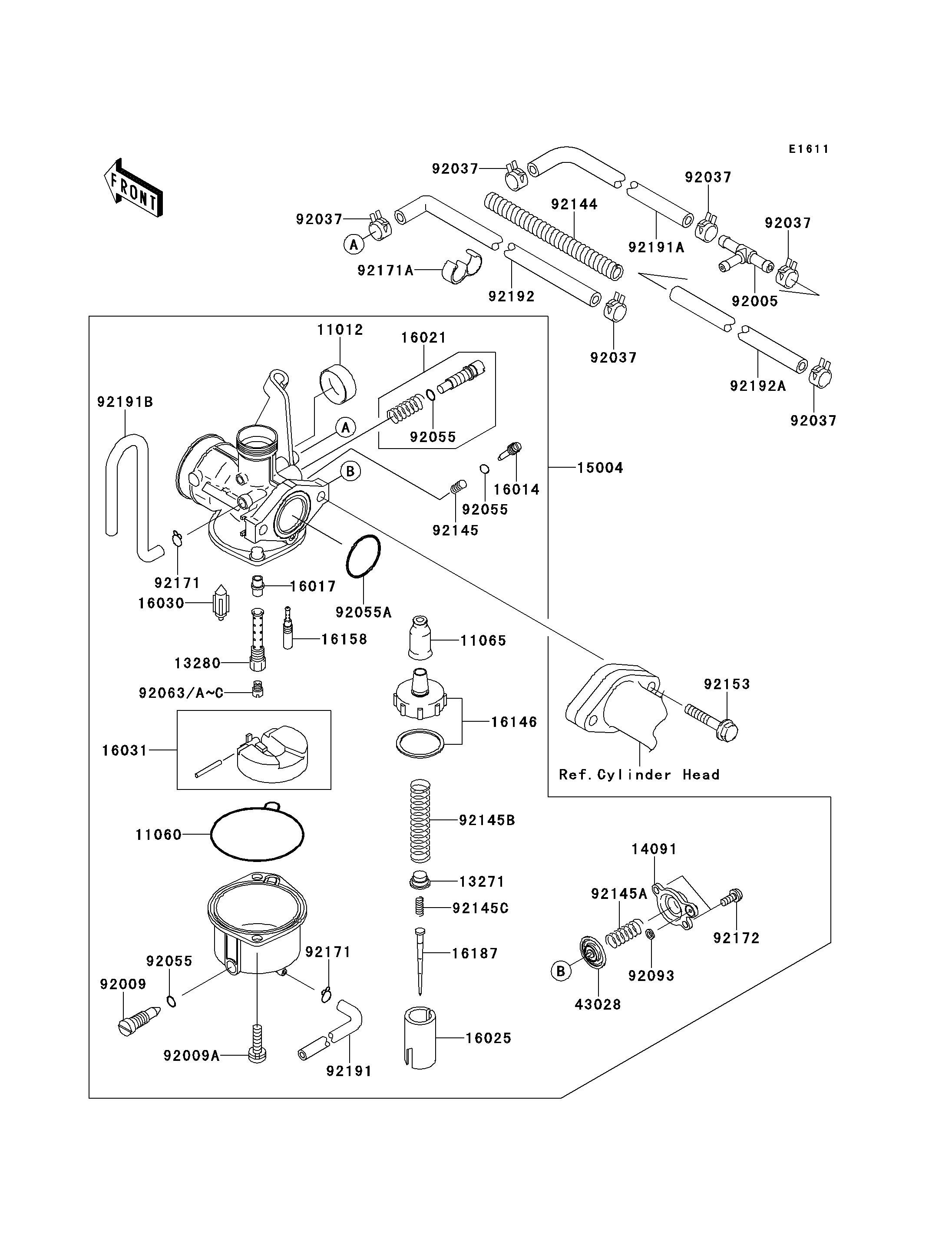

2012 EDGE R - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11060
11060
11065
11065
13271
13271
13280
13280
14091
14091
15004
15004
16014
16014
16017
16017
16021
16021
16025
16025
16030
16030
16031
16031
16146
16146
16158
16158
16187
16187
43028
43028
92005
92005
92009
92009
92009A
92009A
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92055
92055
92055
92055
92055
92055
92055A
92055A
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92093
92093
92144
92144
92145
92145
92145A
92145A
92145B
92145B
92145C
92145C
92153
92153
92171
92171
92171
92171
92171A
92171A
92172
92172
92191
92191
92191A
92191A
92191B
92191B
92192
92192
92192A
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CHOKE 11012 11012-1940 1
GASKET,FLOAT CHAMBER 11060 11060-1700 1
CAP,TOP COVER 11065 11065-1235 1
PLATE 13271 13271-1668 1
HOLDER,NEEDLE JET 13280 13280-1282 1
COVER 14091 14091-0285 1
CARBURETOR-ASSY,PB18 15004 15004-0743 1
SCREW-PILOT AIR 16014 16014-0013 1
JET-NEEDLE 16017 16017-1399 1
SCREW-THROTTLE STOP 16021 16021-1203 1
VALVE-THROTTLE 16025 16025-1225 1
VALVE-FLOAT,FLOAT 16030 16030-0002 1
FLOAT 16031 16031-1107 1
COVER-ASSY,CARBURETOR TOP 16146 16146-1229 1
JET-SLOW,#38 16158 16158-1063 1
NEEDLE-JET,NEQC 16187 16187-0024 1
DIAPHRAGM 43028 43028-0003 1
FITTING 92005 92005-0112 1
SCREW,DRAIN 92009 92009-1057 1
SCREW 92009A 92009-1750 2
CLAMP 92037 92037-1601 6
RING-O 92055 92055-1053 3
RING-O 92055A 92055-1541 1
JET-MAIN,#85 92063 92063-1326 AR (OPTION)
JET-MAIN,#78 92063A 92063-1393 AR (OPTION)
JET-MAIN,#80 92063B 92063-1396 1
JET-MAIN,#82 92063C 92063-1397 AR (OPTION)
SEAL,URING 92093 92093-1046 1
SPRING 92144 92144-1994 1
SPRING 92145 92145-0004 1
SPRING 92145A 92145-0217 1
SPRING,THROTTLE VALVE 92145B 92145-1407 1
SPRING,THROTTLE VALVE PLATE 92145C 92145-1408 1
BOLT,FLANGED-SMALL,6X28 92153 92153-1309 2
CLAMP 92171 92171-0494 2
CLAMP 92171A 92171-1184 1
SCREW 92172 92172-0165 2
TUBE,3.5X6.5X298 92191 92191-1142 1
TUBE,FUEL 92191A 92191-1204 1
TUBE,3.5X6.5X350 92191B 92191-1768 1
TUBE,5X9X290 92192 92192-0804 1
TUBE,5X9X110 92192A 92192-0805 1
