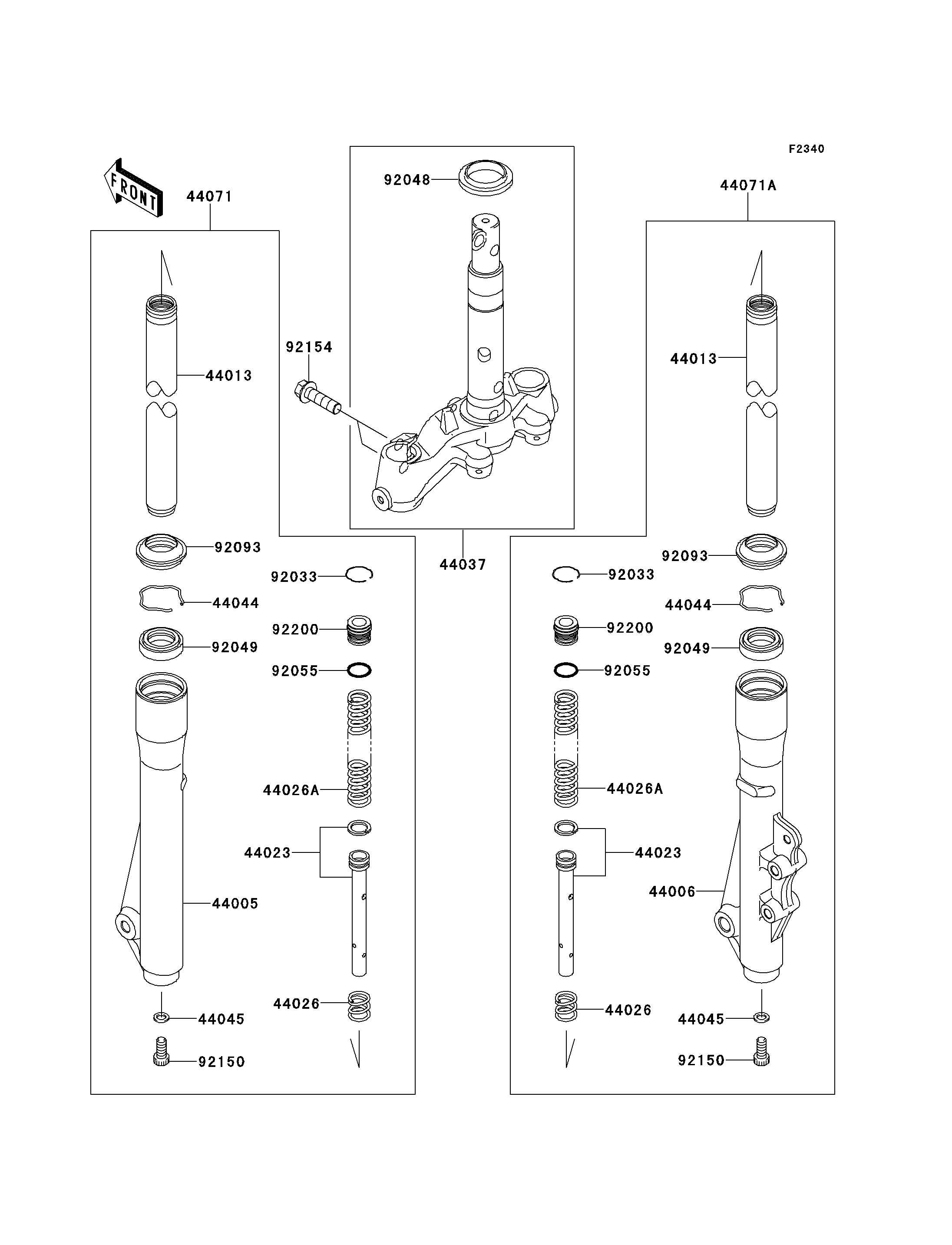

2012 EDGE R - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
44005
44006
44013
44013
44023
44023
44026
44026
44026A
44026A
44037
44044
44044
44045
44045
44071
44071A
92033
92033
92048
92049
92049
92055
92055
92093
92093
92150
92150
92154
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIPE-LEFT FORK OUTER,P.SILVER 44005 44005-0054-458 1
PIPE-RIGHT FORK OUTER,P.SILVER 44006 44006-0053-458 1
PIPE-FORK INNER 44013 44013-0211 2
CYLINDER-SET-FORK 44023 44023-0101 2
SPRING-FRONT FORK 44026 44026-0150 2
SPRING-FRONT FORK 44026A 44026-0172 2
HOLDER-FORK UNDER 44037 44037-0103 1
RING-SNAP,45MM 44044 44044-020 2
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
DAMPER-ASSY,LH,P.SILVER 44071 44071-0786-458 1
DAMPER-ASSY,RH,P.SILVER 44071A 44071-0797-458 1
RING-SNAP 92033 92033-1328 2
RACE,STEERING STEM BEARING 92048 92048-1119 1
SEAL-OIL 92049 92049-0728 2
RING-O 92055 92055-1675 2
SEAL,FORK OUTER TUBE 92093 92093-1559 2
BOLT,SOCKET,8X18 92150 92150-1432 2
BOLT,FLANGED,10X35 92154 92154-0353 4
WASHER 92200 92200-1612 2
