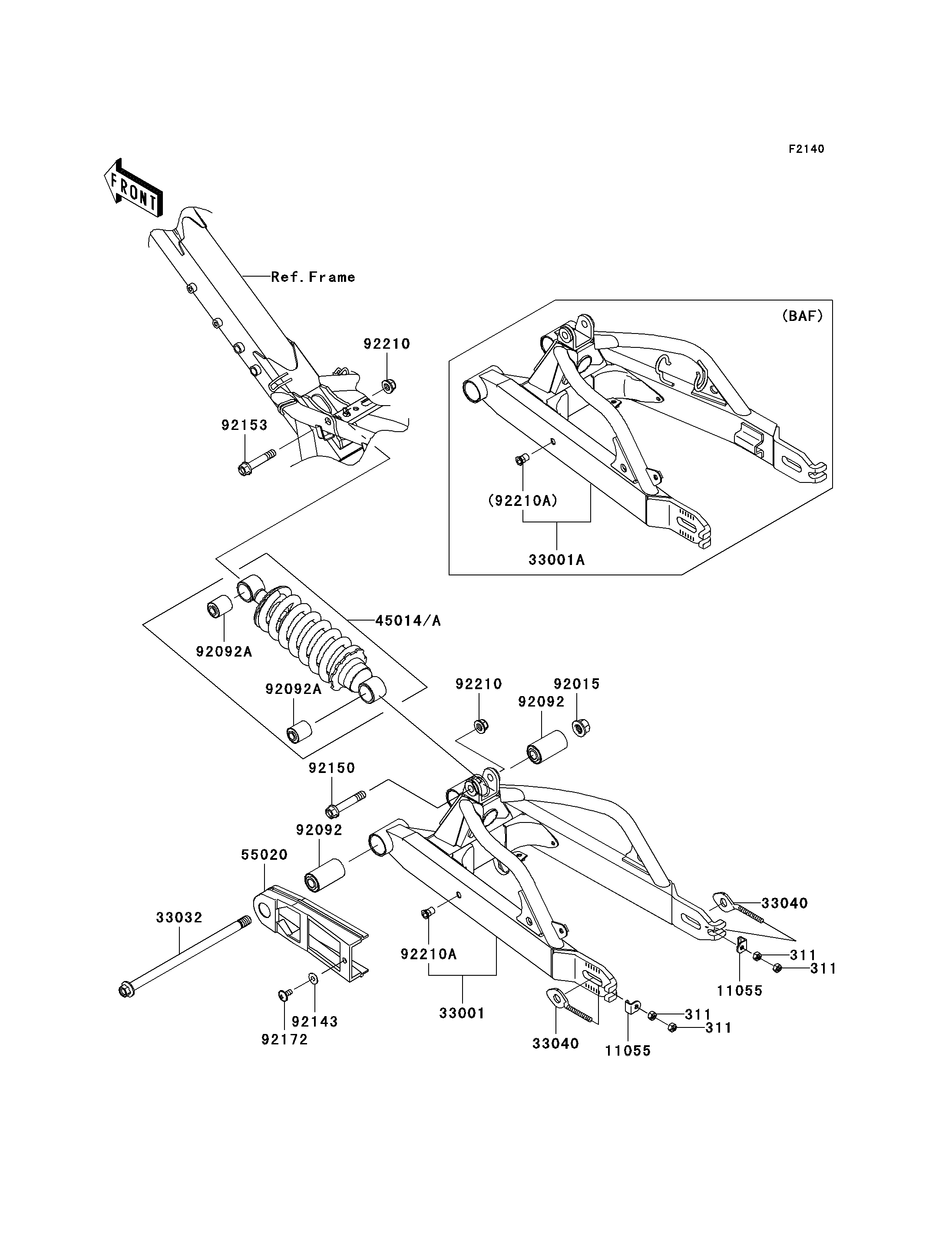

2010 Fury 125R - Swingarm/Shock Absorber
311
311
311
311
11055
11055
33001A
33032
33040
33040
45014
55020
92015
92092
92092
92092A
92092A
92143
92150
92153
92172
92210
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT-HEX,6MM | 311 | 311AA0600 | 4 | ||
| BRACKET | 11055 | 11055-1502 | 2 | ||
| ARM-COMP-SWING,BLACK | 33001A | 33001-0186-10 | 1 | ||
| SHAFT-SWING ARM | 33032 | 33032-0028 | 1 | ||
| ADJUSTER-CHAIN | 33040 | 33040-1006 | 2 | ||
| SHOCKABSORBER,YELLOW | 45014 | 45014-0313-20S | 1 | ||
| GUARD,CHAIN | 55020 | 55020-0492 | 1 | ||
| NUT,12MM | 92015 | 92015-1426 | 1 | ||
| BUSHING-RUBBER | 92092 | 92092-0015 | 2 | ||
| BUSHING-RUBBER | 92092A | 92092-1079 | 2 | ||
| COLLAR | 92143 | 92143-1087 | 1 | ||
| BOLT,FLANGED,10X57 | 92150 | 92150-1227 | 1 | ||
| BOLT,FLANGED,10X52 | 92153 | 92153-1864 | 1 | ||
| SCREW,6X14 | 92172 | 92172-0055 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 2 | ||
| NUT,POP,6MM,L=15 | 92210A | 92210-1397 | 1 |
