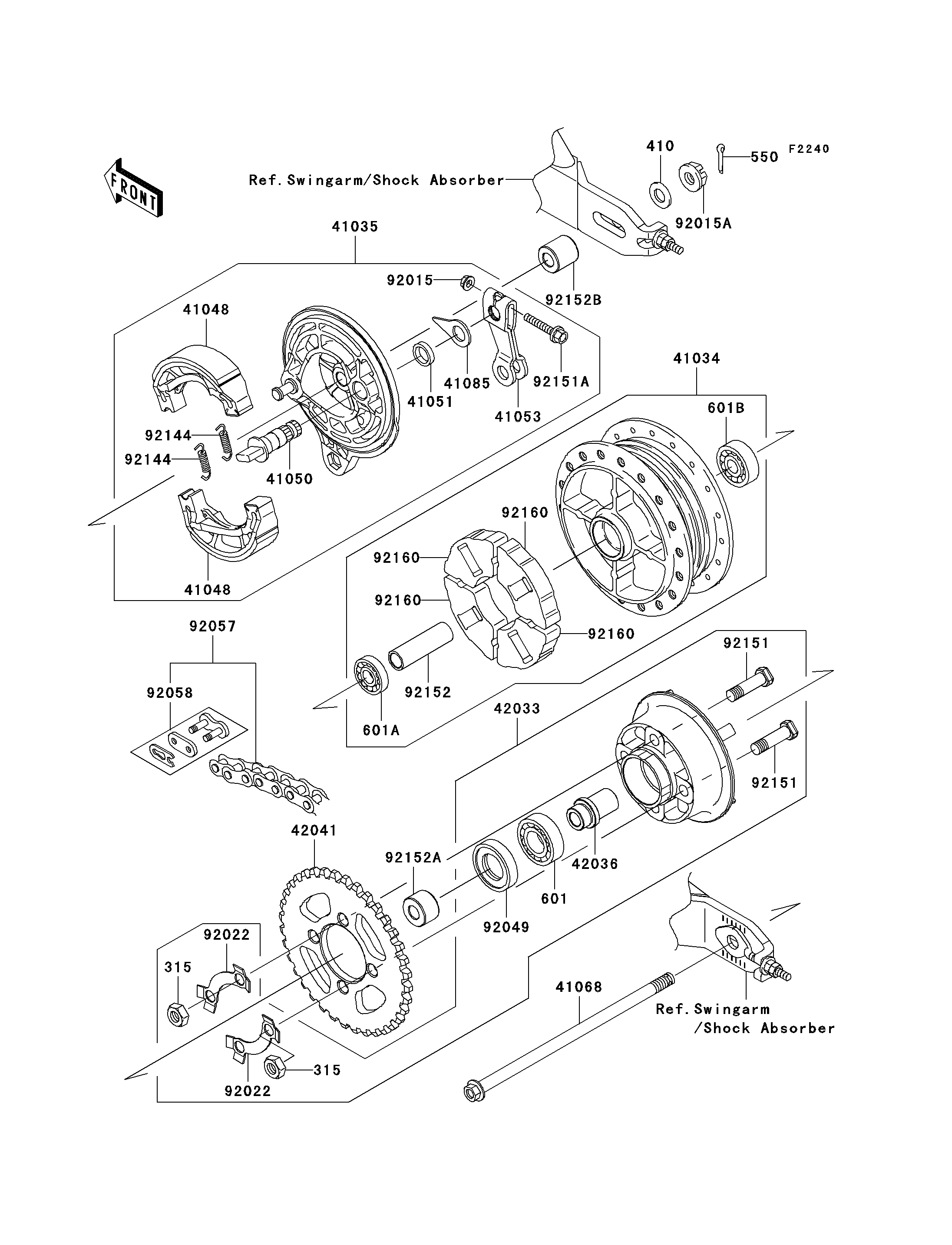

Parts Diagrams |
315
315
410
550
601
601A
601B
41034
41035
41048
41048
41050
41051
41053
41068
41085
42033
42036
42041
92015
92015A
92022
92022
92049
92057
92058
92144
92144
92151
92151
92151A
92152
92152A
92152B
92160
92160
92160
92160
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT-HEX-FINE,10MM | 315 | 315AA1000 | 4 | ||
WASHER-PLAIN-SMALL,12MM | 410 | 410AA1200 | 1 | ||
PIN-COTTER,3.0X25 | 550 | 550AA3025 | 1 | ||
BEARING-BALL,#6004UG | 601 | 601B6004UG | 1 | ||
BEARING-BALL,#6201UG | 601A | 601B6201UG | 1 | ||
BEARING-BALL,#6301UG | 601B | 601B6301UG | 1 | ||
DRUM-ASSY,REAR BRAKE | 41034 | 41034-0067 | 1 | ||
PANEL-ASSY-BRAKE,RR | 41035 | 41035-0054 | 1 | ||
SHOE-BRAKE | 41048 | 41048-0003 | 2 | ||
CAM-BRAKE | 41050 | 41050-1098 | 1 | ||
SEAL,BRAKE CAM | 41051 | 41051-001 | 1 | ||
LEVER-BRAKE CAM | 41053 | 41053-0015 | 1 | ||
AXLE,RR | 41068 | 41068-0078 | 1 | ||
INDICATOR | 41085 | 41085-1079 | 1 | ||
COUPLING-ASSY,RR HUB | 42033 | 42033-0012 | 1 | ||
SLEEVE,RR HUB COUPLING,L=41 | 42036 | 42036-0017 | 1 | ||
SPROCKET-HUB,36T | 42041 | 42041-0068 | 1 | ||
NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | ||
NUT,CASTLE,12MM | 92015A | 92015-1870 | 1 | ||
WASHER,LOCK | 92022 | 92022-1705 | 2 | ||
SEAL-OIL,SC26X42X8 | 92049 | 92049-1490 | 1 | ||
CHAIN,DRIVE,RK420SBX104L | 92057 | 92057-0162 | 1 | ||
JOINT-CHAIN,DRIVE | 92058 | 92058-0020 | 1 | ||
SPRING,BRAKE SHOE | 92144 | 92144-1907 | 2 | ||
BOLT,RR HUB COUPLING,10X36 | 92151 | 92151-1160 | 4 | ||
BOLT,FLANGED,6X34 | 92151A | 92151-1209 | 1 | ||
COLLAR,RR BRAKE DRUM,L=58 | 92152 | 92152-0354 | 1 | ||
COLLAR,RR AXLE,LH,L=17 | 92152A | 92152-0452 | 1 | ||
COLLAR,RR AXLE,L=24 | 92152B | 92152-0565 | 1 | ||
DAMPER,SHOCK,RR HUB | 92160 | 92160-1627 | 4 |
