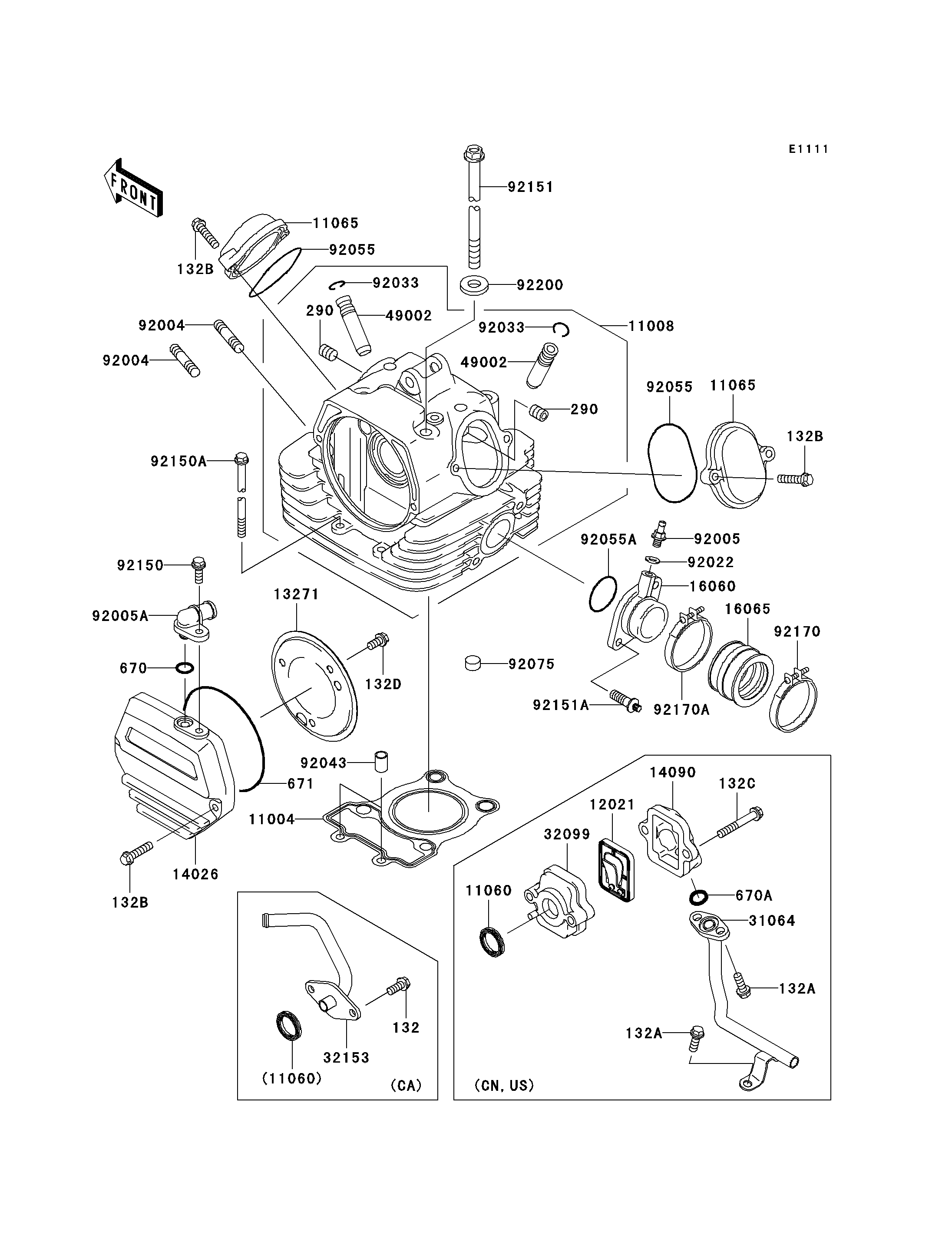

2001 Eliminator 125 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
132A
132A
132A
132A
132B
132B
132B
132B
132B
132B
132C
132C
11004
11004
11008
11008
11060
11060
11065
11065
11065
11065
12021
12021
13271
13271
14026
14026
14090
14090
16060
16060
16065
16065
31064
31064
32099
32099
49002
49002
49002
49002
92004
92004
92004
92004
92005
92005
92005A
92005A
92022
92022
92033
92033
92033
92033
92043
92043
92055
92055
92055
92055
92055A
92055A
92075
92075
92150
92150
92150A
92150A
92151
92151
92151A
92151A
92170
92170
92170A
92170A
92200
92200
132D
132D
290
290
290
290
670
670
670A
670A
671
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X16 132A 132V0616 3
BOLT-FLANGED-SMALL 132B 132V0625 6
BOLT-FLANGED-SMALL 132C 132V0640 2
GASKET-HEAD 11004 11004-1335 1
HEAD-COMP-CYLINDER 11008 11008-1384 1
GASKET,REED VALVE 11060 11060-1815 1
CAP,ROCKER CASE 11065 11065-1071 2
VALVE-ASSY-REED 12021 12021-1102 1
PLATE,BREATHER 13271 13271-1109 1
COVER-CHAIN,CAM SPROCKET 14026 14026-1256 1
COVER,REED VALVE 14090 14090-1852 1
PIPE-INTAKE 16060 16060-1084 1
HOLDER-CARBURETOR 16065 16065-1335 1
PIPE-COMP 31064 31064-1205 1
CASE,REED VALVE 32099 32099-1187 1
GUIDE-VALVE 49002 49002-1116 AR
STUD,8X30 92004 92004-1121 2
FITTING 92005 92005-1337 1
FITTING,BREATHER 92005A 92005-1342 1
WASHER,6.1X12X1 92022 92022-077 1
RING-SNAP 92033 92033-1247 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O,53.5X2.6 92055 92055-112 2
RING-O,32MM 92055A 92055-1256 1
DAMPER 92075 92075-1089 17
BOLT,6X16 92150 92150-1394 1
BOLT,6X110 92150A 92150-1986 2
BOLT,9X228.5 92151 92151-1092 4
BOLT,6X18 92151A 92151-1726 2
CLAMP,CARBURETOR HOLDER 92170 92170-1094 1
CLAMP,43MM 92170A 92170-1527 1
WASHER,9.5X18X1.2 92200 92200-1037 4
BOLT-FLANGED-SMALL 132D 132Y0612 3
SCREW-SET-SOCKET,6X6 290 290Q0606 2
O RING,10MM 670 670B1510 1
O RING,10MM 670A 670B2010 1
O RING 671 671E2595 1
