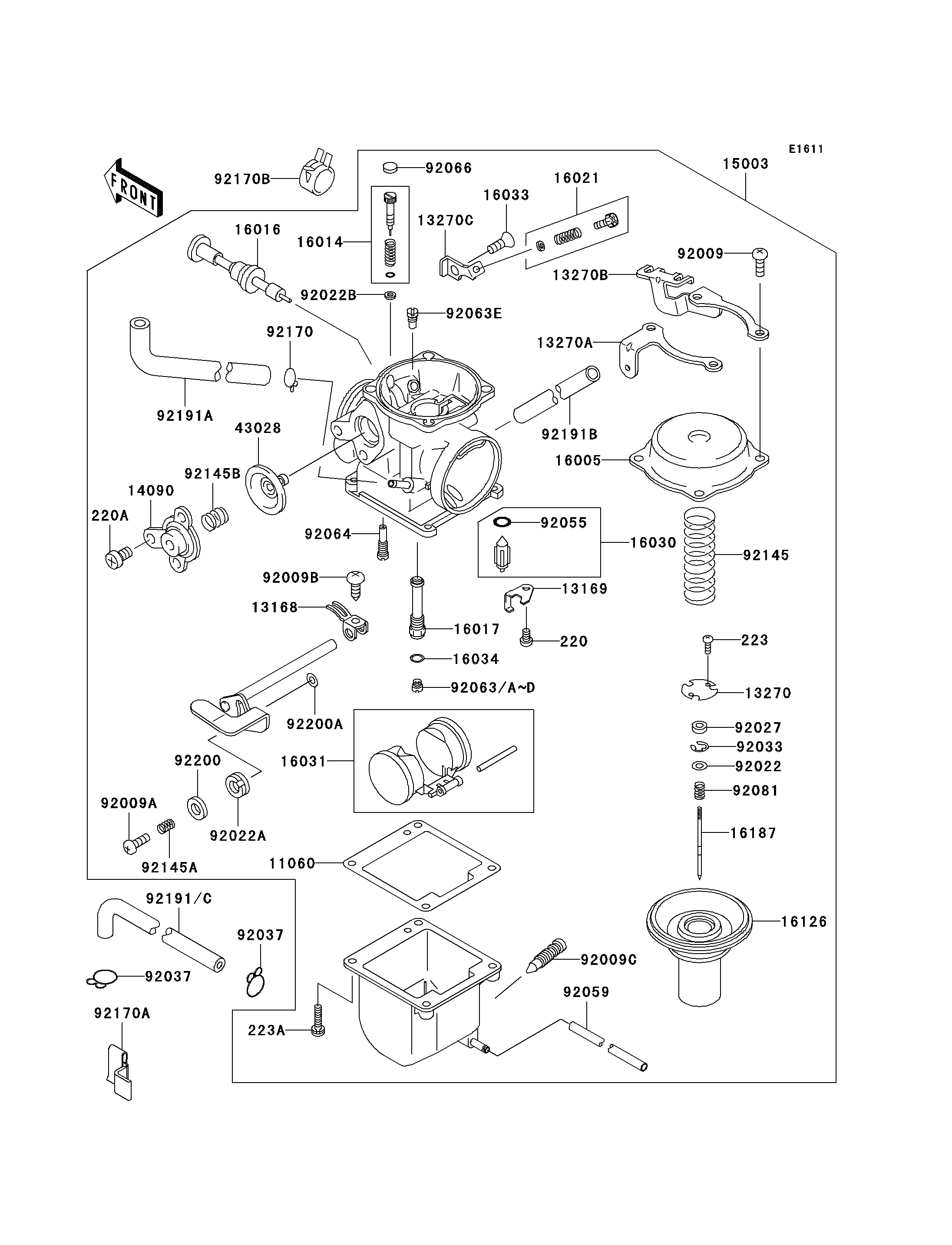

2005 Eliminator 125 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
13168
13168
13169
13169
13270
13270
13270A
13270A
13270B
13270B
13270C
13270C
14090
14090
15003
15003
16005
16005
16014
16014
16016
16016
16017
16017
16021
16021
16030
16030
16031
16031
16033
16033
16034
16034
16126
16126
16187
16187
43028
43028
92009
92009
92009A
92009A
92009B
92009B
92009C
92009C
92022
92022
92022A
92022A
92022B
92022B
92027
92027
92033
92033
92037
92037
92037
92037
92055
92055
92059
92059
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
220
220
220A
220A
223
223
223A
223A
92063D
92063D
92063E
92063E
92064
92064
92066
92066
92081
92081
92145
92145
92145A
92145A
92145B
92145B
92170
92170
92170A
92170A
92170B
92170B
92191A
92191A
92191B
92191B
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11060 11060-1849 1
LEVER,STARTER 13168 13168-1642 1
PLATE,FLOAT VALVE 13169 13169-1482 1
PLATE,VACUUM VALVE 13270 13270-1981 1
PLATE,LH 13270A 13270-1982 1
PLATE,RH 13270B 13270-1983 1
PLATE,THROTTLE STOP SCREW 13270C 13270-1984 1
COVER,AIR CUT VALVE 14090 14090-1931 1
CARBURETOR-ASSY 15003 15003-1627 1
TOP-CHAMBER 16005 16005-1087 1
SCREW-PILOT AIR 16014 16014-1117 1
PLUNGER 16016 16016-1106 1
JET-NEEDLE,O-8M 16017 16017-1432 1
SCREW-THROTTLE STOP 16021 16021-1217 1
VALVE-FLOAT 16030 16030-1086 1
FLOAT 16031 16031-1094 1
SCREW,5X8 16033 16033-024 1
WASHER,MAIN JET 16034 16034-001 1
VALVE,VACUUM 16126 16126-1352 1
NEEDLE-JET,4C17 16187 16187-1188 1
DIAPHRAGM,COASTING RICHER 43028 43028-1026 1
SCREW,PAN HEAD,5X10,BLACK 92009 92009-1126 4
SCREW,STARTER LEVER 92009A 92009-1823 1
SCREW,STARTER 92009B 92009-1824 1
SCREW,DRAIN 92009C 92009-1826 1
WASHER,JET NEEDLE 92022 92022-1123 1
WASHER,PLAIN,DURACON 92022A 92022-1147 1
WASHER,ADJUST SCREW 92022B 92022-1187 1
COLLAR,THROTTLE VALVE 92027 92027-1103 1
RING-SNAP 92033 92033-1290 1
CLAMP 92037 92037-1610 2
RING-O 92055 92055-1105 1
TUBE,3X5X220,OVERFLOW 92059 92059-1243 1
JET-MAIN,#A127.5 92063 92063-1100 1 (OPTION)
JET-MAIN,#A122.5 92063A 92063-1101 1 (OPTION)
JET-MAIN,#A125 92063B 92063-1102 1
JET-MAIN,#A130 92063C 92063-1103 1 (OPTION)
SCREW-PAN-CROS,4X6 220 220B0406 1
SCREW-PAN-CROS 220A 220D0410 3
SCREW-PAN-WS-CROS 223 223B0307 2
SCREW-PAN-WS-CROS 223A 223B0414 4
JET-MAIN,#A120 92063D 92063-1106 1 (OPTION)
JET,#70 92063E 92063-2059 1
JET-PILOT,#32.5 92064 92064-1230 1
PLUG,PILOT AIR SCREW 92066 92066-1501 1
SPRING,JET NEEDLE 92081 92081-1126 1
SPRING,VACUUM VALVE 92145 92145-1124 1
SPRING,STARTER LEVER 92145A 92145-1125 1
SPRING,AIR CUT VALVE 92145B 92145-1127 1
CLAMP 92170 92170-1818 1
CLAMP 92170A 92170-1936 1
CLAMP 92170B 92170-2043 1
TUBE 92191A 92191-1244 1
TUBE,5X8X300 92191B 92191-1245 1
WASHER,STARTER LEVER 92200 92200-1397 1
WASHER,STARTER LEVER 92200A 92200-1398 1
TUBE,L=115 92191 92191-1210 1 CNUS
TUBE,L=66.8 92191C 92191-1623 1 CA
