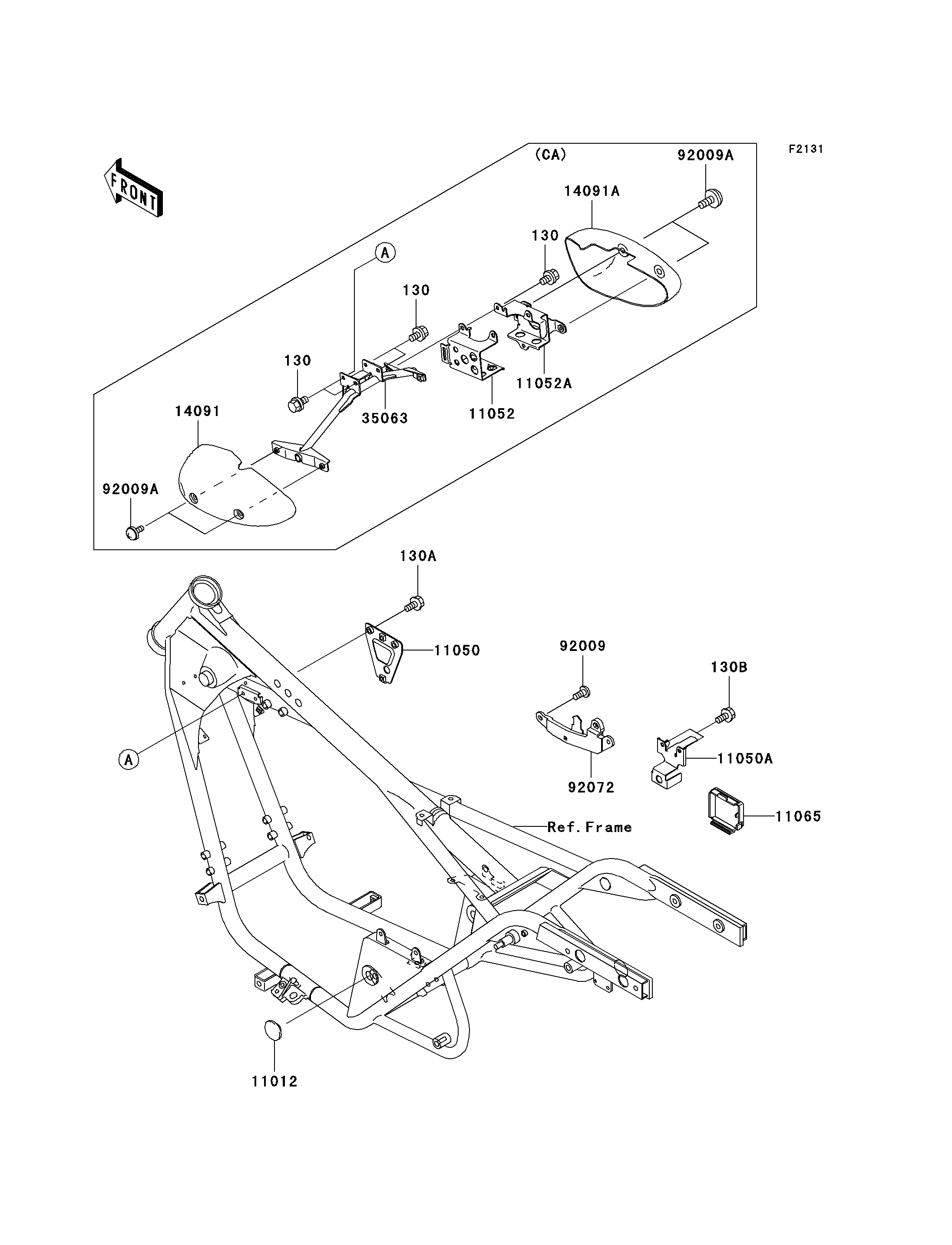

130A
130B
11012
11050
11050A
11065
92009
92072
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130A 130J0612 2
BOLT-FLANGED,6X16,BLACK 130B 130J0616 2
CAP,PIVOT 11012 11012-1821 2
BRACKET,IGNITER 11050 11050-1383 1
BRACKET,ELECTRIC 11050A 11050-1526 1
CAP,TOOL CASE 11065 11065-1068 1
SCREW,6X16 92009 92009-1621 2
BAND 92072 92072-1348 1
