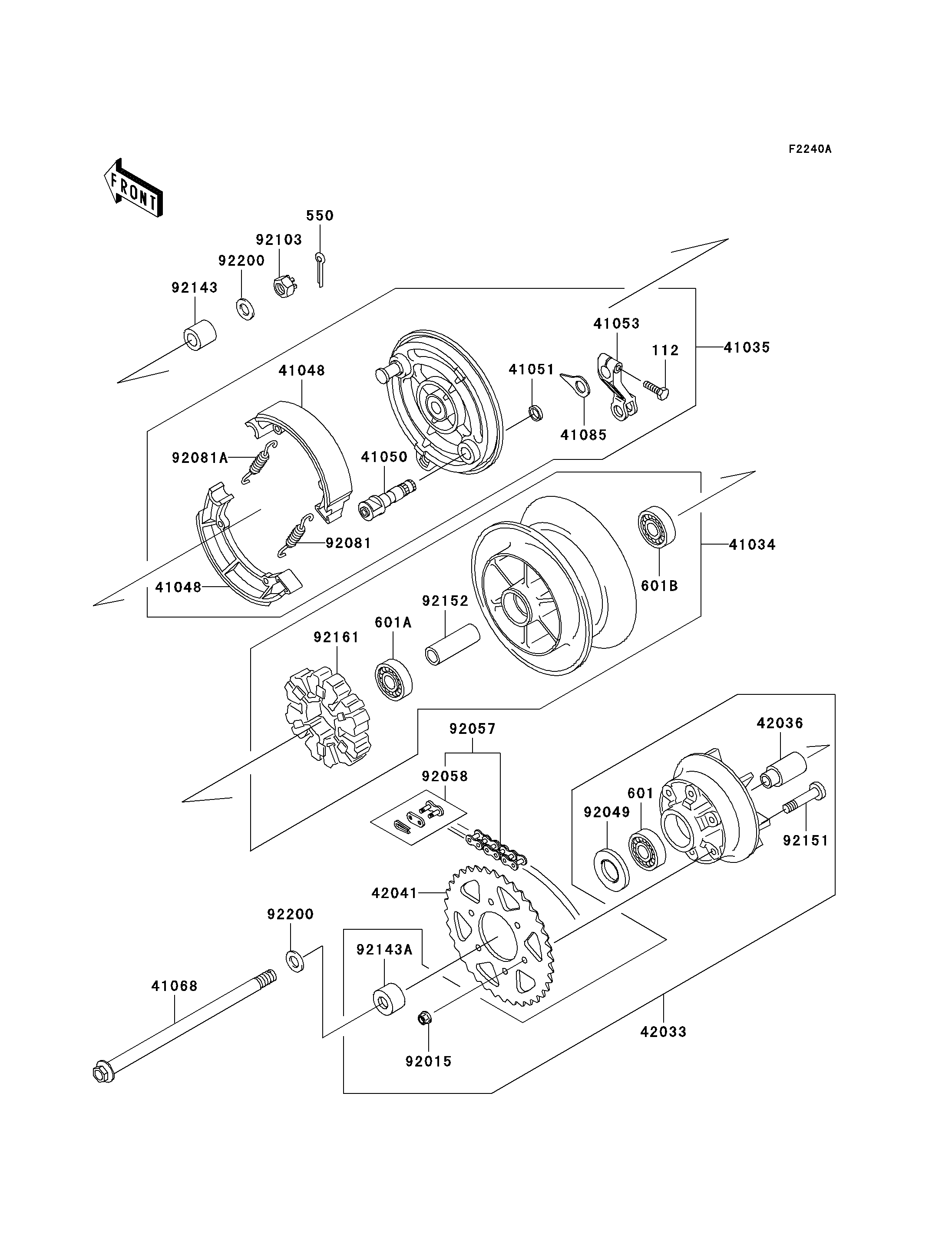

2005 Eliminator 125 - Rear Wheel/Chain(A7/A8)

DOWNLOAD PDF
SELECT A NEW PART
112
550
601
601A
601B
41034
41035
41048
41048
41050
41051
41053
41068
41085
42033
42036
42041
92015
92049
92057
92058
92081
92081A
92103
92143
92143A
92151
92152
92161
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X22 112 112P0622 1
PIN-COTTER,4X35 550 550S4035 1
BEARING-BALL,#6004UUC3 601 601B6004UU 1
BEARING-BALL 601A 601B6202UU 1
BEARING-BALL,#6302UU 601B 601B6302UU 1
DRUM-ASSY,REAR BRAKE 41034 41034-1318 1
PANEL-ASSY-BRAKE,RR 41035 41035-0007 1
SHOE-BRAKE 41048 41048-1076 2
CAM-BRAKE 41050 41050-0004 1
SEAL,BRAKE CAM 41051 41051-001 1
LEVER-BRAKE CAM 41053 41053-0001 1
AXLE,RR 41068 41068-1392 1
INDICATOR 41085 41085-0002 1
COUPLING-ASSY,RR HUB 42033 42033-1202 1
SLEEVE,RR HUB COUPLING 42036 42036-030 1
SPROCKET-HUB,46T 42041 42041-1534 1
NUT,8MM 92015 92015-1432 6
SEAL-OIL,KCY26X42X8 92049 92049-1487 1
CHAIN,DRIVE,132L 92057 92057-1485 1
JOINT-CHAIN,DRIVE 92058 92058-1080 1
SPRING,BRAKE SHOE 92081 92081-1550 1
SPRING,BRAKE SHOE 92081A 92081-1766 1
NUT,CASTLE,14MM 92103 92103-006 1
COLLAR,RR AXLE,L=34.5 92143 92143-1950 1
COLLAR,RR HUB COUPLING,L=20 92143A 92143-1951 1
BOLT,8X41 92151 92151-1320 6
COLLAR,REAR BRAKE DRUM,L=100 92152 92152-1289 1
DAMPER,REAR HUB SHOCK 92161 92161-1327 1
WASHER,15X30X3.2 92200 92200-1366 2
