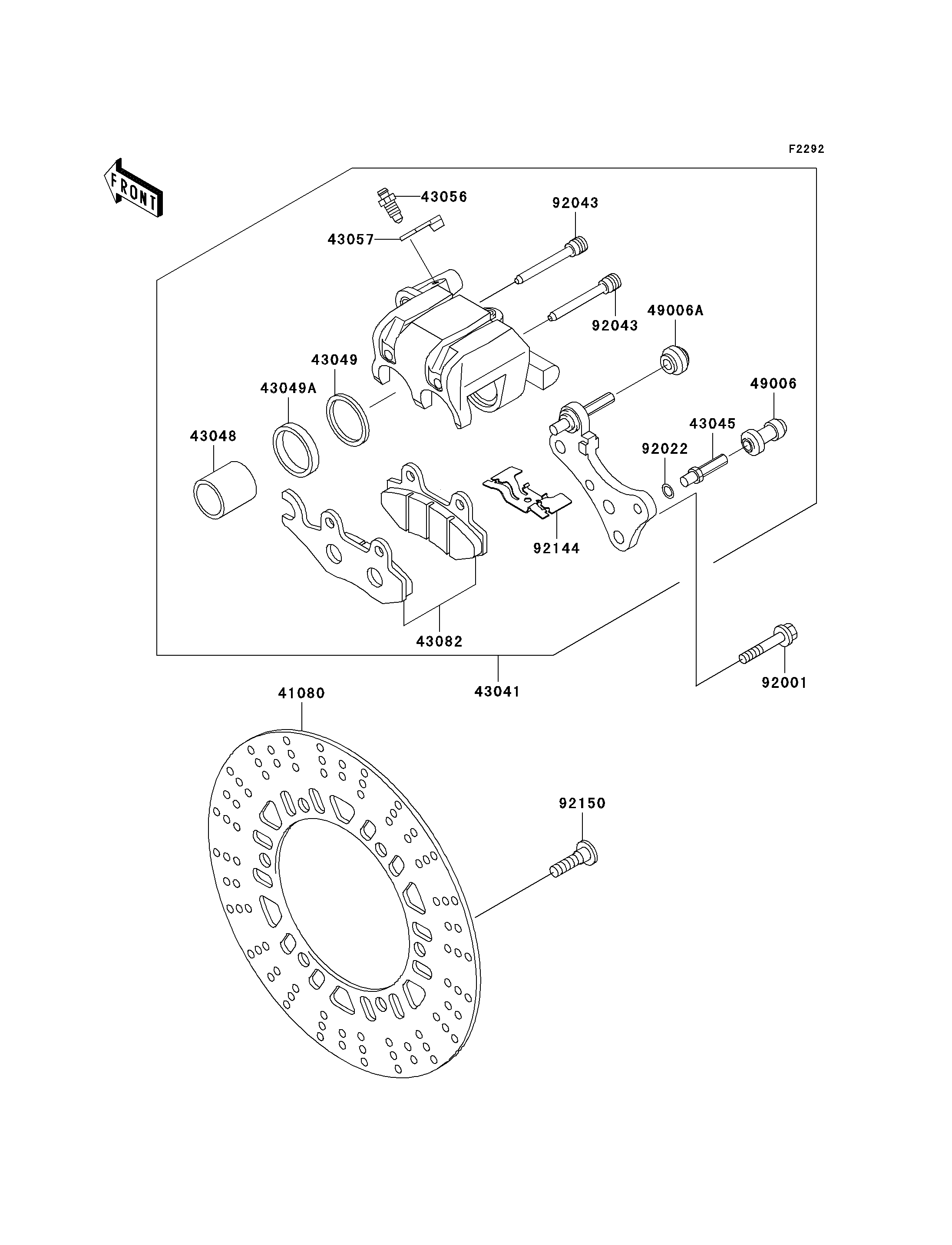

2001 Eliminator 125 - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
41080
43041
43045
43048
43049
43049A
43056
43057
43082
49006
49006A
92001
92022
92043
92043
92144
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISC,FR 41080 41080-1451 1
CALIPER-ASSY,FR 43041 43041-1695 1
SHAFT-CALIPER 43045 43045-1010 1
PISTON-CALIPER 43048 43048-1068 2
PACKING,PISTON SEAL 43049 43049-1060 2
PACKING,PISTON SEAL 43049A 43049-1061 2
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
PAD-ASSY-BRAKE 43082 43082-1238 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
BOLT,FLANGED,8X36 92001 92001-1041 2
WASHER,WAVE 92022 92022-1373 1
PIN,HANGER 92043 92043-1416 2
SPRING,PAD 92144 92144-1557 1
BOLT,8X25 92150 92150-1858 6
