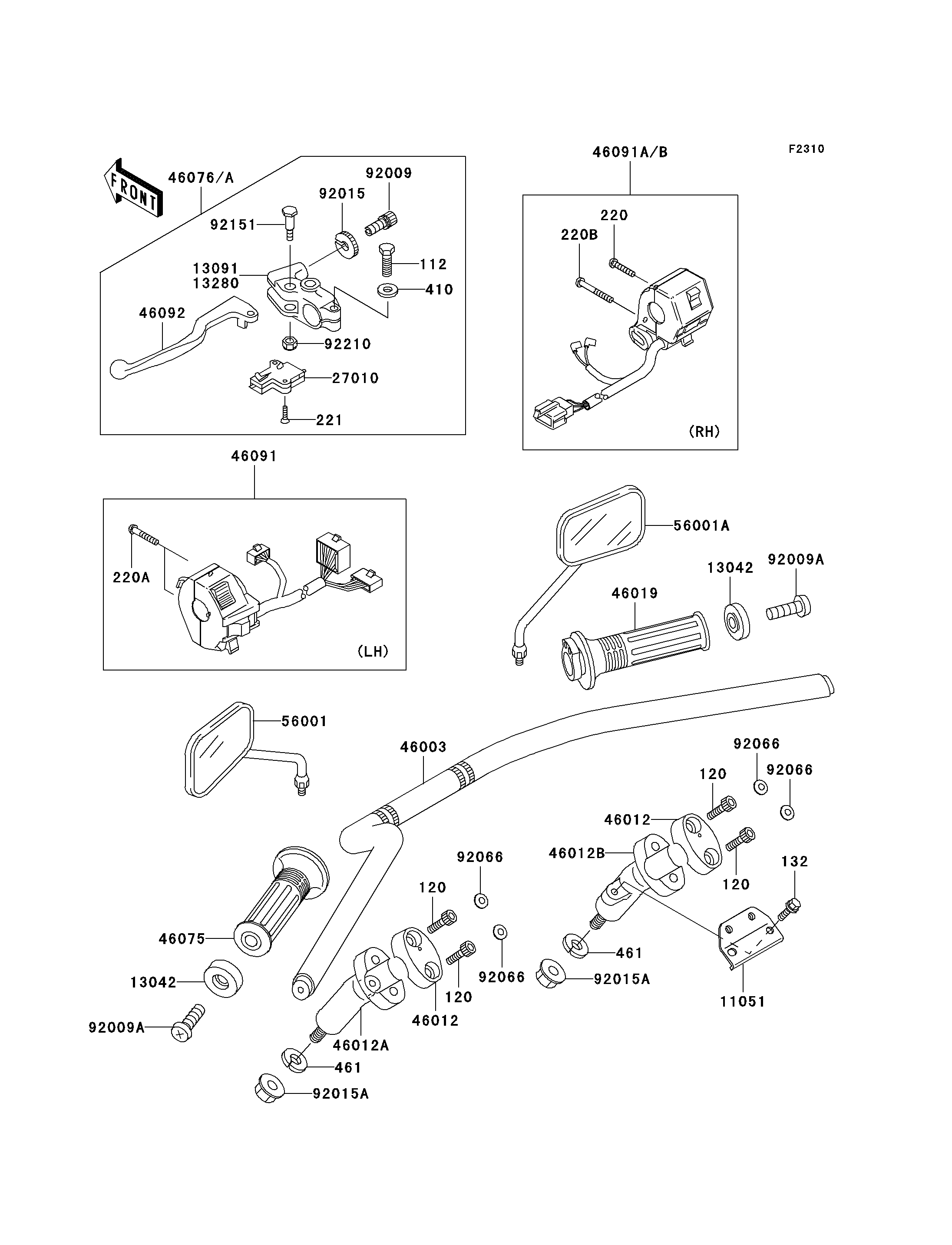

2001 Eliminator 125 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
112
120
120
120
120
132
220
220A
220B
221
410
461
461
11051
13042
13042
13091
27010
46003
46012
46012
46012A
46012B
46019
46075
46076
46091
46091A
46092
56001
56001A
92009
92009A
92009A
92015
92015A
92015A
92066
92066
92066
92066
92151
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112J0622 1
BOLT-SOCKET,8X30,BLACK 120 120S0830 4
BOLT-FLANGED-SMALL 132 132E0616 2
SCREW-PAN-CROS 220 220C0525 1
SCREW-PAN-CROS 220A 220C0530 2
SCREW-PAN-CROS 220B 220C0540 1
SCREW-CSK-CROS 221 221C0316 2
WASHER-PLAIN-SMALL,6MM,BLACK 410 410F0600 1
WASHER-SPRING,10MM 461 461F1000 2
BRACKET 11051 11051-1679 1
WEIGHT,HANDLE 13042 13042-1126 2
HOLDER,CLUTCH LEVER 13091 13091-1272 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
HANDLE 46003 46003-1555 1
HOLDER-HANDLE,UPP 46012 46012-1316 2
HOLDER-HANDLE,LWR,LH 46012A 46012-1324 1
HOLDER-HANDLE,LWR,RH 46012B 46012-1325 1
GRIP-ASSY,THROTTLE 46019 46019-1107 1
GRIP,LH 46075 46075-1080 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-1222 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1768 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-1769 1
LEVER-GRIP,CLUTCH 46092 46092-1206 1
MIRROR-ASSY,LH 56001 56001-1327 1
MIRROR-ASSY,RH 56001A 56001-1328 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
SCREW,8X20 92009A 92009-1484 2
NUT,CABLE ADJUST LOCK,8MM,BLK 92015 92015-1197 1
NUT,CAP,10MM 92015A 92015-1961 2
PLUG 92066 92066-1277 4
BOLT,LEVER SET 92151 92151-1986 1
NUT,LOCK,6MM 92210 92210-0006 1
