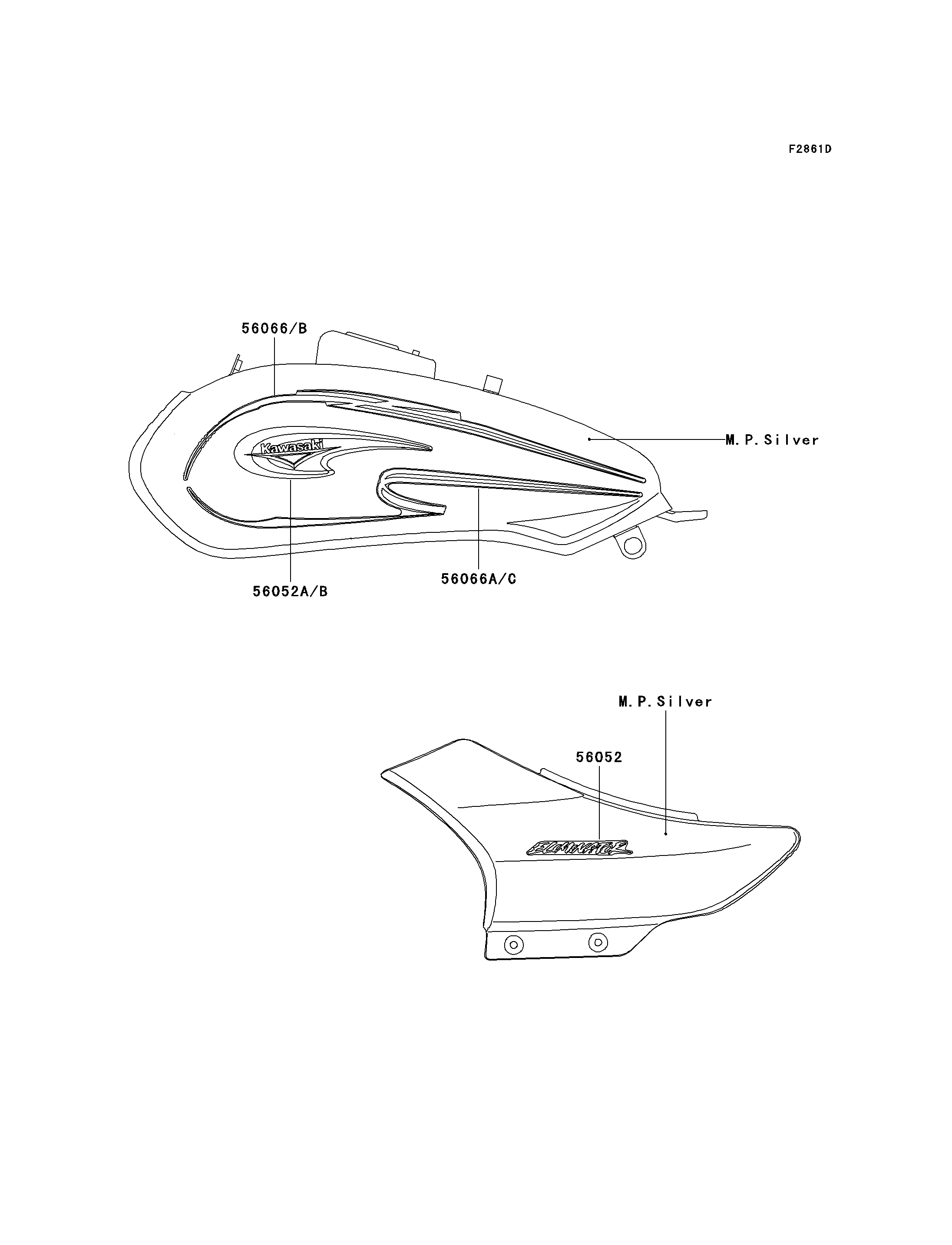

56052
56052A
56052B
56066
56066A
56066B
56066C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SIDE COVER,ELIMINATOR 56052 56052-0058 2
MARK,FUEL TANK,LH 56052A 56052-1150 1
MARK,FUEL TANK,RH 56052B 56052-1151 1
PATTERN,FUEL TANK,UPP,LH 56066 56066-1293 1
PATTERN,FUEL TANK,LWR,LH 56066A 56066-1294 1
PATTERN,FUEL TANK,UPP,RH 56066B 56066-1295 1
PATTERN,FUEL TANK,LWR,RH 56066C 56066-1296 1
