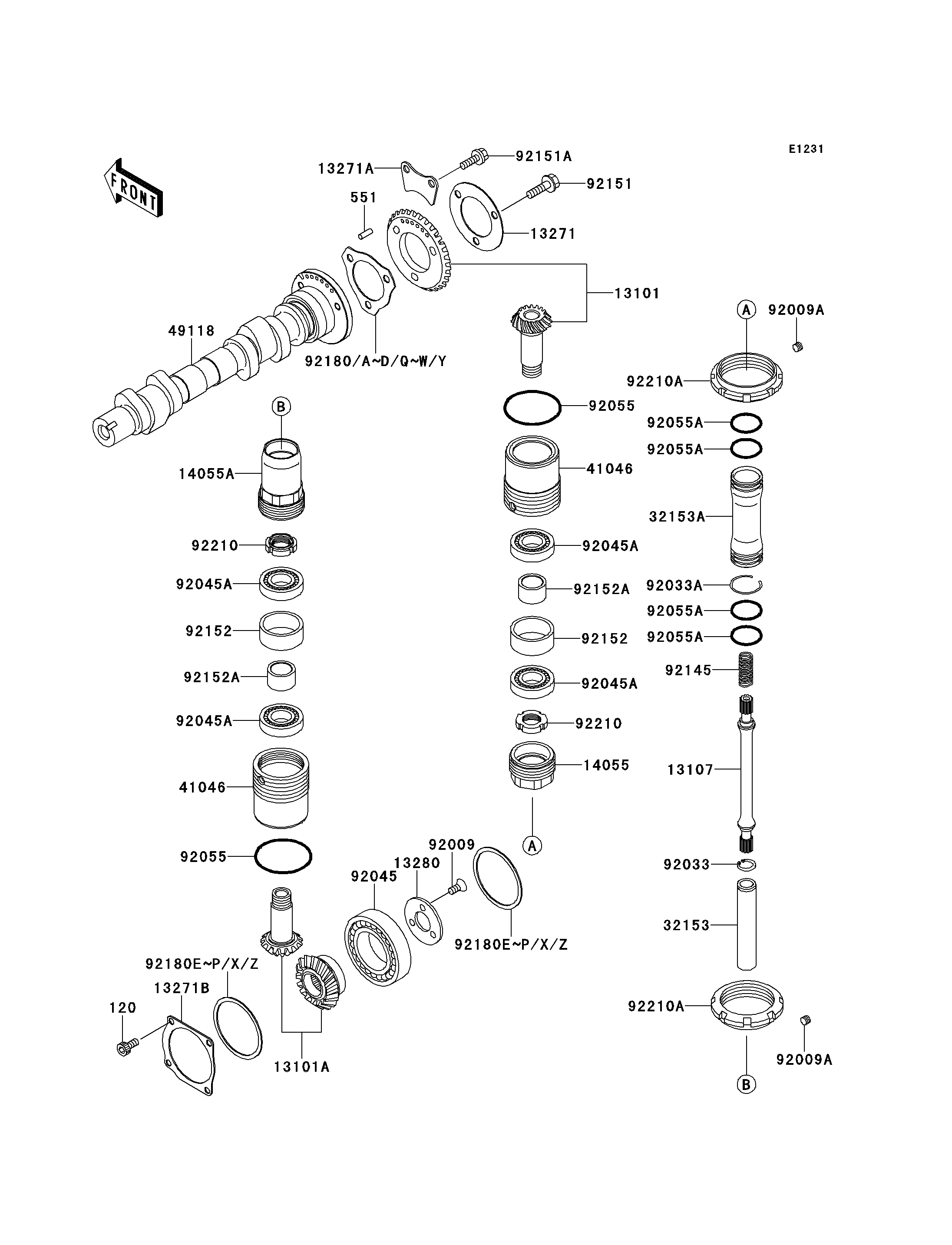

2000 W650 - Camshaft(s)/Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
13101
13101
13101A
13101A
13107
13107
13271
13271
13271A
13271A
13271B
13271B
13280
13280
14055
14055
14055A
14055A
32153
32153
32153A
32153A
41046
41046
41046
41046
49118
49118
92009
92009
92009A
92009A
92009A
92009A
92033
92033
92033A
92033A
92045
92045
92045A
92045A
92045A
92045A
92045A
92045A
92045A
92045A
92055
92055
92055
92055
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92055A
92145
92145
92151
92151
92151A
92151A
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
92180D
92180D
92180E
92180E
92180E
92180E
92180F
92180F
92180F
92180F
92180G
92180G
92180G
92180G
92180H
92180H
92180H
92180H
92180I
92180I
92180I
92180I
92180J
92180J
92180J
92180J
92180K
92180K
92180K
92180K
92180L
92180L
92180L
92180L
92180M
92180M
92180M
92180M
120
120
551
551
92180N
92180N
92180N
92180N
92180O
92180O
92180O
92180O
92180P
92180P
92180P
92180P
92180Q
92180Q
92180R
92180R
92180S
92180S
92180T
92180T
92180U
92180U
92180V
92180V
92180W
92180W
92180X
92180X
92180X
92180X
92180Y
92180Y
92180Z
92180Z
92180Z
92180Z
92210
92210
92210
92210
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR-ASSY,CAMSHAFT 13101 13101-1288 1
GEAR-ASSY,CRANKSHAFT 13101A 13101-1289 1
SHAFT 13107 13107-1424 1
PLATE,PIN 13271 13271-1190 1
PLATE,CAMSHAFT BEARING 13271A 13271-1191 1
PLATE,BEARING 13271B 13271-1192 1
HOLDER,BEARING 13280 13280-1123 1
CASE-GEAR 14055 14055-1145 1
CASE-GEAR 14055A 14055-1146 1
PIPE 32153 32153-1096 1
PIPE 32153A 32153-1097 1
HOUSING-BEARING 41046 41046-1100 2
CAMSHAFT-COMP 49118 49118-1184 1
SCREW,5X10 92009 92009-1828 3
SCREW,NUT LOCK 92009A 92009-1883 2
RING-SNAP 92033 92033-1306 1
RING-SNAP 92033A 92033-1307 1
BEARING-BALL,6907C2 92045 92045-1373 1
BEARING-BALL,6003SH2-T2 92045A 92045-1383 4
RING-O,CAMSHAFT BEVEL GEAR 92055 92055-1593 2
RING-O,22.1X1.9 92055A 92055-1617 4
SPRING 92145 92145-1285 1
BOLT,6X14 92151 92151-1476 3
BOLT,6X14 92151A 92151-1647 2
COLLAR 92152 92152-1150 2
COLLAR 92152A 92152-1151 2
SHIM,T=0.70 92180 92180-1279 1
SHIM,T=0.10 92180A 92180-1280 AR
SHIM,T=0.15 92180B 92180-1281 AR
SHIM,T=0.20 92180C 92180-1282 AR
SHIM,T=0.30 92180D 92180-1283 AR
SHIM,T=1.00 92180E 92180-1284 2
SHIM,T=0.10 92180F 92180-1285 AR
SHIM,T=0.15 92180G 92180-1286 AR
SHIM,T=0.20 92180H 92180-1287 AR
SHIM,T=0.30 92180I 92180-1288 AR
SHIM,T=0.40 92180J 92180-1289 AR
SHIM,T=0.50 92180K 92180-1290 AR
SHIM,T=0.60 92180L 92180-1291 AR
SHIM,T=0.70 92180M 92180-1292 AR
BOLT-SOCKET 120 120S0510 4
PIN-DOWEL 551 551A0412 1
SHIM,T=0.80 92180N 92180-1293 AR
SHIM,T=0.90 92180O 92180-1294 AR
SHIM,T=1.20 92180P 92180-1296 AR
SHIM,T=0.40 92180Q 92180-1299 AR
SHIM,T=0.50 92180R 92180-1300 AR
SHIM,T=0.60 92180S 92180-1301 AR
SHIM,T=0.80 92180T 92180-1302 AR
SHIM,T=0.90 92180U 92180-1303 AR
SHIM,T=1.00 92180V 92180-1304 AR
SHIM,T=0.08 92180W 92180-1305 AR
SHIM,T=0.08 92180X 92180-1306 AR
SHIM,T=0.13 92180Y 92180-1323 AR
SHIM,T=0.13 92180Z 92180-1324 AR
NUT,BEVEL GEAR 92210 92210-1175 2
NUT,BEVEL GEAR HOUSING 92210A 92210-1176 2
