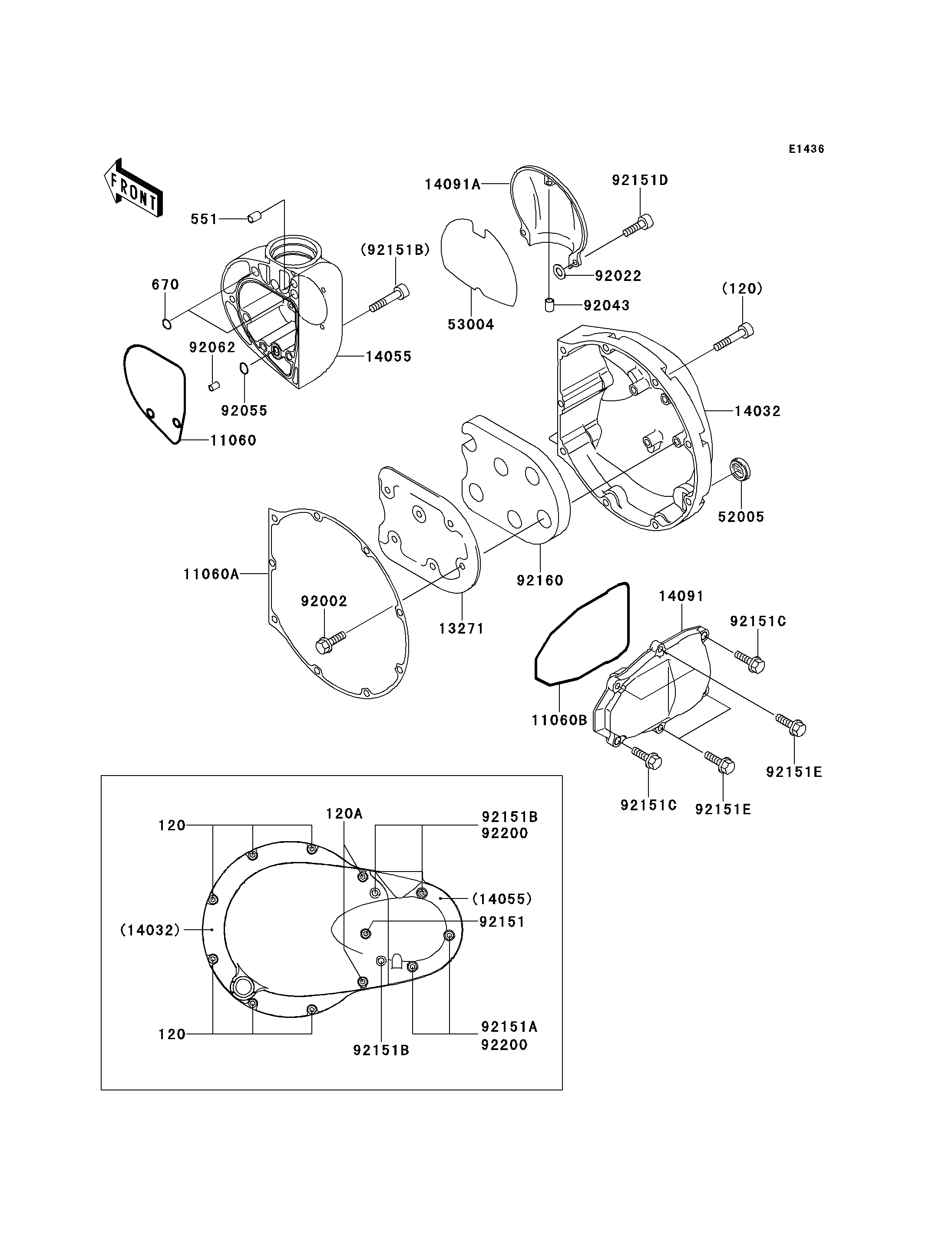

2000 W650 - Right Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
120A
551
670
11060
11060A
11060B
13271
14032
14055
14091
14091A
52005
53004
92002
92022
92043
92055
92062
92151
92151A
92151B
92151B
92151C
92151C
92151D
92151E
92151E
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET 120 120R0625 6
BOLT-SOCKET 120A 120R0650 2
PIN-DOWEL 551 551A0820 1
O RING,7MM 670 670D1507 2
GASKET,GEAR CASE 11060 11060-1890 1
GASKET,CLUTCH COVER 11060A 11060-1891 1
GASKET,KICK COVER 11060B 11060-1896 1
PLATE,SOUND ARRESTER 13271 13271-1215 1
COVER-CLUTCH 14032 14032-1495 1
CASE-GEAR 14055 14055-1141 1
COVER,KICK 14091 14091-1080 1
COVER,BEVEL GEAR 14091A 14091-1287 1
GAUGE,OIL LEVEL 52005 52005-1009 1
MAT,BEVEL COVER 53004 53004-1124 1
BOLT,6X10 92002 92002-1541 6
WASHER,5.2X10X1.5 92022 92022-1023 2
PIN,6X12 92043 92043-1606 1
RING-O,12.3X1.9 92055 92055-1594 1
NOZZLE,6X8,BLACK 92062 92062-1079 1
BOLT,SOCKET,6X70 92151 92151-1495 1
BOLT,SOCKET,6X55 92151A 92151-1496 2
BOLT,SOCKET,6X60 92151B 92151-1497 3
BOLT 92151C 92151-1499 2
BOLT,SOCKET,5X14 92151D 92151-1581 2
BOLT,6X22 92151E 92151-1642 4
DAMPER,SOUND ARRESTER 92160 92160-1996 1
WASHER,6.8X11.5X1.0 92200 92200-1461 4
