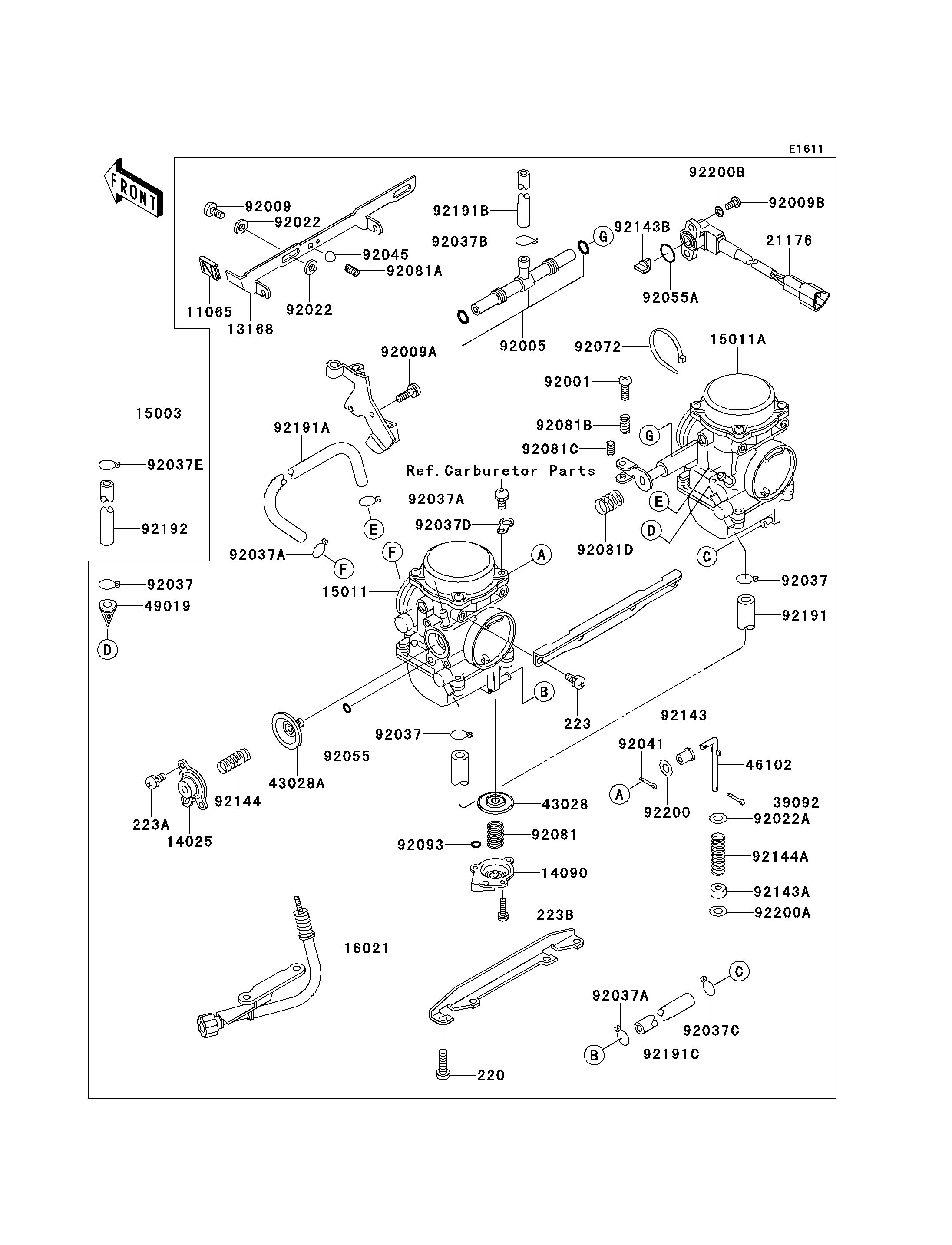

2000 W650 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
13168
13168
14025
14025
14090
14090
15003
15003
15011
15011
15011A
15011A
16021
16021
21176
21176
39092
39092
43028
43028
43028A
43028A
46102
46102
49019
49019
92001
92001
92005
92005
92009
92009
92009A
92009A
92009B
92009B
92022
92022
92022
92022
92022A
92022A
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92037B
92037B
92037C
92037C
92037D
92037D
92037E
92037E
92041
92041
92045
92045
92055
92055
92055A
92055A
92072
92072
92081
92081
92081A
92081A
92081B
92081B
92081C
92081C
92081D
92081D
92093
92093
92143
92143
92143A
92143A
220
220
223
223
223A
223A
223B
223B
92143B
92143B
92144
92144
92144A
92144A
92191
92191
92191A
92191A
92191B
92191B
92191C
92191C
92192
92192
92200
92200
92200A
92200A
92200B
92200B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STARTER LEVER 11065 11065-1092 1
LEVER,STARTER 13168 13168-1679 1
COVER,AIR CUT VALVE 14025 14025-1903 1
COVER,ACCELERATOR 14090 14090-1635 1
CARBURETOR-ASSY 15003 15003-1594 1
CARBURETOR,LH 15011 15011-1795 1
CARBURETOR,RH 15011A 15011-1796 1
SCREW-THROTTLE STOP 16021 16021-1228 1
SENSOR 21176 21176-1101 1
PIN-HAIR 39092 39092-1058 1
DIAPHRAGM 43028 43028-1077 1
DIAPHRAGM,4.9MM,AIR CUT VALVE 43028A 43028-1084 1
ROD 46102 46102-1434 1
FILTER-FUEL 49019 49019-1092 1
BOLT,THROTTLE ADJUST 92001 92001-1998 1
FITTING 92005 92005-1326 1
SCREW 92009 92009-1262 2
SCREW,5X10 92009A 92009-1365 1
SCREW 92009B 92009-1781 2
WASHER,6.1X11X0.8,POLYACETAL 92022 92022-1199 4
WASHER,PLAIN,STOP SPRING 92022A 92022-1480 1
CLAMP,FUEL TUBE 92037 92037-1075 3
CLAMP,TUBE 92037A 92037-1142 3
CLAMP,FUEL TAP HOSE 92037B 92037-1185 1
CLAMP,TUBE 92037C 92037-1396 1
CLAMP,HOSE 92037D 92037-1969 1
CLAMP,TUBE 92037E 92037-1531 1
COTTER 92041 92041-1061 1
BALL,BRASS,SHAFT STOP 92045 92045-1104 1
RING-O 92055 92055-1245 1
RING-O,SENSOR 92055A 92055-1574 1
BAND,L=100 92072 92072-1250 1
SPRING,DIAPHRAGM 92081 92081-1092 1
SPRING,SHAFT STOP 92081A 92081-1619 1
SPRING,THROTTLE ADJUST UPP 92081B 92081-1620 1
SPRING,THROTTLE ADJUST LWR 92081C 92081-1621 1
SPRING 92081D 92081-1876 1
SEAL,"U"RING 92093 92093-1046 1
COLLAR 92143 92143-1790 1
COLLAR 92143A 92143-1791 1
SCREW-PAN-CROS,6X16 220 220B0616 4
SCREW-PAN-WS-CROS 223 223C0510 4
SCREW-PAN-WS-CROS 223A 223D0408 2
SCREW-PAN-WS-CROS 223B 223D0410 3
COLLAR 92143B 92143-1907 1
SPRING,AIR CUT VALVE 92144 92144-1072 1
SPRING 92144A 92144-1886 1
TUBE,FUEL 92191 92191-1410 1
TUBE 92191A 92191-1411 1
TUBE,7X11X370 92191B 92191-1412 1
TUBE 92191C 92191-1443 1
TUBE,L=180 92192 92192-1110 1
WASHER 92200 92200-1274 1
WASHER 92200A 92200-1275 1
WASHER 92200B 92200-1369 2
