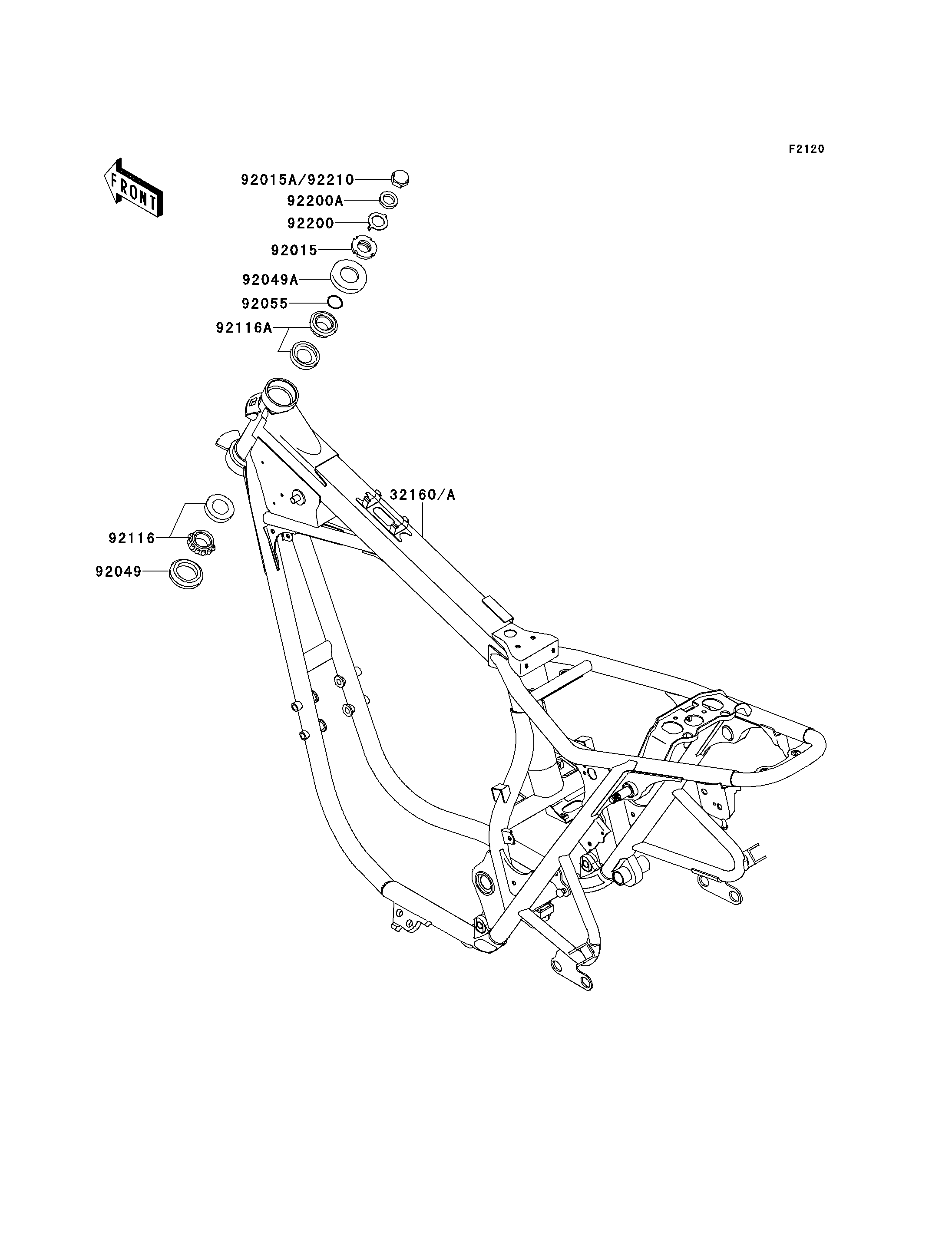

32160
92015
92015A
92049
92049A
92055
92116
92116A
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP 32160 32160-1670 1
NUT,25MM,T=12 92015 92015-1546 1
NUT,CAP,18MM 92015A 92015-1736 1
SEAL-OIL,XMHE36X52X4J 92049 92049-1162 1
SEAL-OIL,STEERING STEM 92049A 92049-1214 1
RING-O,ID=24.5 92055 92055-1459 1
BEARING-ROLLER,HR320/28XJ 92116 92116-1009 1
BEARING-ROLLER,HI-CAP32005JR-1 92116A 92116-1056 1
WASHER,CLAW,18.5X30X2.3 92200 92200-1357 1
WASHER,19X32X2.6 92200A 92200-1489 1
