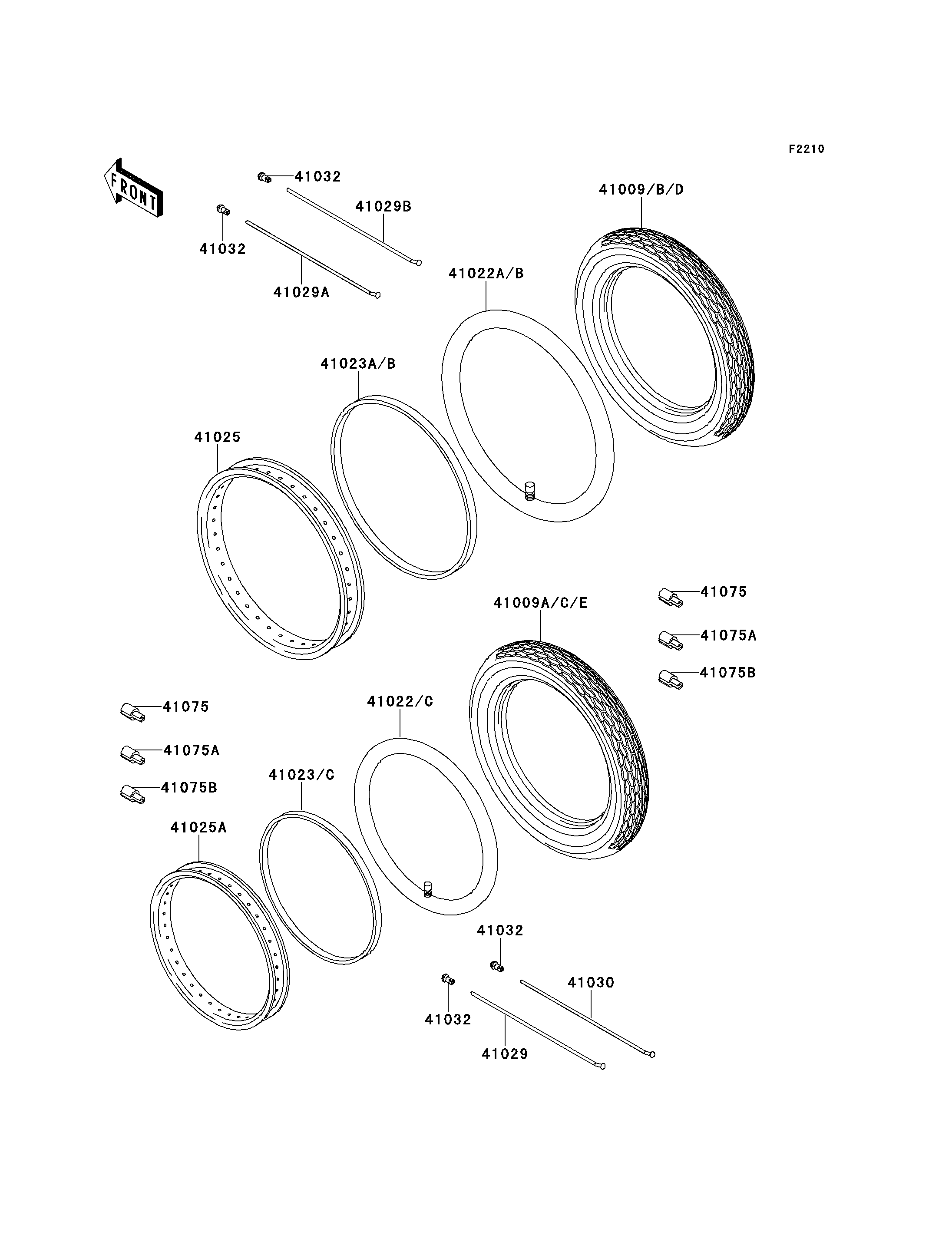

Parts Diagrams |
41009
41009A
41009B
41009C
41022
41022A
41022B
41022C
41023
41023A
41023B
41023C
41025
41025A
41029
41029A
41029B
41030
41032
41032
41032
41032
41075
41075
41075A
41075A
41075B
41075B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TIRE,FR,100/90-19 57H,AC03(BS) | 41009 | 41009-1239 | 1 | ||
TIRE,RR,130/80-18 66H,AC04(BS) | 41009A | 41009-1240 | 1 | ||
TIRE,FR,100/90-19 57H,TT100GPG | 41009B | 41009-1351 | 1 | ||
TIRE,RR,130/80-18 66H,TT100GP | 41009C | 41009-1352 | 1 | ||
TUBE-TIRE,RR,110/100-18(D) | 41022 | 41022-1120 | 1 | ||
TUBE-TIRE,100/90-19(D) | 41022A | 41022-1129 | 1 | ||
TUBE-TIRE,100/90-19(BS) | 41022B | 41022-1142 | 1 | ||
TUBE-TIRE,130/80-18 | 41022C | 41022-1214 | 1 | ||
BAND-RIM,100/100-18(D) | 41023 | 41023-1070 | 1 | ||
BAND-RIM,90.100/90-19(D) | 41023A | 41023-1074 | 1 | ||
BAND-RIM,110/90-19(BS) | 41023B | 41023-1081 | 1 | ||
BAND-RIM,4.10-18(BS) | 41023C | 41023-1086 | 1 | ||
RIM,FR,2.15X19 | 41025 | 41025-1381 | 1 | ||
RIM,RR,2.75X18 | 41025A | 41025-1382 | 1 | ||
SPOKE-INNER,RR,149MMX103D | 41029 | 41029-1300 | 18 | ||
SPOKE-INNER,FR,LH,200MMX170D | 41029A | 41029-1304 | 18 | ||
SPOKE-INNER,FR,RH,183MMX170D | 41029B | 41029-1305 | 18 | ||
SPOKE-OUTER,RR,148MMX80D | 41030 | 41030-1164 | 18 | ||
NIPPLE-SPOKE | 41032 | 41032-1075 | 72 | ||
BALANCER-WHEEL,10G | 41075 | 41075-1007 | AR | ||
BALANCER-WHEEL,20G | 41075A | 41075-1008 | AR | ||
BALANCER-WHEEL,30G | 41075B | 41075-1009 | AR |
TIRE,FR,100/90-19 57H,AC03(BS) | |
REF # | 41009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TIRE,RR,130/80-18 66H,AC04(BS) | |
REF # | 41009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TIRE,FR,100/90-19 57H,TT100GPG | |
REF # | 41009B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TIRE,RR,130/80-18 66H,TT100GP | |
REF # | 41009C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,RR,110/100-18(D) | |
REF # | 41022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,100/90-19(D) | |
REF # | 41022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,100/90-19(BS) | |
REF # | 41022B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-TIRE,130/80-18 | |
REF # | 41022C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,100/100-18(D) | |
REF # | 41023 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,90.100/90-19(D) | |
REF # | 41023A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,110/90-19(BS) | |
REF # | 41023B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND-RIM,4.10-18(BS) | |
REF # | 41023C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,FR,2.15X19 | |
REF # | 41025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RIM,RR,2.75X18 | |
REF # | 41025A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPOKE-INNER,RR,149MMX103D | |
REF # | 41029 |
---|---|
PART NUMBER | |
QUANTITY | 18 |
DESTINATION | |
REMARKS |
SPOKE-INNER,FR,LH,200MMX170D | |
REF # | 41029A |
---|---|
PART NUMBER | |
QUANTITY | 18 |
DESTINATION | |
REMARKS |
SPOKE-INNER,FR,RH,183MMX170D | |
REF # | 41029B |
---|---|
PART NUMBER | |
QUANTITY | 18 |
DESTINATION | |
REMARKS |
SPOKE-OUTER,RR,148MMX80D | |
REF # | 41030 |
---|---|
PART NUMBER | |
QUANTITY | 18 |
DESTINATION | |
REMARKS |
NIPPLE-SPOKE | |
REF # | 41032 |
---|---|
PART NUMBER | |
QUANTITY | 72 |
DESTINATION | |
REMARKS |
BALANCER-WHEEL,10G | |
REF # | 41075 |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BALANCER-WHEEL,20G | |
REF # | 41075A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BALANCER-WHEEL,30G | |
REF # | 41075B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
