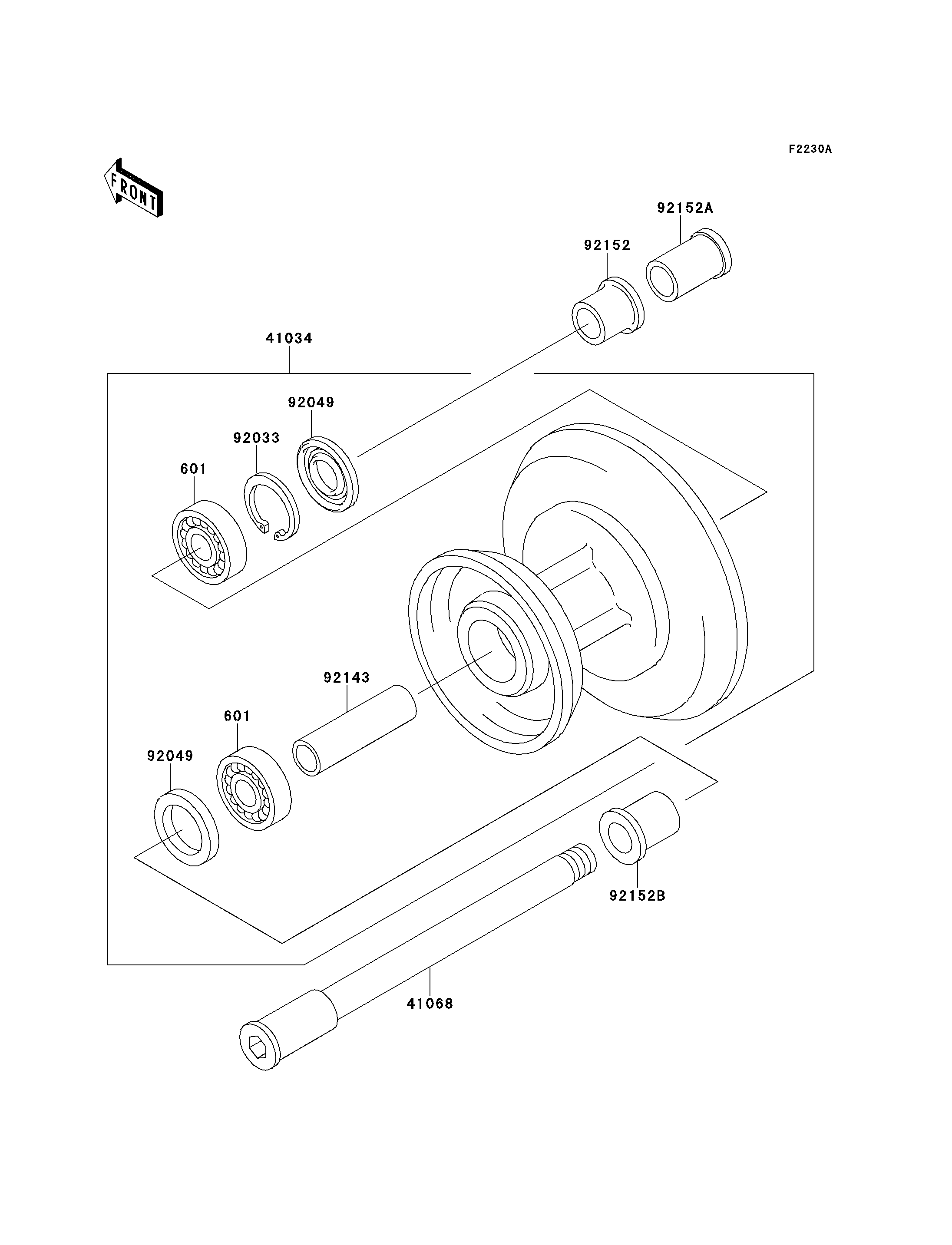

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6203UG 601 601B6203UG 2
DRUM-ASSY,FRONT BRAKE 41034 41034-1322 1
AXLE,FR 41068 41068-1431 1
RING-SNAP,40MM 92033 92033-1040 1
SEAL-OIL,AG1258AO 92049 92049-1110 2
COLLAR,17.2X25X69 92143 92143-1208 1
COLLAR,FR AXLE,RH,L=25.5 92152 92152-1160 1
COLLAR,FR AXLE NUT,L=37.5 92152A 92152-1306 1
COLLAR,FR AXLE,LH,L=31.5 92152B 92152-1307 1
