Parts Diagrams
OWNER CENTER |
![customer service agent speaking with a customer](/Content/Images/owner-header-mobile.jpg)
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

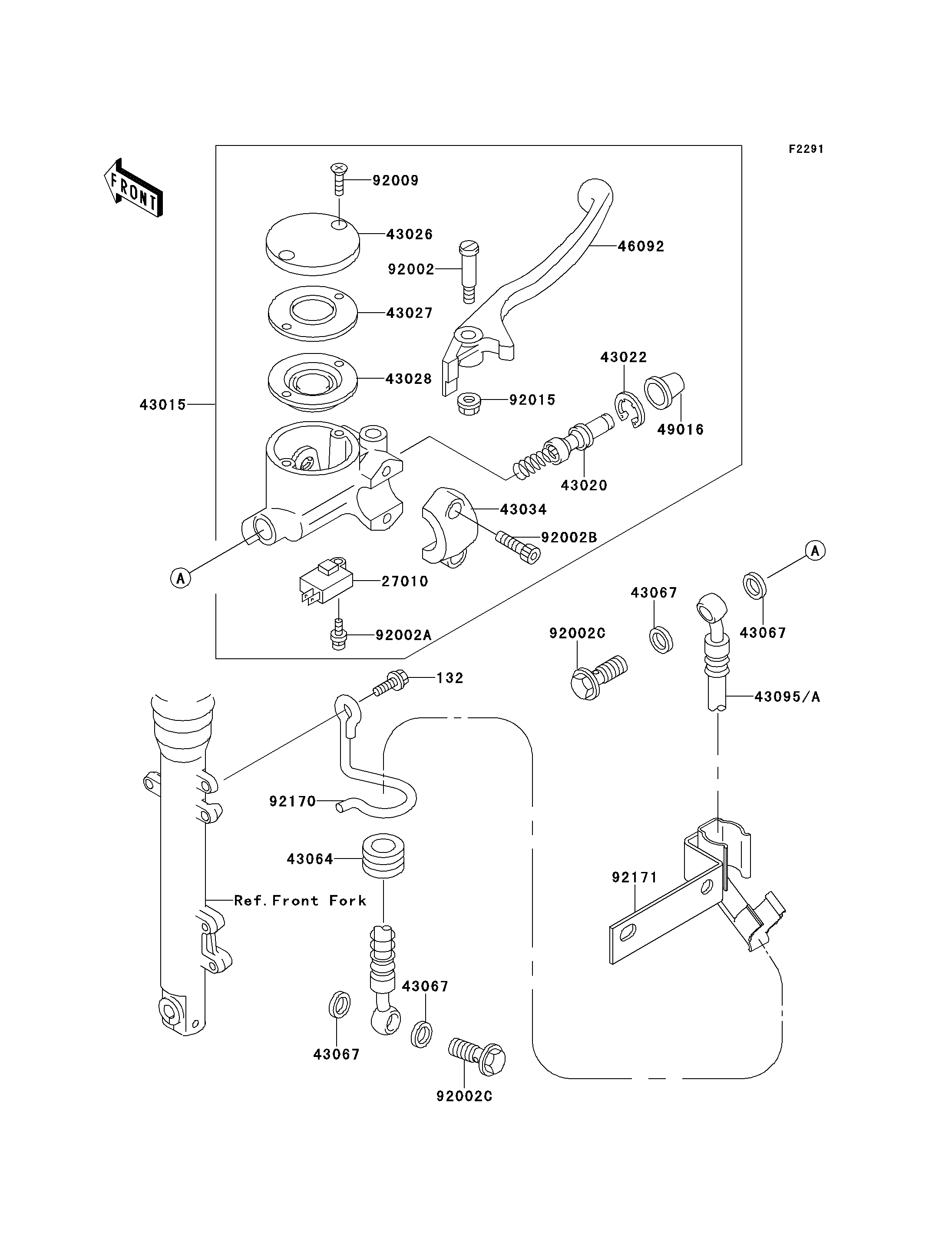

Parts Diagrams |
132
27010
43015
43020
43022
43026
43027
43028
43034
43064
43067
43067
43067
43067
43095
46092
49016
92002
92002A
92002B
92002C
92002C
92009
92015
92170
92171
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED-SMALL | 132 | 132E0612 | 1 | ||
SWITCH,BRAKE | 27010 | 27010-1170 | 1 | ||
CYLINDER-ASSY-MASTER,FR | 43015 | 43015-1643 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1098 | 1 | ||
STOPPER-BRAKE,PISTON | 43022 | 43022-1010 | 1 | ||
CAP-BRAKE | 43026 | 43026-1084 | 1 | ||
PLATE-DIAPHRAGM | 43027 | 43027-1058 | 1 | ||
DIAPHRAGM | 43028 | 43028-1087 | 1 | ||
HOLDER-BRAKE,MASTER CYLINDER | 43034 | 43034-1156 | 1 | ||
GROMMET,HOSE CLAMP | 43064 | 43064-007 | 1 | ||
WASHER,10.5X15X1.5 | 43067 | 43067-001 | 4 | ||
HOSE-BRAKE,FR | 43095 | 43095-1157 | 1 | ||
LEVER-GRIP,FRONT BRAKE | 46092 | 46092-1207 | 1 | ||
COVER-SEAL,MASTER CYLINDER | 49016 | 49016-1044 | 1 | ||
BOLT,LEVER SET,BLACK | 92002 | 92002-1322 | 1 | ||
BOLT,SCREW,4X12 | 92002A | 92002-1323 | 1 | ||
BOLT,SOCKET,6X20,BLACK | 92002B | 92002-1324 | 2 | ||
BOLT,OIL,L=23 | 92002C | 92002-1907 | 2 | ||
SCREW,4MM | 92009 | 92009-1458 | 2 | ||
NUT,FLANGED,6MM,BLACK | 92015 | 92015-1233 | 1 | ||
CLAMP,RH,HOSE | 92170 | 92170-1510 | 1 | ||
CLAMP | 92171 | 92171-1143 | 1 |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,BRAKE | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-ASSY-MASTER,FR | |
REF # | 43015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-COMP-BRAKE | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER-BRAKE,PISTON | |
REF # | 43022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BRAKE | |
REF # | 43026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-DIAPHRAGM | |
REF # | 43027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM | |
REF # | 43028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-BRAKE,MASTER CYLINDER | |
REF # | 43034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET,HOSE CLAMP | |
REF # | 43064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10.5X15X1.5 | |
REF # | 43067 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,FR | |
REF # | 43095 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-GRIP,FRONT BRAKE | |
REF # | 46092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-SEAL,MASTER CYLINDER | |
REF # | 49016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,LEVER SET,BLACK | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SCREW,4X12 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X20,BLACK | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=23 | |
REF # | 92002C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,4MM | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,FLANGED,6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,RH,HOSE | |
REF # | 92170 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
