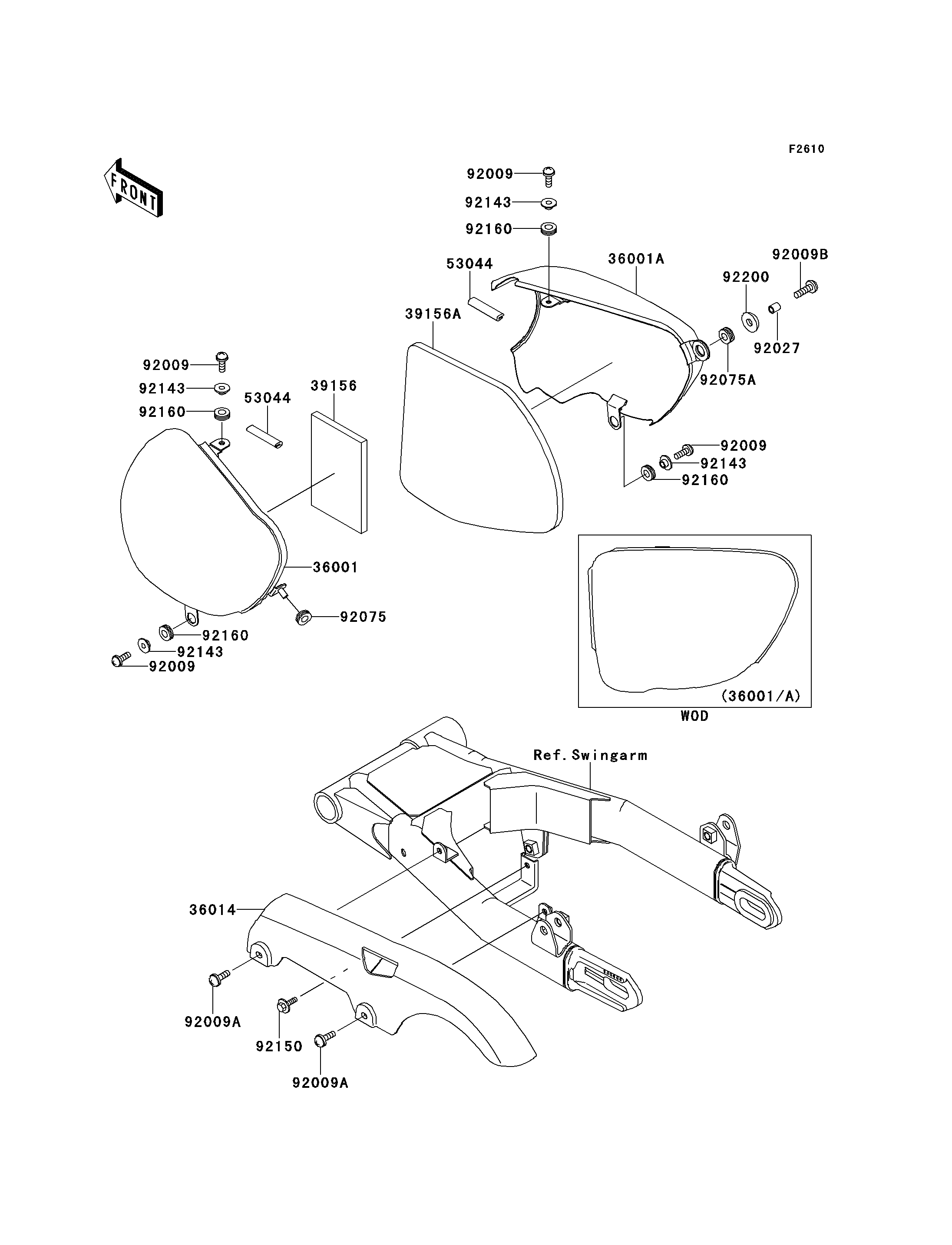

2000 W650 - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001
36001A
36014
39156
39156A
53044
53044
92009
92009
92009
92009
92009A
92009A
92009B
92027
92075
92075A
92143
92143
92143
92143
92150
92160
92160
92160
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,EBONY 36001 36001-1632-H8 1
COVER-SIDE,RH,EBONY 36001A 36001-1636-H8 1
CASE-CHAIN 36014 36014-1234 1
PAD,SIDE COVER,LH 39156 39156-1635 1
PAD,SIDE COVER,RH 39156A 39156-1636 1
TRIM,L=40 53044 53044-1320 2
SCREW,6X16 92009 92009-1621 4
SCREW,6X12 92009A 92009-1877 2
SCREW,6X20 92009B 92009-3763 1
COLLAR,6.8X10X12 92027 92027-162 1
DAMPER 92075 92075-1629 1
DAMPER 92075A 92075-1634 1
COLLAR,L=7.4 92143 92143-1019 4
BOLT,6X14 92150 92150-1133 1
DAMPER 92160 92160-1278 4
WASHER 92200 92200-1153 1
