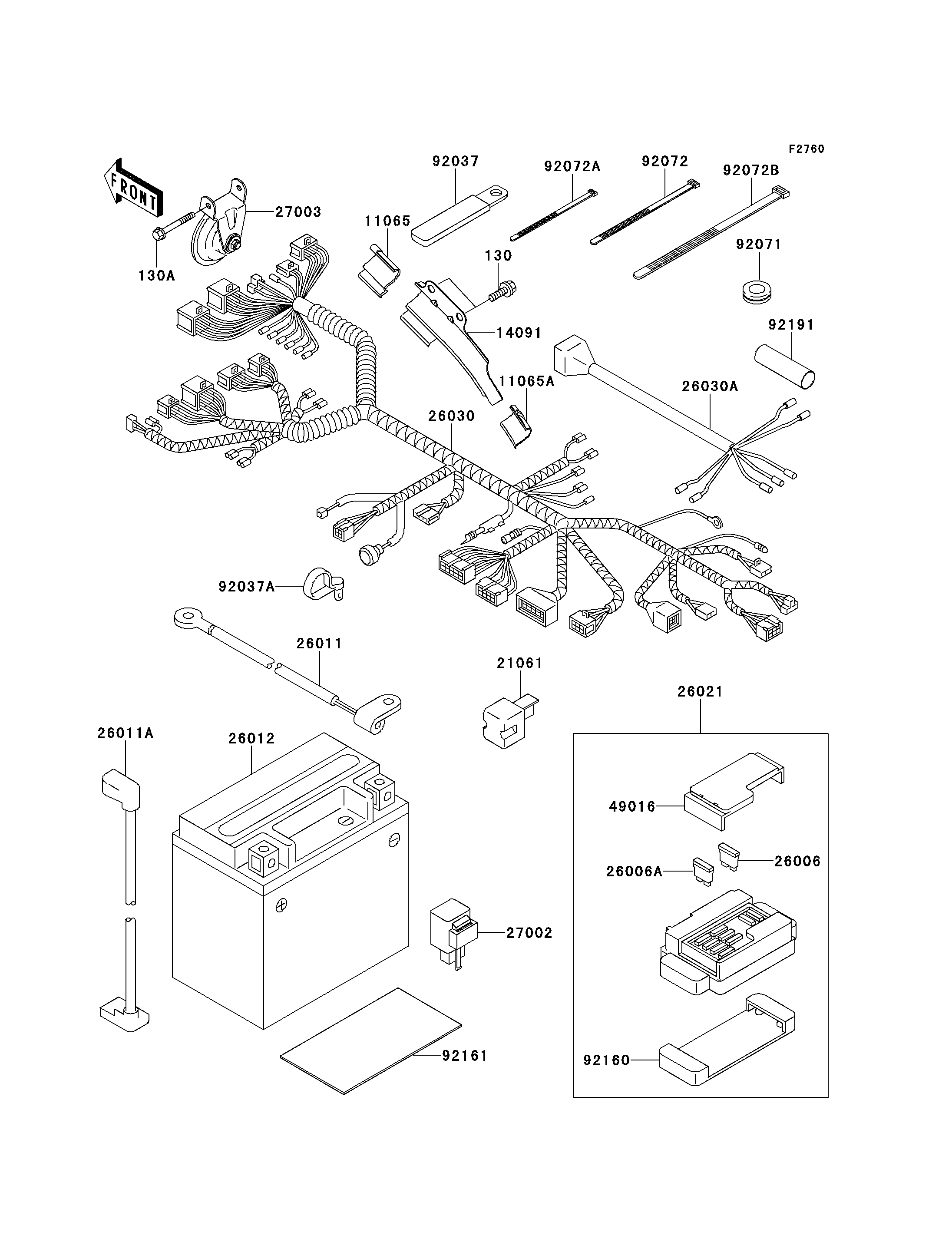

2000 W650 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11065
11065A
14091
21061
26006
26006A
26011
26011A
26012
26021
26030
26030A
27002
27003
49016
92037
92037A
92071
92072
92072A
92072B
92160
92161
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X8 130 130J0608 2
BOLT-FLANGED,6X60 130A 130J0660 1
CAP,HARNESS COVER,FR 11065 11065-1141 1
CAP,HARNESS COVER,RR 11065A 11065-1142 1
COVER,HARNESS 14091 14091-1274 1
RECTIFIER 21061 21061-1003 1
FUSE,30A-G 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 8
WIRE-LEAD,BATTERY(-) 26011 26011-1711 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1746 1
BATTERY,YTX14-BS,12V 12AH 26012 26012-1334 1
JUNCTION BOX 26021 26021-1096 1
HARNESS,MAIN 26030 26030-1648 1
HARNESS,RR 26030A 26030-1656 1
RELAY-ASSY,TURN SIGNAL 27002 27002-1101 1
HORN 27003 27003-1416 1
COVER-SEAL,FUSE 49016 49016-1177 1
CLAMP 92037 92037-1679 2
CLAMP,SPEED,L=80.5 92037A 92037-1903 2
GROMMET,13MM 92071 92071-099 2
BAND,L=250 92072 92072-1237 1
BAND,L=140 92072A 92072-1293 2
BAND,L=350 92072B 92072-1372 3
DAMPER,JUNCTION BOX 92160 92160-1650 1
DAMPER,BATTERY 92161 92161-1085 1
TUBE,25X26.6X90 92191 92191-1419 1
