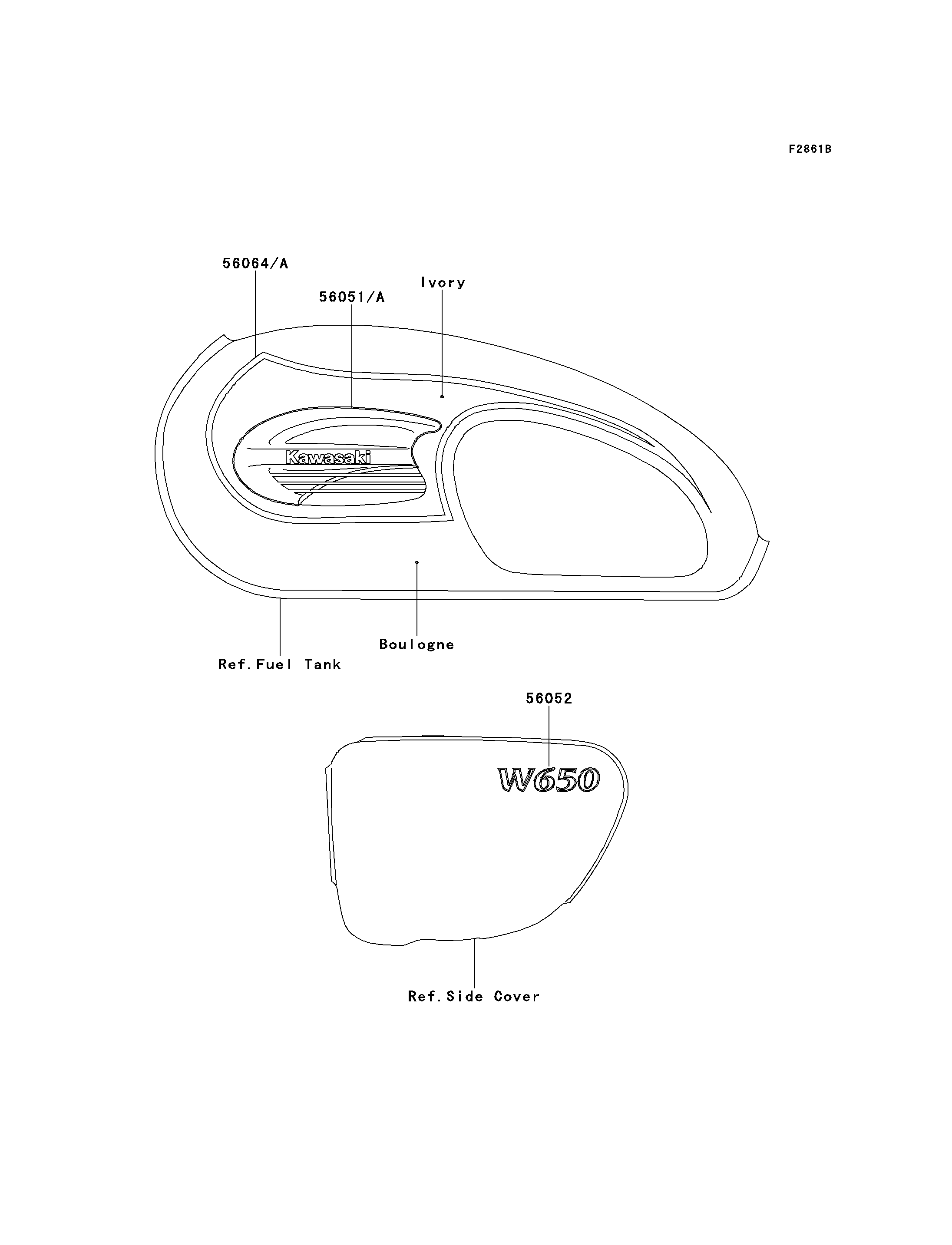

56051
56051A
56052
56064
56064A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,LH 56051 56051-1996 1
MARK,FUEL TANK,RH 56051A 56051-1997 1
MARK,SIDE COVER,W650 56052 56052-1068 2
PATTERN,FUEL TANK,LH 56064 56064-1128 1
PATTERN,FUEL TANK,RH 56064A 56064-1129 1
