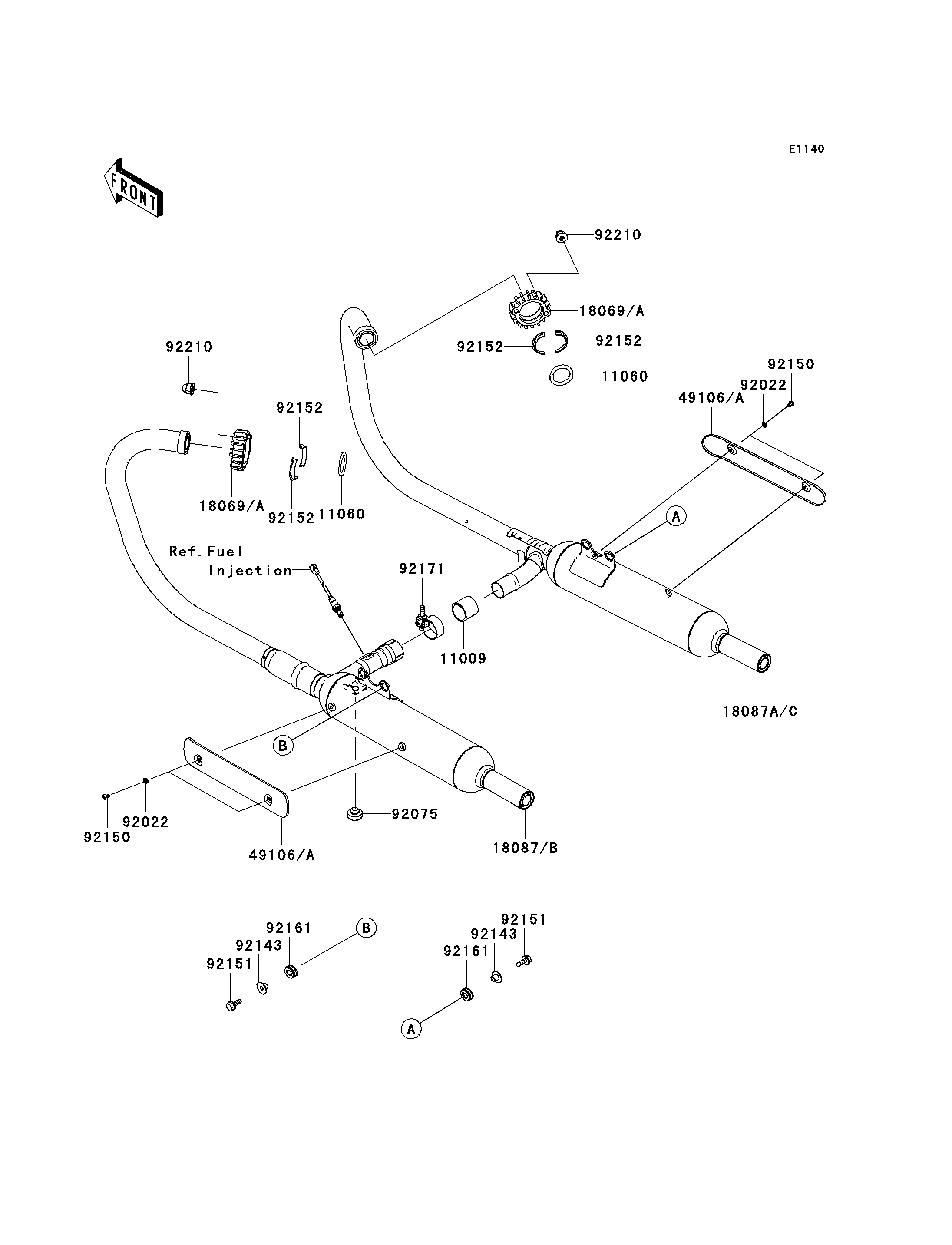

Parts Diagrams |
11009
11060
11060
18069A
18069A
18087
18087A
49106
49106
92022
92022
92075
92143
92143
92150
92150
92151
92151
92152
92152
92152
92152
92161
92161
92171
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE CONNECTING | 11009 | 11009-1667 | 1 | ||
| GASKET,EXHAUST PIPE HOLDER | 11060 | 11060-1764 | 2 | ||
| HOLDER-EXHAUST PIPE | 18069A | 18069-1150 | 2 | ||
| MUFFLER,LH | 18087 | 18087-0274 | 1 | ||
| MUFFLER,RH | 18087A | 18087-0275 | 1 | ||
| COVER-MUFFLER | 49106 | 49106-0114 | 2 | ||
| WASHER,6.5X11.5X2 | 92022 | 92022-1506 | 4 | ||
| DAMPER | 92075 | 92075-1045 | 1 | ||
| COLLAR | 92143 | 92143-1753 | 4 | ||
| BOLT,6X10 | 92150 | 92150-1577 | 4 | ||
| BOLT,8X22 | 92151 | 92151-1926 | 4 | ||
| COLLAR,EXHAUST PIPE | 92152 | 92152-1149 | 4 | ||
| DAMPER | 92161 | 92161-0992 | 4 | ||
| CLAMP,CHAMBER-EX PIPE | 92171 | 92171-0061 | 1 | ||
| NUT,CAP,8MM | 92210 | 92210-1132 | 4 |
| GASKET,EXHAUST PIPE CONNECTING | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE HOLDER | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOLDER-EXHAUST PIPE | |
| REF # | 18069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MUFFLER,LH | |
| REF # | 18087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER,RH | |
| REF # | 18087A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER | |
| REF # | 49106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X11.5X2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X22 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,EXHAUST PIPE | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CHAMBER-EX PIPE | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,8MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
