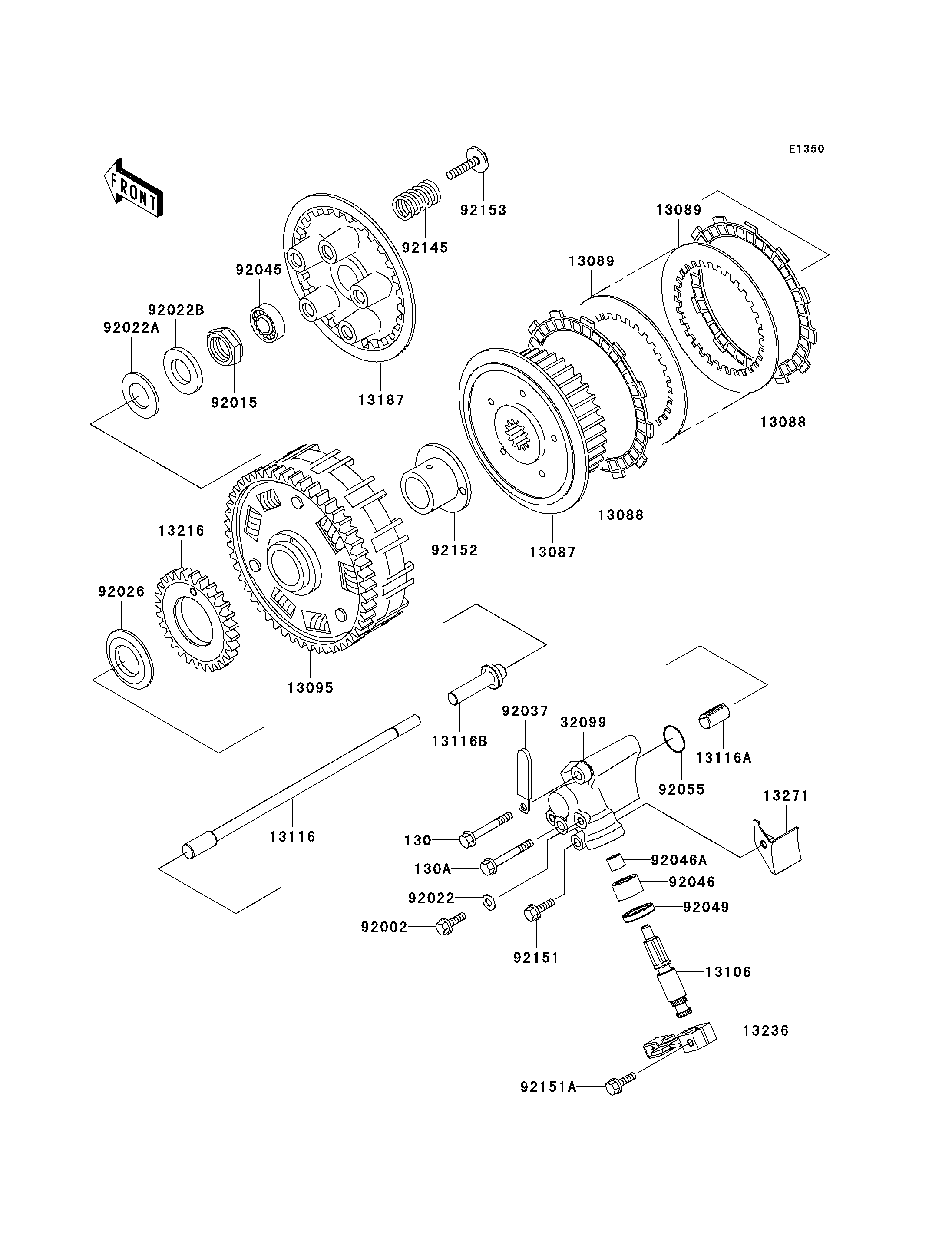

2011 W800 (European) - Clutch

DOWNLOAD PDF
SELECT A NEW PART
130
130A
13087
13088
13088
13089
13089
13095
13106
13116
13116A
13116B
13187
13216
13236
13271
32099
92002
92015
92022
92022A
92022B
92026
92037
92045
92046
92046A
92049
92055
92145
92151
92151A
92152
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X70 130 130CD0670 1
BOLT-FLANGED,6X80 130A 130CD0680 1
HUB-CLUTCH 13087 13087-0042 1
PLATE-FRICTION 13088 13088-1133 8
PLATE-CLUTCH 13089 13089-027 7
HOUSING-COMP-CLUTCH 13095 13095-1378 1
SHAFT-CLUTCH RELEASE 13106 13106-1068 1
ROD-PUSH 13116 13116-0042 1
ROD-PUSH,CLUTCH,6T 13116A 13116-1040 1
ROD-PUSH,CLUTCH POSITION 13116B 13116-1164 1
PLATE-CLUTCH OPERATING 13187 13187-1006 1
GEAR-COMP,OIL PUMP 13216 13216-1177 1
LEVER-COMP,CLUTCH RELEASE 13236 13236-1331 1
PLATE 13271 13271-1179 1
CASE,CLUTCH RELEASE 32099 32099-1204 1
BOLT,FLANGED-SMALL,6X7X2.5 92002 92002-1357 1
NUT,20MM 92015 92015-1555 1
WASHER,6.1X12X1 92022 92022-077 1
WASHER,20.3X36X2.3 92022A 92022-1116 1
WASHER,20.3X36X3.7 92022B 92022-1868 1
SPACER,25X47X4 92026 92026-1242 1
CLAMP,L=45 92037 92037-1539 1
BEARING-BALL,6001C3ML01 92045 92045-1235 1
BEARING-NEEDLE,HK1412FM 92046 92046-0043 1
BEARING-NEEDLE,HK0709 92046A 92046-1142 1
SEAL-OIL,TC14245 92049 92049-1520 1
RING-O,16.8X1.9 92055 92055-1598 1
SPRING,CLUTCH 92145 92145-0844 5
BOLT,6X40 92151 92151-1131 1
BOLT,FLANGED,6X20 92151A 92151-1226 1
COLLAR,CLUTCH GEAR 92152 92152-1146 1
BOLT,6X30 92153 92153-0643 5
