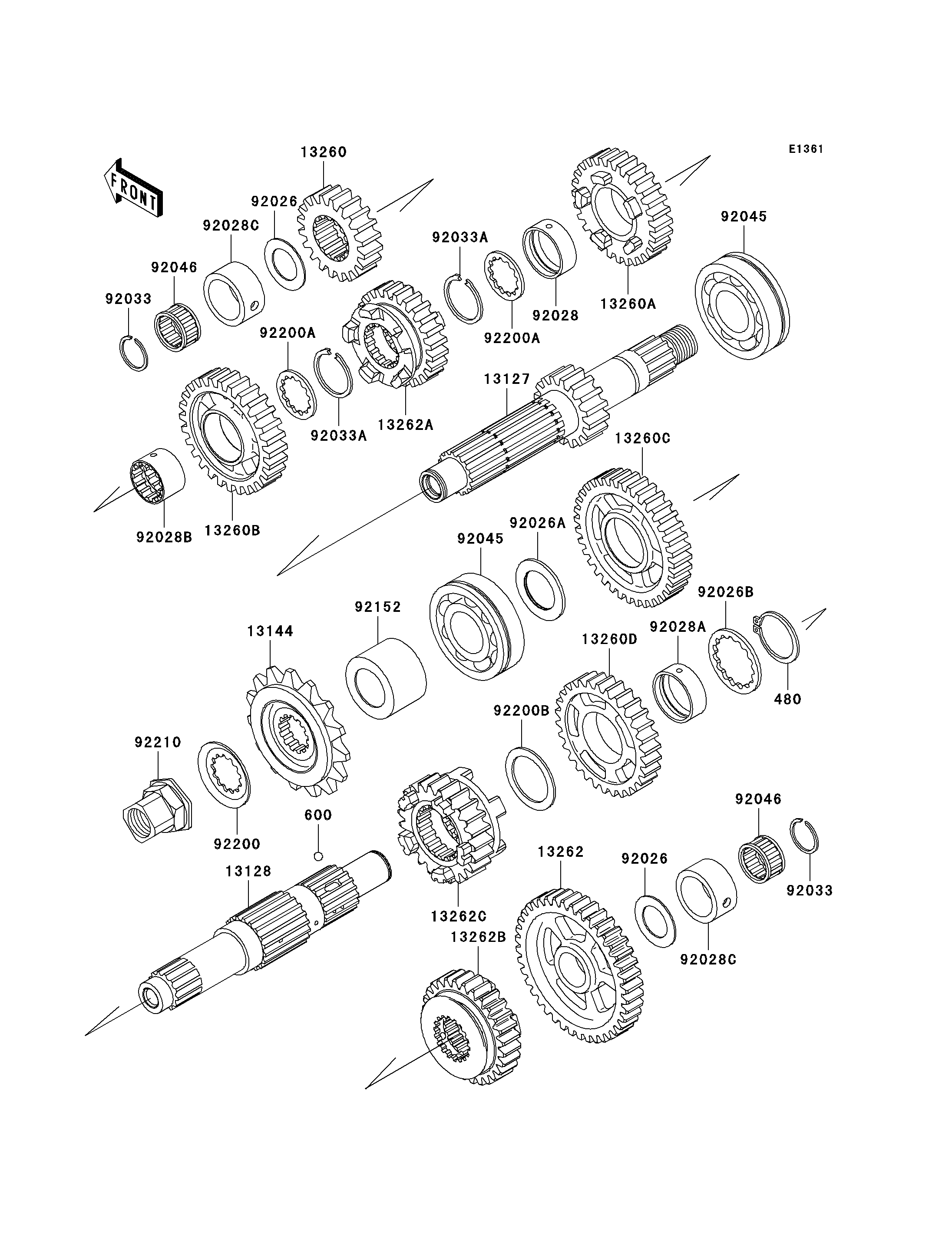

2011 W800 (European) - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
600
13127
13128
13144
13260
13260A
13260B
13260C
13260D
13262
13262A
13262B
13262C
92026
92026
92026A
92026B
92028
92028A
92028B
92028C
92028C
92033
92033
92033A
92033A
92045
92045
92046
92046
92152
92200
92200A
92200A
92200B
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 480 480J2900 1
BALL-STEEL,5/32" 600 600A0500 3
SHAFT-TRANSMISSION INPUT 13127 13127-0087 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-0063 1
SPROCKET-OUTPUT,15T 13144 13144-0554 1
GEAR,INPUT 2ND,22T 13260 13260-1783 1
GEAR,INPUT 4TH,28T 13260A 13260-1785 1
GEAR,INPUT TOP,27T 13260B 13260-1786 1
GEAR,OUTPUT 2ND,35T 13260C 13260-1788 1
GEAR,OUTPUT 3RD,31T 13260D 13260-1789 1
GEAR,OUTPUT LOW,40T 13262 13262-0843 1
GEAR,INPUT 3RD,25T 13262A 13262-0844 1
GEAR,OUTPUT 4TH,28T 13262B 13262-0845 1
GEAR,OUTPUT TOP,23T 13262C 13262-0846 1
SPACER,20.5X33X1.0 92026 92026-1528 2
SPACER,25.3X39X2.0 92026A 92026-1529 1
SPACER,TOOTHED,28X30X2.0 92026B 92026-1530 1
BUSHING,INPUT GEAR 92028 92028-1449 1
BUSHING,OUTPUT GEAR 92028A 92028-1707 1
BUSHING,INPUT TOP GEAR 92028B 92028-1752 1
BUSHING,26X34X16.6 92028C 92028-180 2
RING-SNAP,20MM 92033 92033-015 2
RING-SNAP,25.9X30.6X1.2 92033A 92033-1037 2
BEARING-BALL,6305N2SH2 92045 92045-1224 2
BEARING-NEEDLE,KMJ20X26X13.8X1 92046 92046-1185 2
COLLAR,SPROCKET 92152 92152-1148 1
WASHER 92200 92200-1065 1
WASHER,28.5X34.0X1.5 92200A 92200-1240 2
WASHER,29.9X40X1.5 92200B 92200-1278 1
NUT,SPROCKET 92210 92210-1098 1
