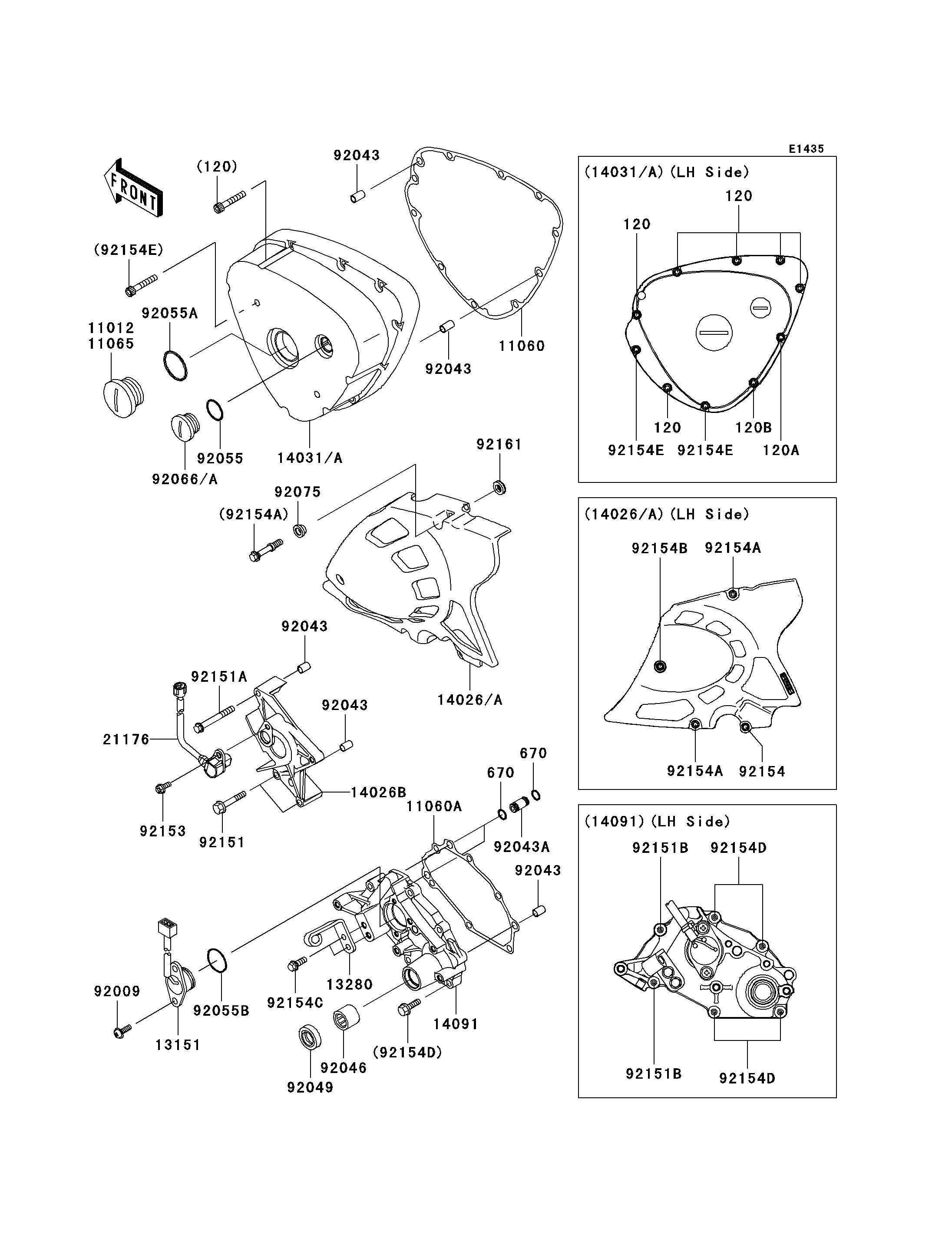

2011 W800 (European) - Left Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
120
120A
120B
670
670
11012
11060
11060A
13151
13280
14026A
14026B
14031A
14091
21176
92009
92043
92043
92043
92043
92043
92043A
92046
92049
92055
92055A
92055B
92066A
92075
92151
92151A
92151B
92151B
92153
92154
92154A
92154A
92154B
92154C
92154D
92154D
92154E
92154E
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X35 120 120CC0635 6
BOLT-SOCKET,6X40 120A 120CC0640 1
BOLT-SOCKET,6X45 120B 120CC0645 1
O RING 670 670D1505 4
CAP,GENERATOR 11012 11012-1817 1
GASKET,GENERATOR COVER 11060 11060-1892 1
GASKET,TRANSMISSION COVER 11060A 11060-1893 1
SWITCH-COMP,NEUTRAL 13151 13151-0054 1
HOLDER,CLUTCH CABLE 13280 13280-1109 1
COVER-CHAIN 14026A 14026-0087 1
COVER-CHAIN,INSIDE 14026B 14026-1261 1
COVER-GENERATOR 14031A 14031-1366 1
COVER,TRANSMISSION 14091 14091-1084 1
SENSOR,SPEED 21176 21176-0154 1
SCREW,5X16 92009 92009-1571 2
PIN,6.2X8X14 92043 92043-1263 5
PIN 92043A 92043-1588 2
BEARING-NEEDLE,HK1312 92046 92046-1148 1
SEAL-OIL,TC13225.5 92049 92049-1519 1
RING-O,20X2 92055 92055-1146 1
RING-O,39.4X3.1 92055A 92055-1618 1
RING-O,27.7X2.4 92055B 92055-1619 1
PLUG 92066A 92066-1397 1
DAMPER 92075 92075-1855 4
BOLT,6X40 92151 92151-1131 2
BOLT,6X50 92151A 92151-1234 1
BOLT,6X35 92151B 92151-1874 2
BOLT,FLANGED,5X12 92153 92153-1582 1
BOLT,FLANGED,6X31 92154 92154-0486 1
BOLT,FLANGED,6X39 92154A 92154-0487 2
BOLT,FLANGED,6X43.6 92154B 92154-0488 1
BOLT,FLANGED,6X16 92154C 92154-0489 2
BOLT,FLANGED,6X25 92154D 92154-0490 4
BOLT,SOCKET,6X35 92154E 92154-0494 2
DAMPER 92161 92161-0411 4
