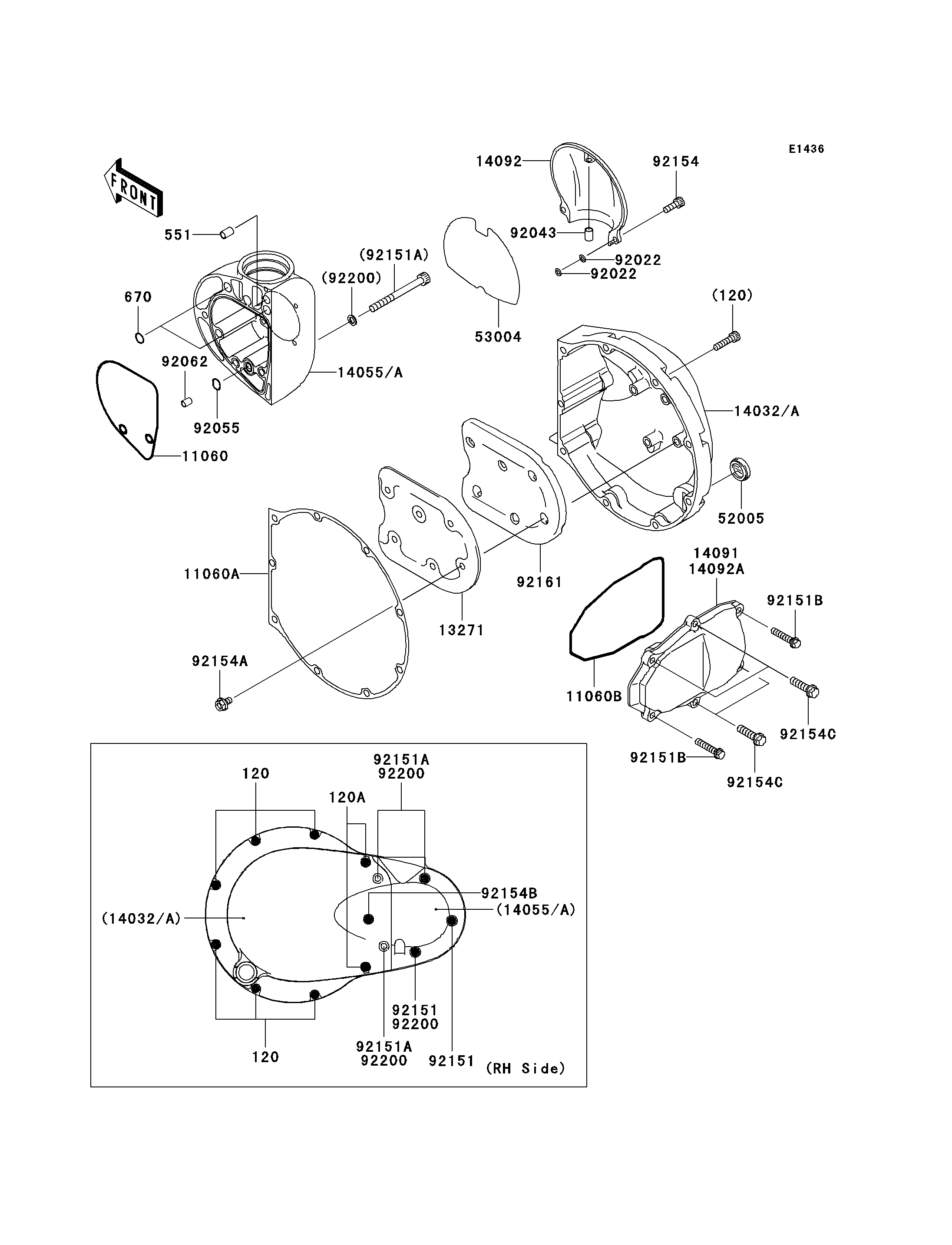

2011 W800 (European) - Right Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
120A
551
670
11060
11060A
11060B
13271
14032A
14055A
14091
14092
52005
53004
92022
92022
92043
92055
92062
92151
92151
92151A
92151A
92151B
92151B
92154
92154A
92154B
92154C
92154C
92161
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X25 120 120CC0625 6
BOLT-SOCKET,6X50 120A 120CC0650 2
PIN-DOWEL 551 551A0820 1
O RING,7MM 670 670D1507 2
GASKET,GEAR CASE 11060 11060-1890 1
GASKET,CLUTCH COVER 11060A 11060-1891 1
GASKET,KICK COVER 11060B 11060-1896 1
PLATE,SOUND ARRESTER 13271 13271-1215 1
COVER-CLUTCH 14032A 14032-1495 1
CASE-GEAR 14055A 14055-1147 1
COVER,KICK 14091 14091-1080 1
COVER,BEVEL GEAR 14092 14092-0234 1
GAUGE,OIL LEVEL 52005 52005-1009 1
MAT,BEVEL COVER 53004 53004-1124 1
WASHER,5.2X10X1.5 92022 92022-1023 4
PIN,6X12 92043 92043-1606 1
RING-O,12.3X1.9 92055 92055-1594 1
NOZZLE,6X8,BLACK 92062 92062-1079 1
BOLT,SOCKET,6X55 92151 92151-1496 2
BOLT,SOCKET,6X60 92151A 92151-1497 3
BOLT,6X30 92151B 92151-1873 2
BOLT,SOCKET,5X14 92154 92154-0491 2
BOLT,FLANGED,6X10 92154A 92154-0492 6
BOLT,SOCKET,6X70 92154B 92154-0493 1
BOLT,FLANGED,6X22 92154C 92154-0794 4
DAMPER 92161 92161-0953 1
WASHER,6.8X11.5X1.0 92200 92200-1461 4
