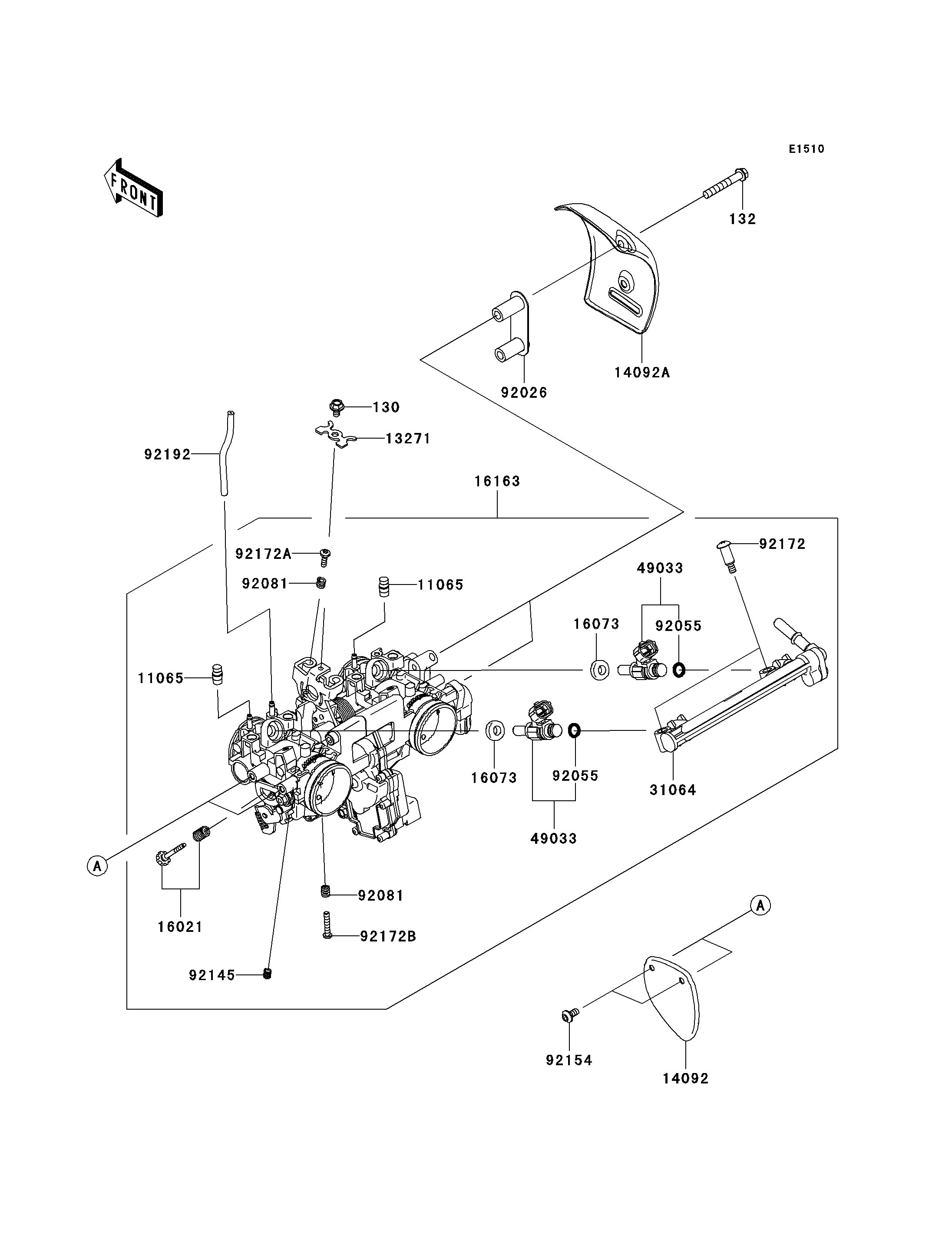

2011 W800 (European) - Throttle

DOWNLOAD PDF
SELECT A NEW PART
130
132
11065
11065
13271
14092
14092A
16021
16073
16073
16163
31064
49033
49033
92026
92055
92055
92081
92081
92145
92154
92172
92172A
92172B
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X8 130 130BA0508 1
BOLT-FLANGED-SMALL,6X40 132 132E0640 2
CAP 11065 11065-0018 2
PLATE 13271 13271-0056 1
COVER,LH 14092 14092-0229 1
COVER,RH 14092A 14092-0230 1
SCREW-THROTTLE STOP 16021 16021-0054 1
INSULATOR 16073 16073-0129 2
THROTTLE-ASSY,TTK34 16163 16163-0171 1
PIPE-COMP,FUEL 31064 31064-0591 1
NOZZLE-INJECTION 49033 49033-0028 2
SPACER 92026 92026-0166 1
RING-O,INJECTION NOZZLE 92055 92055-0124 2
SPRING 92081 92081-1620 2
SPRING 92145 92145-0816 1
BOLT,SOCKET,5X10 92154 92154-0211 2
SCREW,PIPE INJECTION 92172 92172-0064 2
SCREW 92172A 92172-0505 1
SCREW 92172B 92172-0506 1
TUBE,3X7X110 92192 92192-0931 1
