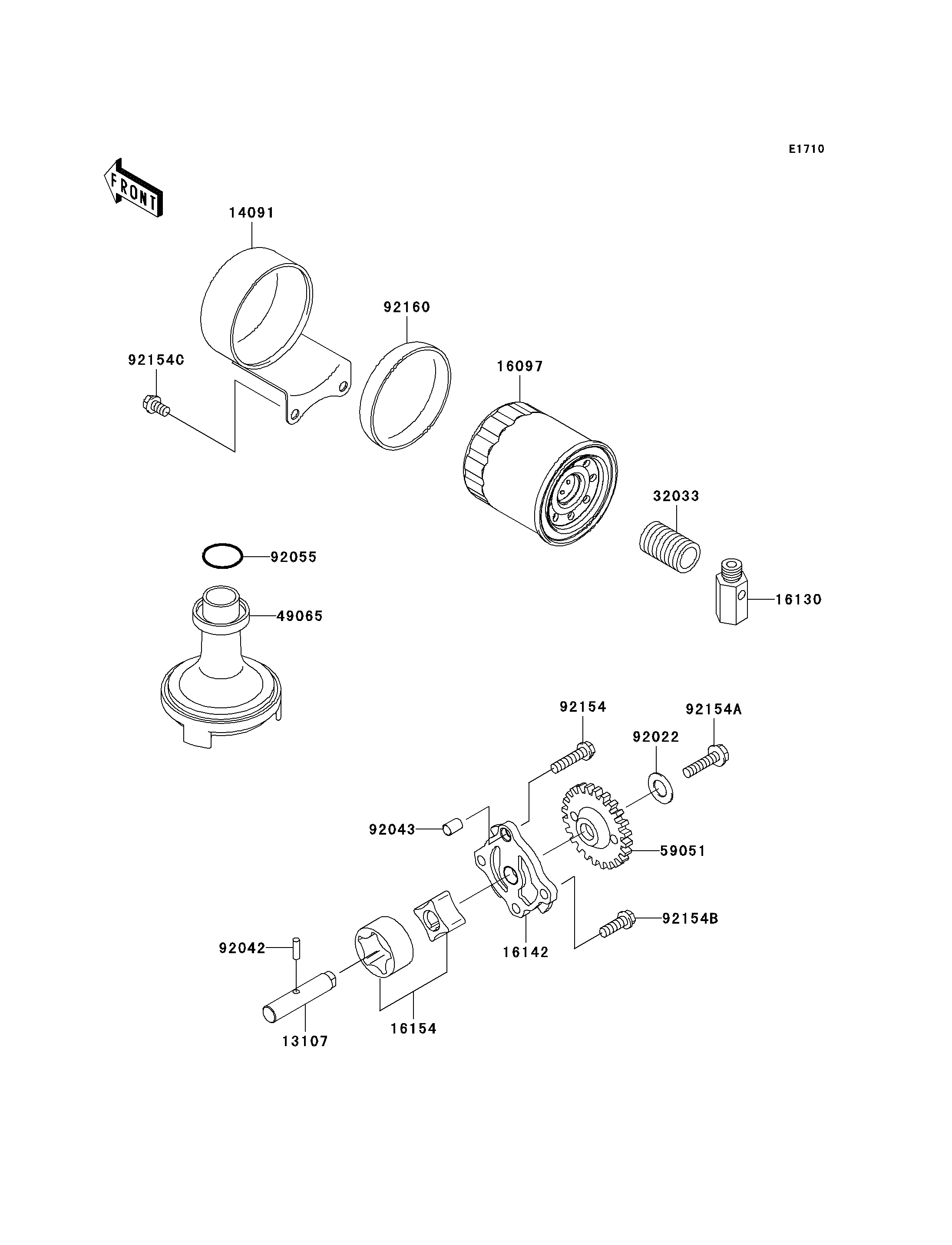

2011 W800 (European) - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
13107
14091
16097
16130
16142
16154
32033
49065
59051
92022
92042
92043
92055
92154
92154A
92154B
92154C
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,OIL PUMP 13107 13107-1411 1
COVER 14091 14091-0626 1
FILTER-ASSY-OIL 16097 16097-0004 1
VALVE-ASSY-RELIEF 16130 16130-1058 1
COVER-PUMP,OIL 16142 16142-1155 1
ROTOR-PUMP,40.56X22 16154 16154-1115 1
PIPE,OIL FILTER 32033 32033-1535 1
FILTER-OIL 49065 49065-1082 1
GEAR-SPUR,OIL PUMP 59051 59051-1377 1
WASHER,6X12.8X1.2 92022 92022-1827 1
PIN,DOWEL,4X15.8 92042 92042-014 1
PIN,DOWEL,8X10 92043 92043-1302 1
RING-O,OIL FILTER 92055 92055-1354 1
BOLT,FLANGED,6X25 92154 92154-0497 1
BOLT,FLANGED,6X25 92154A 92154-0498 1
BOLT,FLANGED,6X18 92154B 92154-0499 3
BOLT,FLANGED,6X10 92154C 92154-0500 2
DAMPER,OIL FILTER COVER 92160 92160-1995 1
