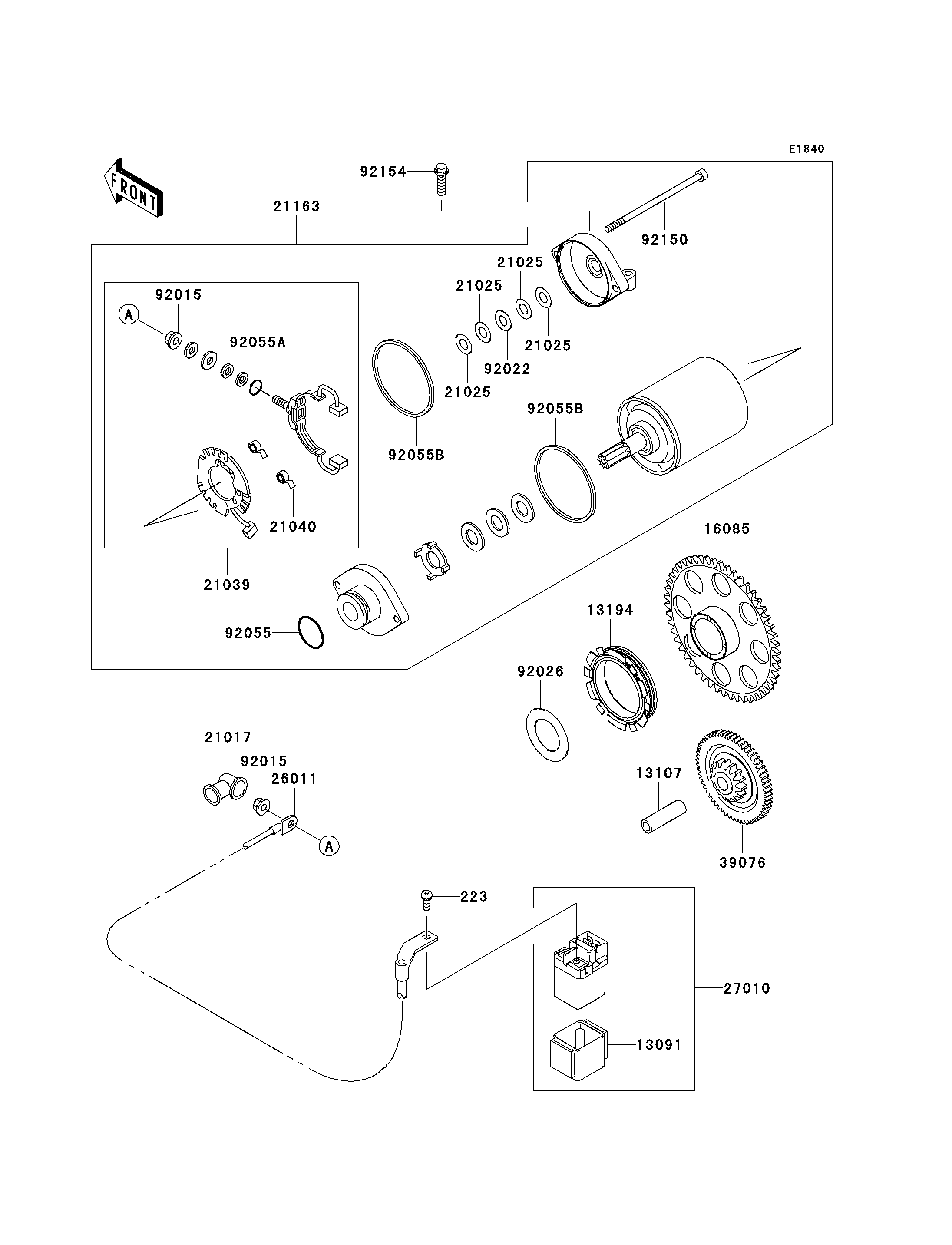

2011 W800 (European) - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
223
13091
13107
13194
16085
21017
21025
21025
21025
21025
21039
21040
21163
26011
27010
39076
92015
92015
92022
92026
92055
92055A
92055B
92055B
92150
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WS-CROS,5X10 223 223AA0510 2
HOLDER,SWITCH 13091 13091-1883 1
SHAFT,IDLE GEAR 13107 13107-1106 1
CLUTCH-ONEWAY 13194 13194-0015 1
GEAR,ONEWAY CLUTCH 16085 16085-1318 1
GROMMET,STARTER TERMINAL 21017 21017-017 1
WASHER,9.1X18X0.2 21025 21025-011 AR
BRUSH,CARBON 21039 21039-1060 1
SPRING-BRUSH 21040 21040-1055 4
STARTER-ELECTRIC 21163 21163-1263 1
WIRE-LEAD,STARTER MOTOR 26011 26011-1737 1
SWITCH,MAGNETIC 27010 27010-1347 1
LIMITER,STARTER GEAR 39076 39076-1073 1
NUT,STARTER MOTOR 92015 92015-1476 2
WASHER,9.1X18X0.8 92022 92022-1132 1
SPACER,29.1X47.5X1.2 92026 92026-087 1
RING-O 92055 92055-1276 1
RING-O,4.5X2.0 92055A 92055-1370 1
RING-O,STARTER MOTOR 92055B 92055-1381 2
BOLT,STARTER MOTOR 92150 92150-1913 2
BOLT,FLANGED,6X22 92154 92154-0504 2
