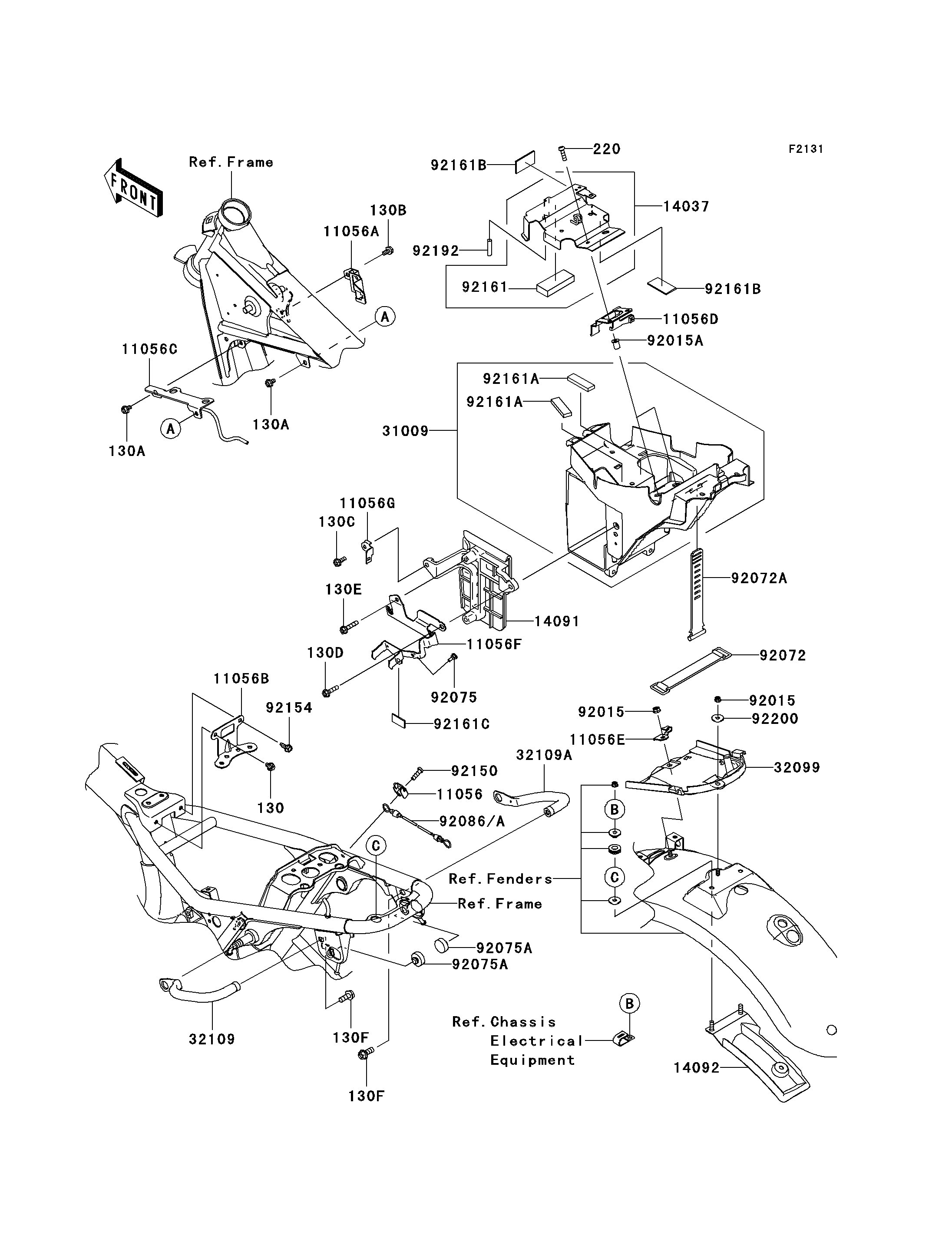

2011 W800 (European) - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
130B
130C
130D
130E
130F
130F
220
11056
11056A
11056B
11056C
11056D
11056E
11056F
11056G
14037
14091
14092
31009
32099
32109
32109A
92015
92015
92015A
92072
92072A
92075
92075A
92075A
92086
92150
92154
92161
92161A
92161A
92161B
92161B
92161C
92192
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X8 130 130BA0608 1
BOLT-FLANGED,6X10 130A 130BA0610 2
BOLT-FLANGED,6X12 130B 130BA0612 1
BOLT-FLANGED,6X16 130C 130BA0616 1
BOLT-FLANGED,6X25 130D 130BA0625 1
BOLT-FLANGED,6X30 130E 130BA0630 2
BOLT-FLANGED,8X20 130F 130BA0820 2
SCREW-PAN-CROSS,6X20 220 220AA0620 2
BRACKET,HELMET HOLDER 11056 11056-0315 1
BRACKET 11056A 11056-0477 1
BRACKET,FUEL TANK 11056B 11056-0478 1
BRACKET,IGNITION COIL 11056C 11056-0479 1
BRACKET,VEHICLE DOWN SENSOR 11056D 11056-0557 1
BRACKET 11056E 11056-1060 1
BRACKET,JUNCTION BOX 11056F 11056-1272 1
BRACKET 11056G 11056-1274 1
SCREEN 14037 14037-0114 1
COVER,BATTERY 14091 14091-0297 1
COVER,RR,HARNESS 14092 14092-0244 1
CASE-COMP-BATTERY 31009 31009-0006 1
CASE,U LOCK 32099 32099-0056 1
GRIP-FRAME,LH 32109 32109-1287 1
GRIP-FRAME,RH 32109A 32109-1288 1
NUT,FLANGED,6MM 92015 92015-1367 2
NUT 92015A 92015-1700 2
BAND 92072 92072-0050 1
BAND,TOOL 92072A 92072-0149 1
DAMPER 92075 92075-1808 1
DAMPER 92075A 92075-281 2
WIRE,L=150 92086 92086-1075 1
BOLT,6X20 92150 92150-1072 1
BOLT,FLANGED,6X16 92154 92154-0551 1
DAMPER 92161 92161-0903 1
DAMPER,15X50X6 92161A 92161-0905 2
DAMPER,45X25X2 92161B 92161-1381 2
DAMPER,15X30X2 92161C 92161-1394 1
TUBE,7X8X50 92192 92192-1005 1
WASHER,6.5X20X1.6 92200 92200-0283 1
