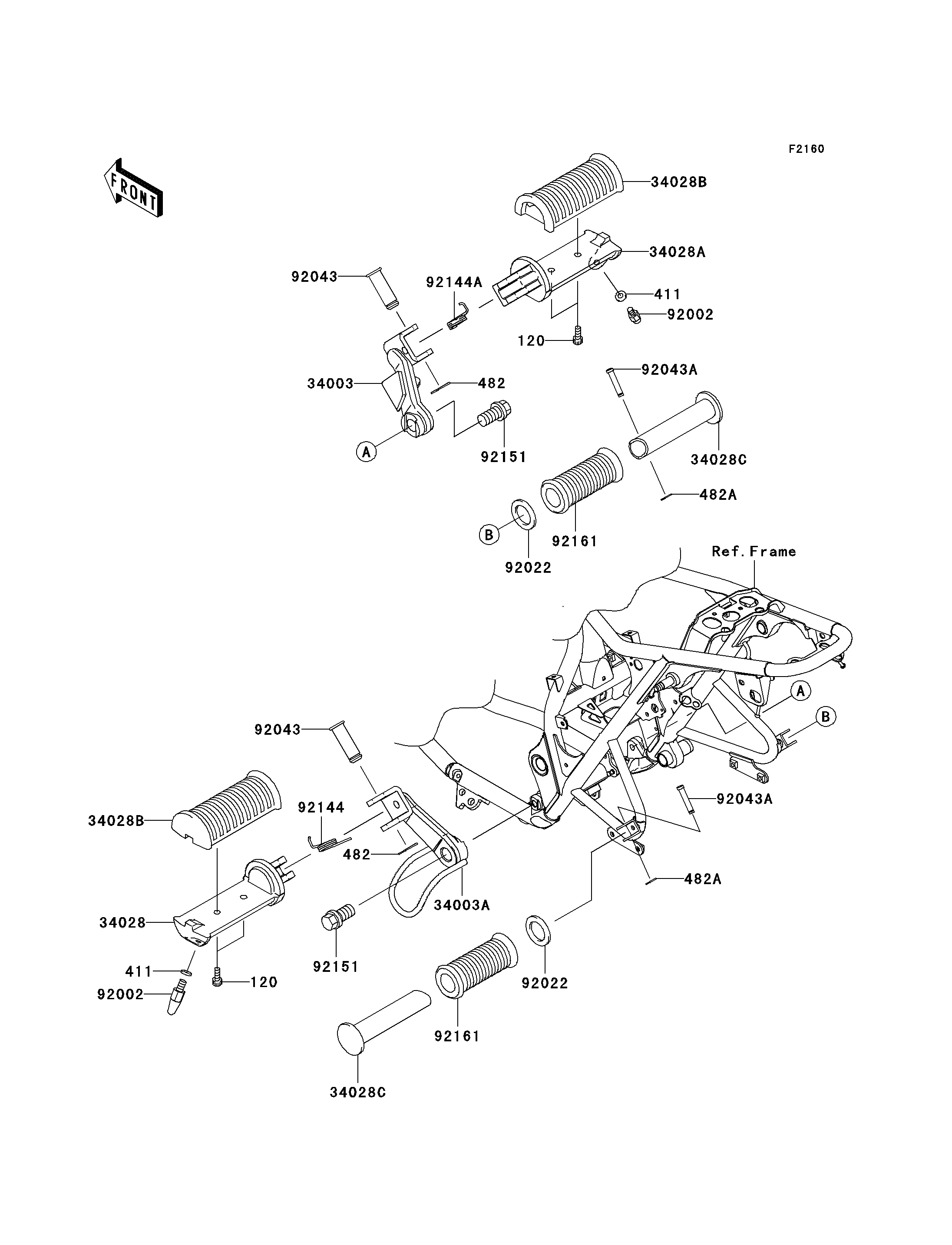

2011 W800 (European) - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
411
411
482
482
482A
482A
34003
34003A
34028
34028A
34028B
34028B
34028C
34028C
92002
92002
92022
92022
92043
92043
92043A
92043A
92144
92144A
92151
92151
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120CB0512 4
WASHER-PLAIN,6.5X13X1 411 411AB0600 2
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
CIRCLIP-TYPE-E 482A 482EA5000 2
HOLDER-STEP,FR,RH 34003 34003-0125 1
HOLDER-STEP,FR,LH 34003A 34003-0126 1
STEP,FR,LH 34028 34028-1358 1
STEP,FR,RH 34028A 34028-1359 1
STEP,RUBBER 34028B 34028-1372 2
STEP,RR 34028C 34028-1373 2
BOLT,BANK SENSOR 92002 92002-1742 2
WASHER,20X30X2.3 92022 92022-1568 2
PIN,12X37 92043 92043-0150 2
PIN,6X30 92043A 92043-1607 2
SPRING,STEP RETURN 92144 92144-1567 1
SPRING,STEP RETURN 92144A 92144-1568 1
BOLT,FLANGED,12X30 92151 92151-1942 2
DAMPER,RR STEP 92161 92161-0902 2
