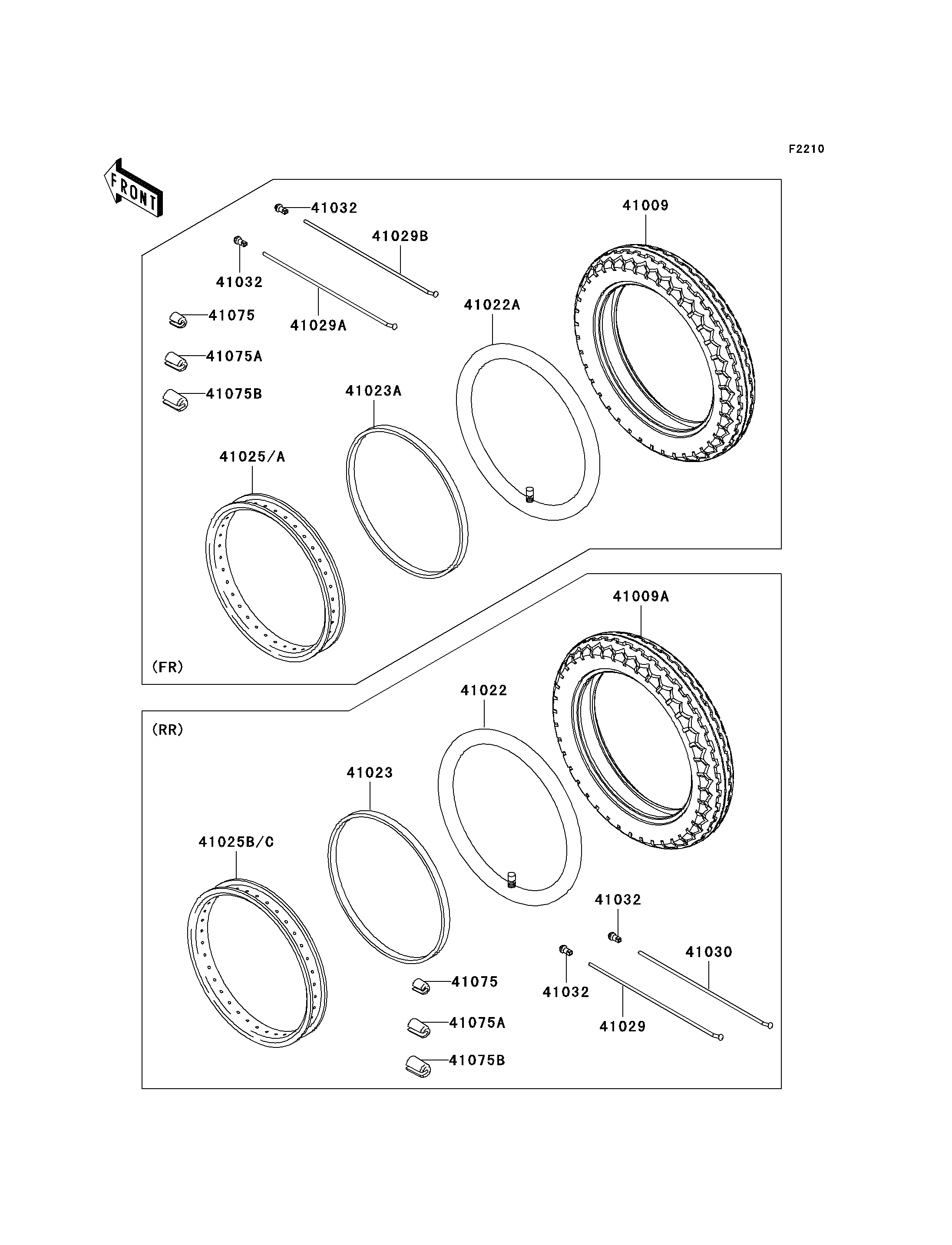

2011 W800 (European) - Tires

DOWNLOAD PDF
SELECT A NEW PART
41009
41009A
41022
41022A
41023
41023A
41025
41025B
41029
41029A
41029B
41030
41032
41032
41032
41032
41075
41075
41075A
41075A
41075B
41075B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,100/90-19 57H,TT100GPG 41009 41009-1351 1
TIRE,RR,130/80-18 66H,TT100GP 41009A 41009-1352 1
TUBE-TIRE,130/80-18(D) 41022 41022-0016 1
TUBE-TIRE,100/90-19(D) 41022A 41022-1129 1
BAND-RIM,100/100-18(D) 41023 41023-1070 1
BAND-RIM,90.100/90-19(D) 41023A 41023-1074 1
RIM,FR,2.15X19,SILVER 41025 41025-1381-WA 1
RIM,RR,2.75X18,SILVER 41025B 41025-1382-WA 1
SPOKE-INNER,RR,149MMX103D 41029 41029-1300 18
SPOKE-INNER,FR,LH,200MMX170D 41029A 41029-1304 18
SPOKE-INNER,FR,RH,183MMX170D 41029B 41029-1305 18
SPOKE-OUTER,RR,148MMX80D 41030 41030-1164 18
NIPPLE-SPOKE 41032 41032-0005 72
BALANCER-WHEEL,10G 41075 41075-0011 AR
BALANCER-WHEEL,20G 41075A 41075-0012 AR
BALANCER-WHEEL,30G 41075B 41075-0013 AR
