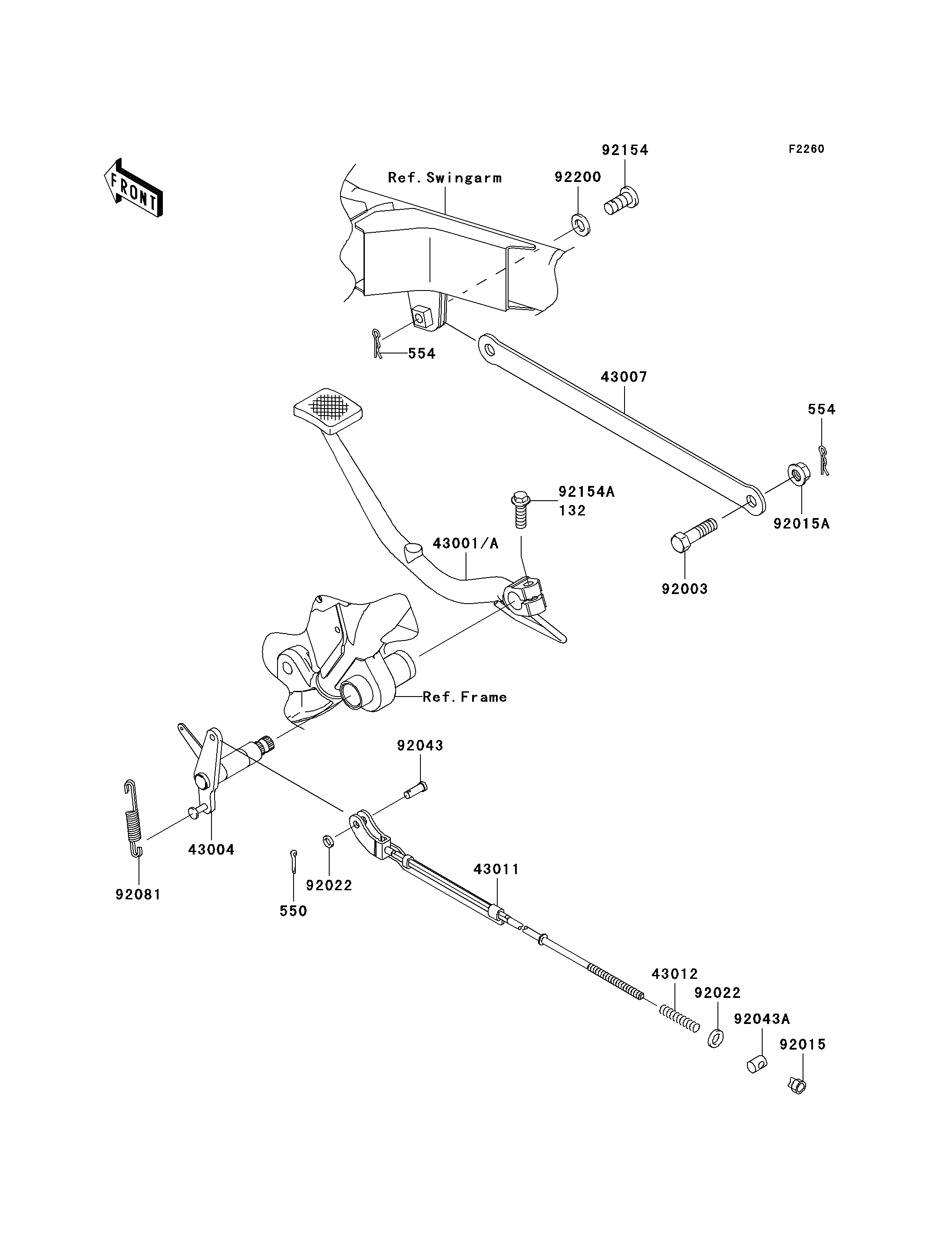

Parts Diagrams |
132
550
554
554
43001
43004
43007
43011
43012
92003
92015
92015A
92022
92022
92043
92043A
92081
92154
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,8X25 | 132 | 132E0825 | 1 | ||
| PIN-COTTER,2.0X15 | 550 | 550AA2015 | 1 | ||
| PIN-SNAP | 554 | 554DA0800 | 2 | ||
| LEVER-BRAKE,PEDAL | 43001 | 43001-0135 | 1 | ||
| SHAFT-BRAKE | 43004 | 43004-0552 | 1 | ||
| ROD-TORQUE | 43007 | 43007-1190 | 1 | ||
| ROD-BRAKE | 43011 | 43011-1180 | 1 | ||
| SPRING,BRAKE ROD | 43012 | 43012-001 | 1 | ||
| BOLT,10X35 | 92003 | 92003-034 | 1 | ||
| NUT,BRAKE ROD | 92015 | 92015-042 | 1 | ||
| NUT,FLANGED,10MM | 92015A | 92015-1428 | 1 | ||
| WASHER,6.3X10.2X1.6 | 92022 | 92022-1588 | 2 | ||
| PIN,6X17 | 92043 | 92043-064 | 1 | ||
| PIN,BRAKE ROD | 92043A | 92043-065 | 1 | ||
| SPRING,SIDE STAND | 92081 | 92081-1669 | 1 | ||
| BOLT,SOCKET,10X30 | 92154 | 92154-0510 | 1 | ||
| WASHER,10.5X19X2.3 | 92200 | 92200-1042 | 1 |
| BOLT-FLANGED-SMALL,8X25 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,2.0X15 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-SNAP | |
| REF # | 554 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LEVER-BRAKE,PEDAL | |
| REF # | 43001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-BRAKE | |
| REF # | 43004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-TORQUE | |
| REF # | 43007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-BRAKE | |
| REF # | 43011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE ROD | |
| REF # | 43012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X35 | |
| REF # | 92003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,BRAKE ROD | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.3X10.2X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,6X17 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,BRAKE ROD | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SIDE STAND | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X30 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X19X2.3 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
