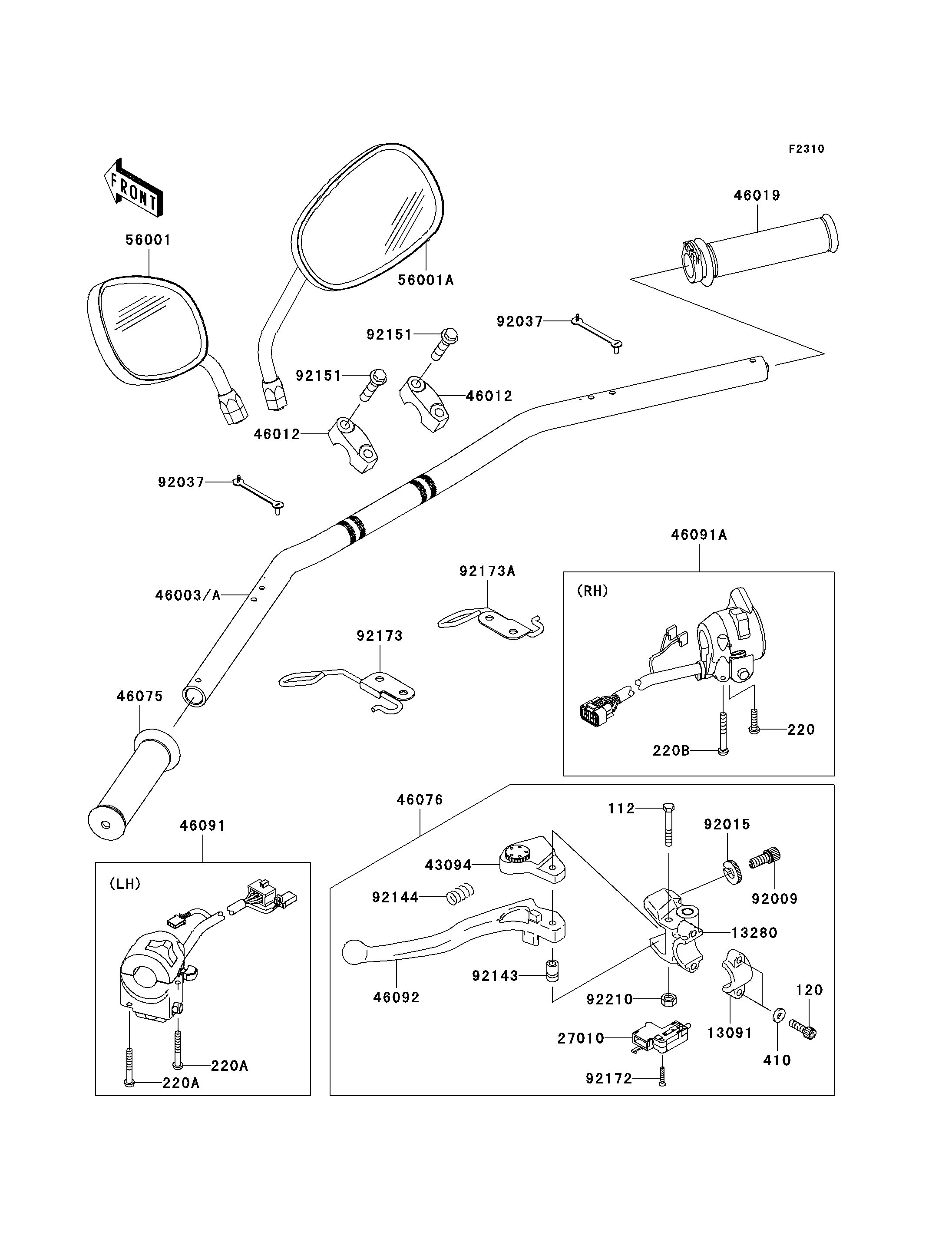

2011 W800 (European) - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
112
120
220
220A
220A
220B
410
13091
13280
27010
43094
46003
46012
46012
46019
46075
46076
46091
46091A
46092
56001
56001A
92009
92015
92037
92037
92143
92144
92151
92151
92172
92173
92173A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X40 112 112C0640 1
BOLT-SOCKET,6X20 120 120CB0620 2
SCREW-PAN-CROSS,5X20 220 220AB0520 1
SCREW-PAN-CROSS,5X35 220A 220AB0535 2
SCREW-PAN-CROSS,5X40 220B 220AB0540 1
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
HOLDER,CLUTCH LEVER 13091 13091-1624 1
HOLDER,CLUTCH LEVER 13280 13280-0248 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
ADJUSTER,CLUTCH LEVER 43094 43094-1053 1
HANDLE,22.2MM 46003 46003-0573 1
HOLDER-HANDLE,UPP 46012 46012-1267 2
GRIP-ASSY,THROTTLE 46019 46019-1110 1
GRIP,LH 46075 46075-1175 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0045 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0221 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-0228 1
LEVER-GRIP,CLUTCH 46092 46092-1162 1
MIRROR-ASSY,LH 56001 56001-0198 1
MIRROR-ASSY,RH 56001A 56001-0199 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015 92015-1197 1
CLAMP,SPEED,L=58 92037 92037-1163 2
COLLAR 92143 92143-1379 1
SPRING 92144 92144-1467 1
BOLT,FLANGED,8X35 92151 92151-1402 4
SCREW,3X16 92172 92172-0183 2
CLAMP,HOUSING,LH 92173 92173-0282 1
CLAMP,HOUSING,RH 92173A 92173-0283 1
NUT,LOCK,6MM 92210 92210-0006 1
