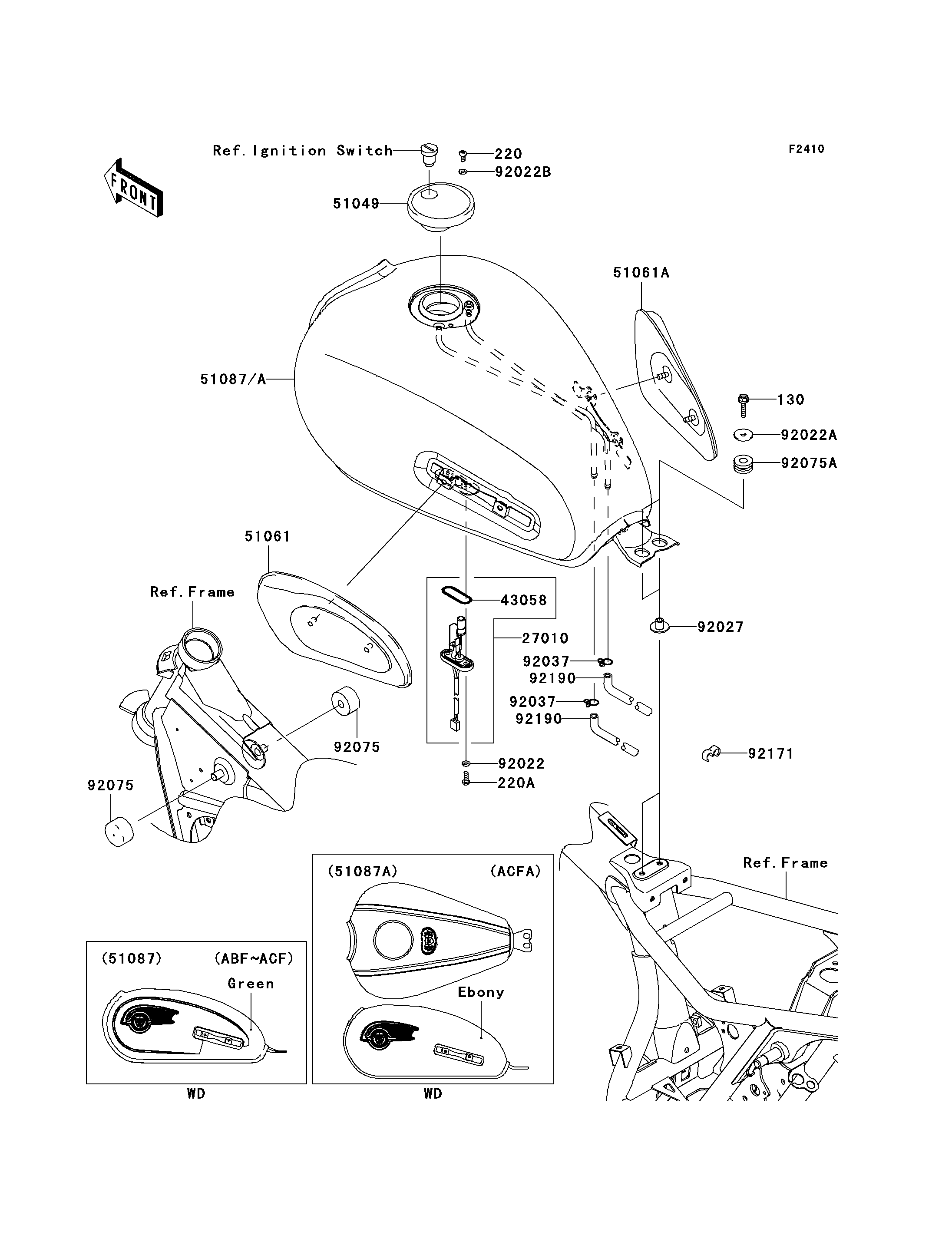

2011 W800 (European) - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
220
220A
27010
43058
51049
51061
51061A
51087
92022
92022A
92022B
92027
92037
92037
92075
92075
92075A
92171
92190
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BA0625 2
SCREW-PAN-CROSS,5X10 220 220AA0510 2
SCREW-PAN-CROSS,5X14 220A 220AA0514 2
SWITCH,FUEL LEVEL 27010 27010-0718 1
RING,FUEL LEVEL SWITCH 43058 43058-1004 1
CAP-TANK,FUEL 51049 51049-1132 1
PAD-KNEE,LH 51061 51061-1057 1
PAD-KNEE,RH 51061A 51061-1058 1
TANK-COMP-FUEL,M.D.GREEN 51087 51087-5116-727 1
WASHER,5.2X10X1.5 92022 92022-1023 2
WASHER,6.5X24X2 92022A 92022-1690 2
WASHER,5.1X10X1.0 92022B 92022-1977 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP,TUBE 92037 92037-147 2
DAMPER,FUEL TANK 92075 92075-125 2
DAMPER 92075A 92075-1690 2
CLAMP 92171 92171-1184 1
TUBE,DRAIN 92190 92190-1453 2
