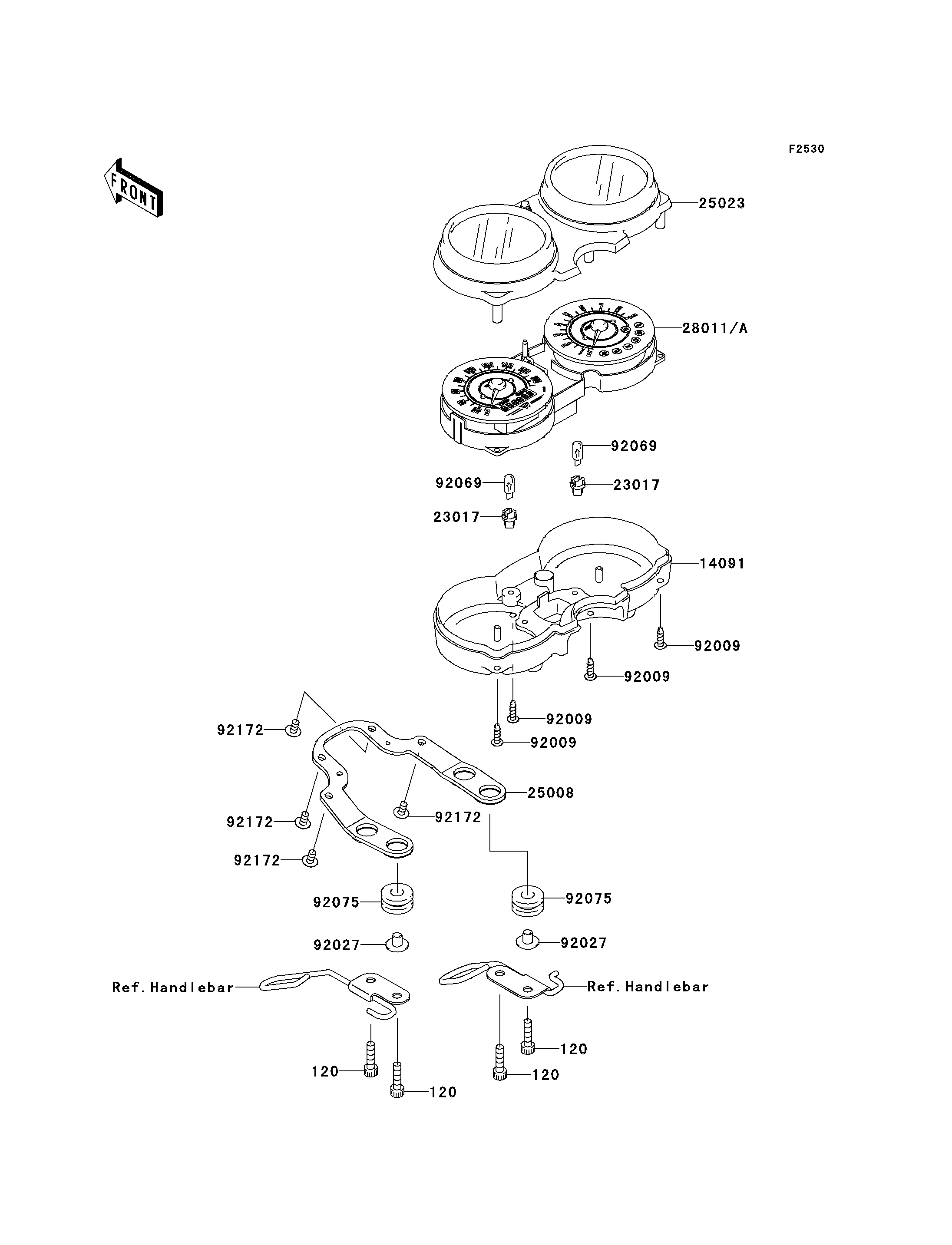

Parts Diagrams |
120
120
120
120
14091
23017
23017
25008
25023
92009
92009
92009
92009
92027
92027
92069
92069
92075
92075
92172
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X22 | 120 | 120CA0622 | 4 | ||
| COVER,METER CASE,LWR | 14091 | 14091-1085 | 1 | ||
| SOCKET,WEDGE BASE,T-5 | 23017 | 23017-1063 | 2 | ||
| BRACKET-METER | 25008 | 25008-0035 | 1 | ||
| COVER-METER CASE,UPP | 25023 | 25023-0022 | 1 | ||
| SCREW,4X16,BLACK | 92009 | 92009-1158 | 4 | ||
| COLLAR,L=13.1,BLACK | 92027 | 92027-1450 | 4 | ||
| BULB,12V 2W,T5 | 92069 | 92069-1105 | 2 | ||
| DAMPER | 92075 | 92075-1690 | 4 | ||
| SCREW,5X10 | 92172 | 92172-0007 | 4 | ||
| METER,SPEED&TACHO,KPH | 28011 | 28011-0187 | 1 | WV | |
| METER,SPEED&TACHO,MPH/KPH | 28011A | 28011-0188 | 1 | UK |
| BOLT-SOCKET,6X22 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER,METER CASE,LWR | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET,WEDGE BASE,T-5 | |
| REF # | 23017 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-METER | |
| REF # | 25008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-METER CASE,UPP | |
| REF # | 25023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,4X16,BLACK | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=13.1,BLACK | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 2W,T5 | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X10 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| METER,SPEED&TACHO,KPH | |
| REF # | 28011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | WV |
| REMARKS | |
| METER,SPEED&TACHO,MPH/KPH | |
| REF # | 28011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | UK |
| REMARKS | |
