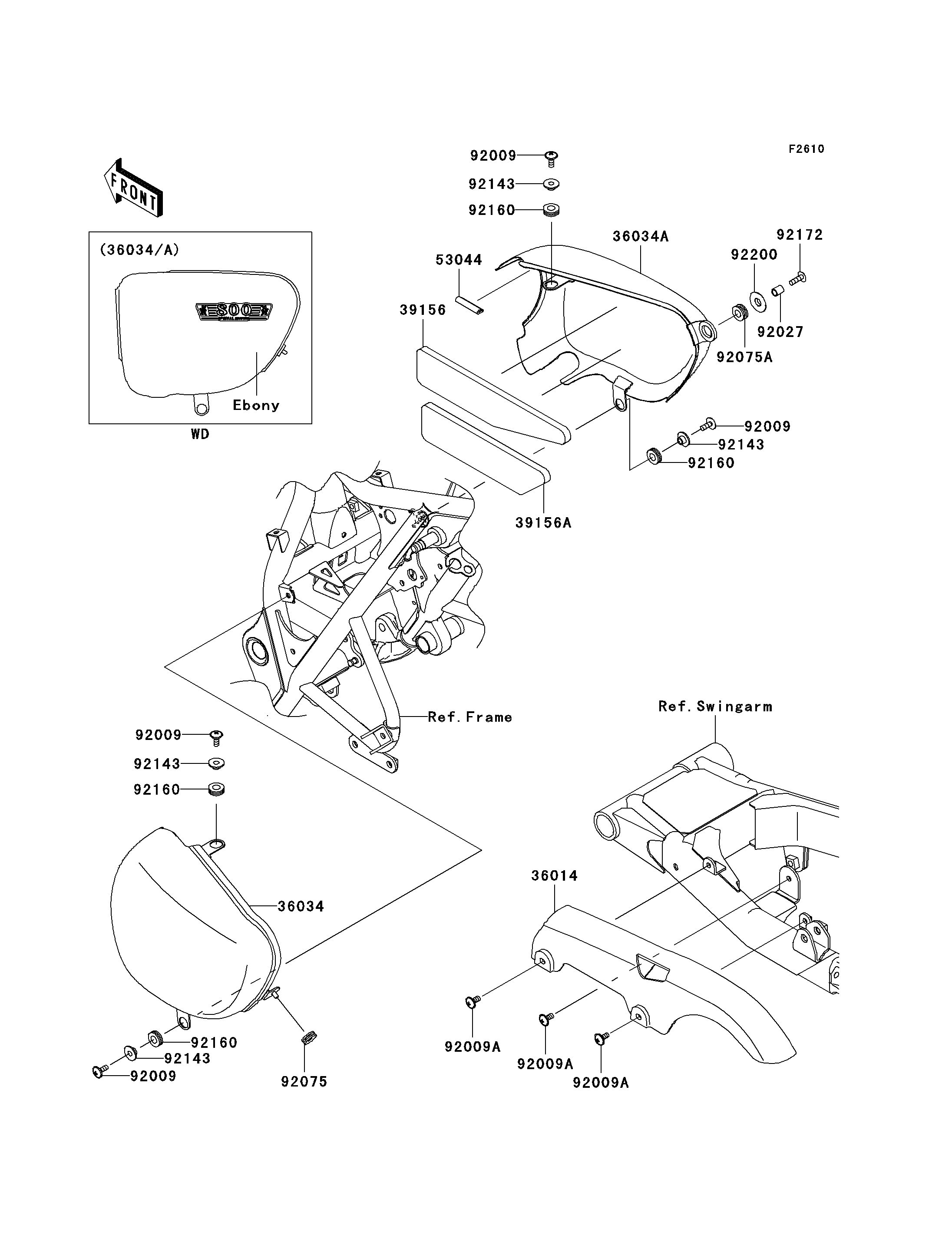

2012 W800 (European) - Side Covers/Chain Cover(ACFA)
36014
36034
36034A
39156
39156A
53044
92009
92009
92009
92009
92009A
92009A
92009A
92027
92075
92075A
92143
92143
92143
92143
92160
92160
92160
92160
92172
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-CHAIN | 36014 | 36014-1234 | 1 | ||
| COVER-SIDE,LH,EBONY | 36034 | 36034-5290-H8 | 1 | ||
| COVER-SIDE,RH,EBONY | 36034A | 36034-5291-H8 | 1 | ||
| PAD,SIDE COVER,RH,UPP | 39156 | 39156-0675 | 1 | ||
| PAD,SIDE COVER,RH,LWR | 39156A | 39156-0676 | 1 | ||
| TRIM,L=40 | 53044 | 53044-1320 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 4 | ||
| SCREW,6X14 | 92009A | 92009-1662 | 3 | ||
| COLLAR,6.8X10X12 | 92027 | 92027-162 | 1 | ||
| DAMPER | 92075 | 92075-1629 | 1 | ||
| DAMPER | 92075A | 92075-1634 | 1 | ||
| COLLAR,L=7.4 | 92143 | 92143-1019 | 4 | ||
| DAMPER | 92160 | 92160-1278 | 4 | ||
| SCREW,6X20 | 92172 | 92172-0399 | 1 | ||
| WASHER | 92200 | 92200-1153 | 1 |
