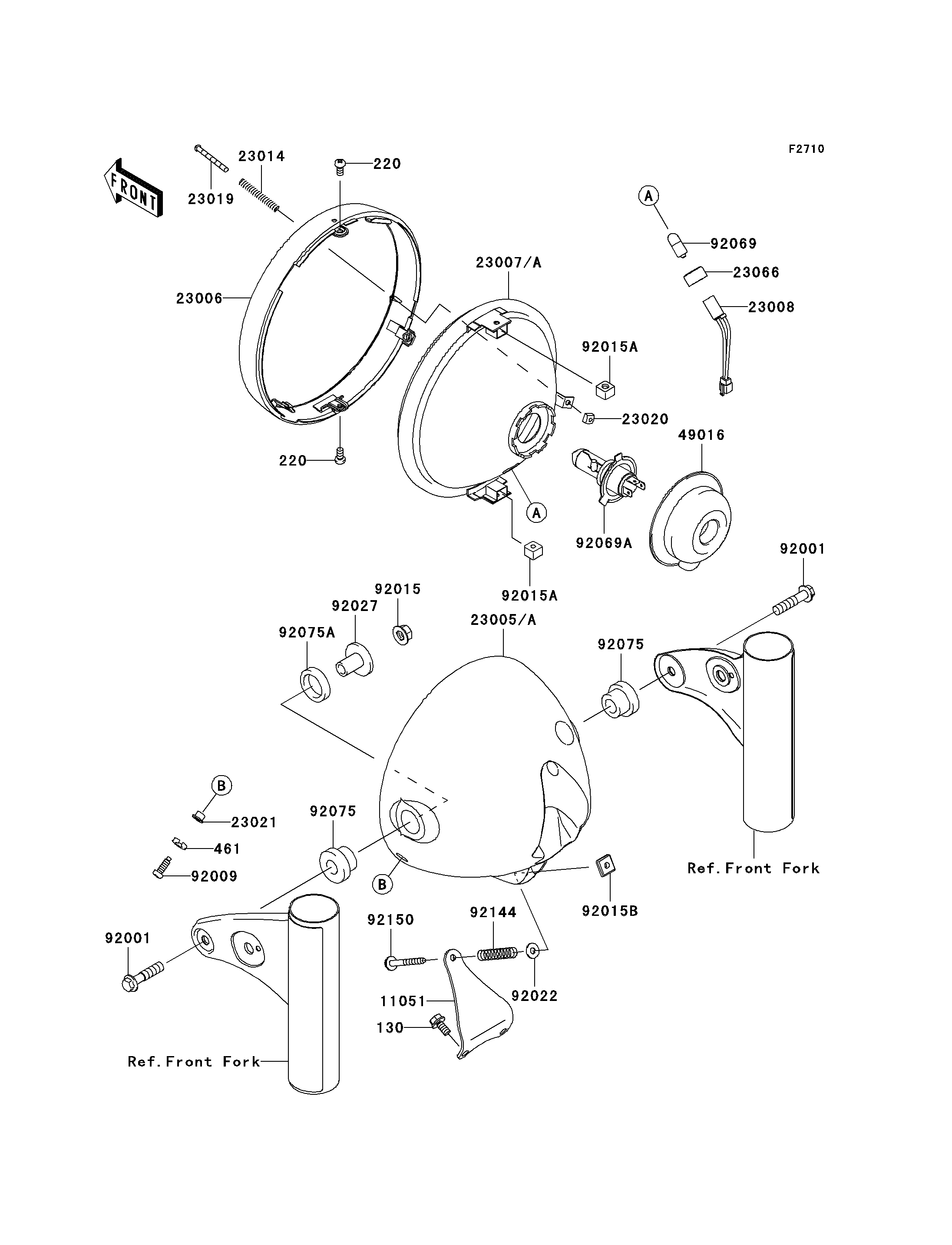

2011 W800 (European) - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
220
220
461
11051
23005A
23006
23008
23014
23019
23020
23021
23066
49016
92001
92001
92009
92015
92015A
92015A
92015B
92022
92027
92069
92069A
92075
92075
92075A
92144
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BB0612 2
SCREW-PAN-CROSS,5X10 220 220AA0510 2
WASHER-SPRING,5MM 461 461S0500 2
BRACKET 11051 11051-1473 1
BODY-COMP-HEAD LAMP,M.D.GREEN 23005A 23005-0029-727 1
RIM-LAMP 23006 23006-0054 1
SOCKET-ASSY,PARKING LAMP 23008 23008-1616 1
SPRING,FOCUS ADJUSTING 23014 23014-005 1
SCREW,FOCUS ADJUSTING 23019 23019-021 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 1
WASHER 23021 23021-010 2
DAMPER,PARKING LAMP 23066 23066-008 1
COVER-SEAL,HEAD LAMP 49016 49016-1046 1
BOLT,FLANGED,8X35 92001 92001-1910 2
SCREW,5MM 92009 92009-1947 2
NUT,FLANGED,8MM 92015 92015-1014 2
NUT,5MM 92015A 92015-1157 2
NUT,5MM,FOCUS ADJUST 92015B 92015-1799 1
WASHER,5.2X13X1 92022 92022-1380 1
COLLAR,L=20 92027 92027-1131 2
BULB,12V 4W 92069 92069-071 1
BULB,12V 60/55W,H4 92069A 92069-1002 1
DAMPER,HEAD LAMP FITTING 92075 92075-1109 2
DAMPER,HEAD LAMP FITTING 92075A 92075-1110 2
SPRING 92144 92144-1417 1
BOLT,ADJUST,5X45 92150 92150-1590 1
LENS-COMP,HEAD LAMP 23007 23007-1362 1 WV
LENS-COMP,HEAD LAMP 23007A 23007-1416 1 UK
