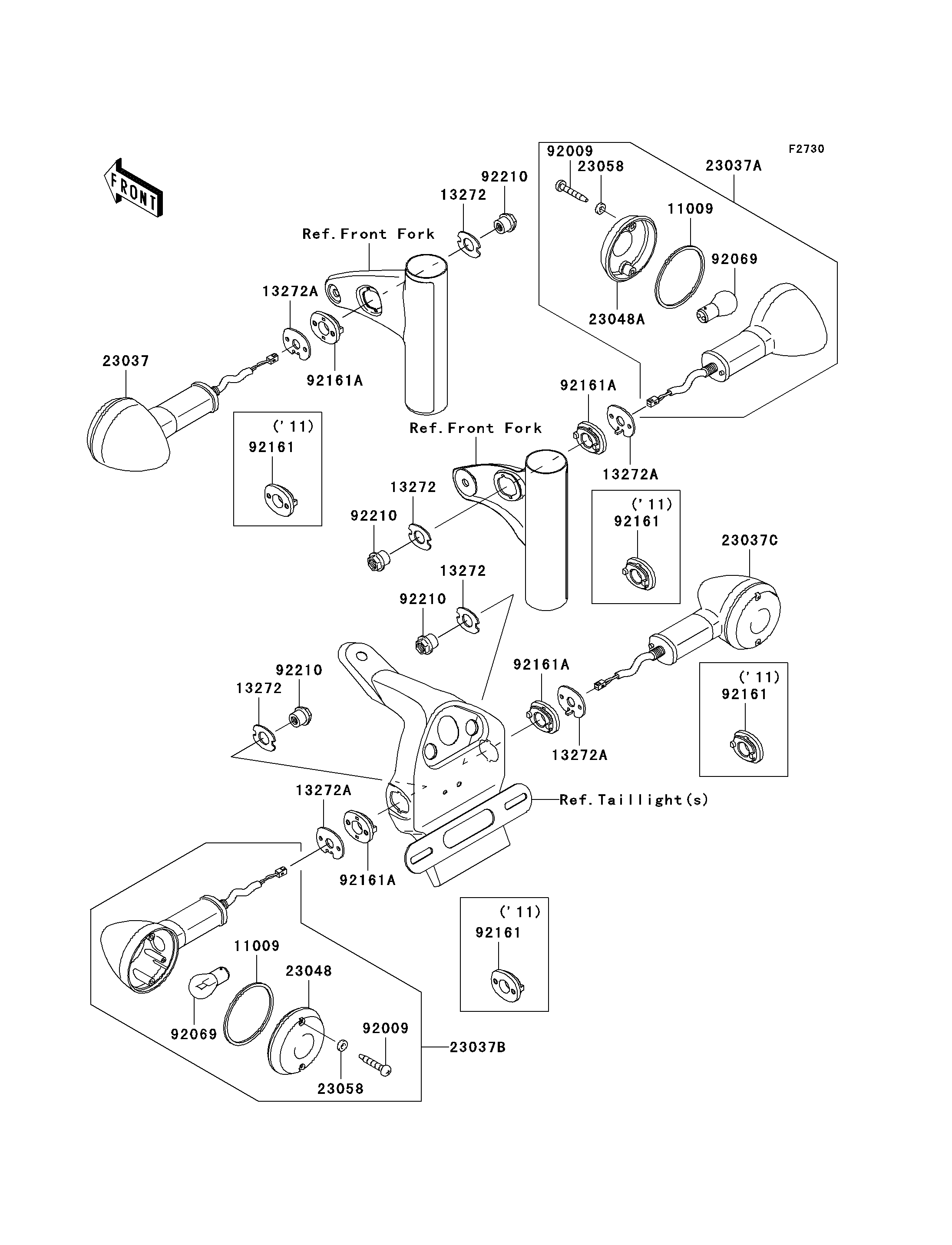

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11009
11009
13272
13272
13272
13272
23037
23037A
23037B
23037C
23048
23048A
23058
23058
92009
92009
92069
92069
92161
92161
92161
92161
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,SIGNAL LAMP | 11009 | 11009-1413 | 4 | ||
| PLATE,SIGNAL LAMP | 13272 | 13272-0968 | 4 | ||
| LAMP-ASSY-SIGNAL,FR,LH | 23037 | 23037-0196 | 1 | ||
| LAMP-ASSY-SIGNAL,FR,RH | 23037A | 23037-0197 | 1 | ||
| LAMP-ASSY-SIGNAL,RR,LH | 23037B | 23037-0198 | 1 | ||
| LAMP-ASSY-SIGNAL,RR,RH | 23037C | 23037-0199 | 1 | ||
| LENS-SIGNAL LAMP,RR | 23048 | 23048-1065 | 2 | ||
| LENS-SIGNAL LAMP,FR | 23048A | 23048-1066 | 2 | ||
| WASHER,PLAIN,4MM | 23058 | 23058-002 | 8 | ||
| SCREW,TAPPING,4X25 | 92009 | 92009-1637 | 8 | ||
| BULB,12V 21W | 92069 | 4 | (LOCAL PROCUREMENT ITEM) | ||
| DAMPER,SIGNAL LAMP | 92161 | 92161-0922 | 4 | ||
| NUT | 92210 | 92210-0632 | 4 |
| GASKET,SIGNAL LAMP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLATE,SIGNAL LAMP | |
| REF # | 13272 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY-SIGNAL,FR,LH | |
| REF # | 23037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY-SIGNAL,FR,RH | |
| REF # | 23037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY-SIGNAL,RR,LH | |
| REF # | 23037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-ASSY-SIGNAL,RR,RH | |
| REF # | 23037C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS-SIGNAL LAMP,RR | |
| REF # | 23048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LENS-SIGNAL LAMP,FR | |
| REF # | 23048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,4MM | |
| REF # | 23058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X25 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 21W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (LOCAL PROCUREMENT ITEM) |
| DAMPER,SIGNAL LAMP | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
