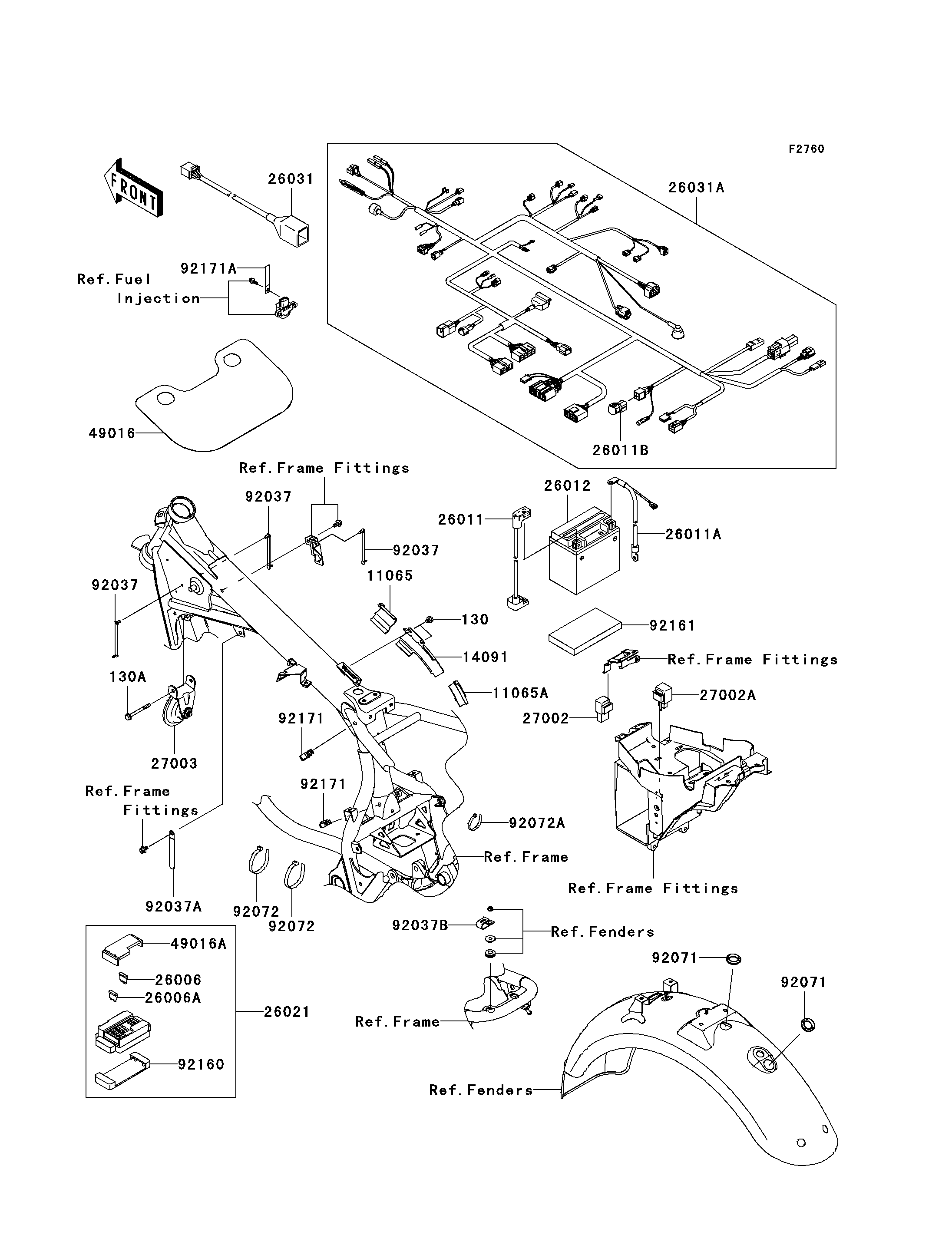

2011 W800 (European) - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11065
11065A
14091
26006
26006A
26011
26011A
26011B
26012
26021
26031
26031A
27002
27002A
27003
49016
49016A
92037
92037
92037
92037A
92037B
92071
92071
92072
92072
92072A
92160
92161
92171
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X8 130 130BB0608 2
BOLT-FLANGED,6X60 130A 130BB0660 1
CAP,HARNESS COVER,FR 11065 11065-1141 1
CAP,HARNESS COVER,RR 11065A 11065-1142 1
COVER,HARNESS 14091 14091-1274 1
FUSE,BLADE,30A,GREEN 26006 26006-1067 1
FUSE,10A-R 26006A 26006-1068 7
WIRE-LEAD,BATTERY(+) 26011 26011-0313 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0314 1
WIRE-LEAD 26011B 26011-0741 1
BATTERY,YTX12-BS,12V 10AH 26012 26012-0094 1
JUNCTION BOX 26021 26021-0053 1
HARNESS,RR 26031 26031-0991 1
HARNESS,MAIN 26031A 26031-1226 1
RELAY-ASSY 27002 27002-1062 1
RELAY-ASSY,TURN SIGNAL 27002A 27002-1101 1
HORN 27003 27003-0080 1
COVER-SEAL 49016 49016-0571 1
COVER-SEAL,FUSE 49016A 49016-0574 1
CLAMP,SPEED,L=80.5 92037 92037-1903 3
CLAMP 92037A 92037-1993 1
CLAMP 92037B 92037-2081 1
GROMMET,18X29X5 92071 92071-0054 2
BAND,L=140 92072 92072-1293 2
BAND,L=100 92072A 92072-3875 1
DAMPER,JUNCTION BOX 92160 92160-1650 1
DAMPER,BATTERY 92161 92161-0018 1
CLAMP,CLIP,DIA=20 92171 92171-0068 2
CLAMP 92171A 92171-0652 1
