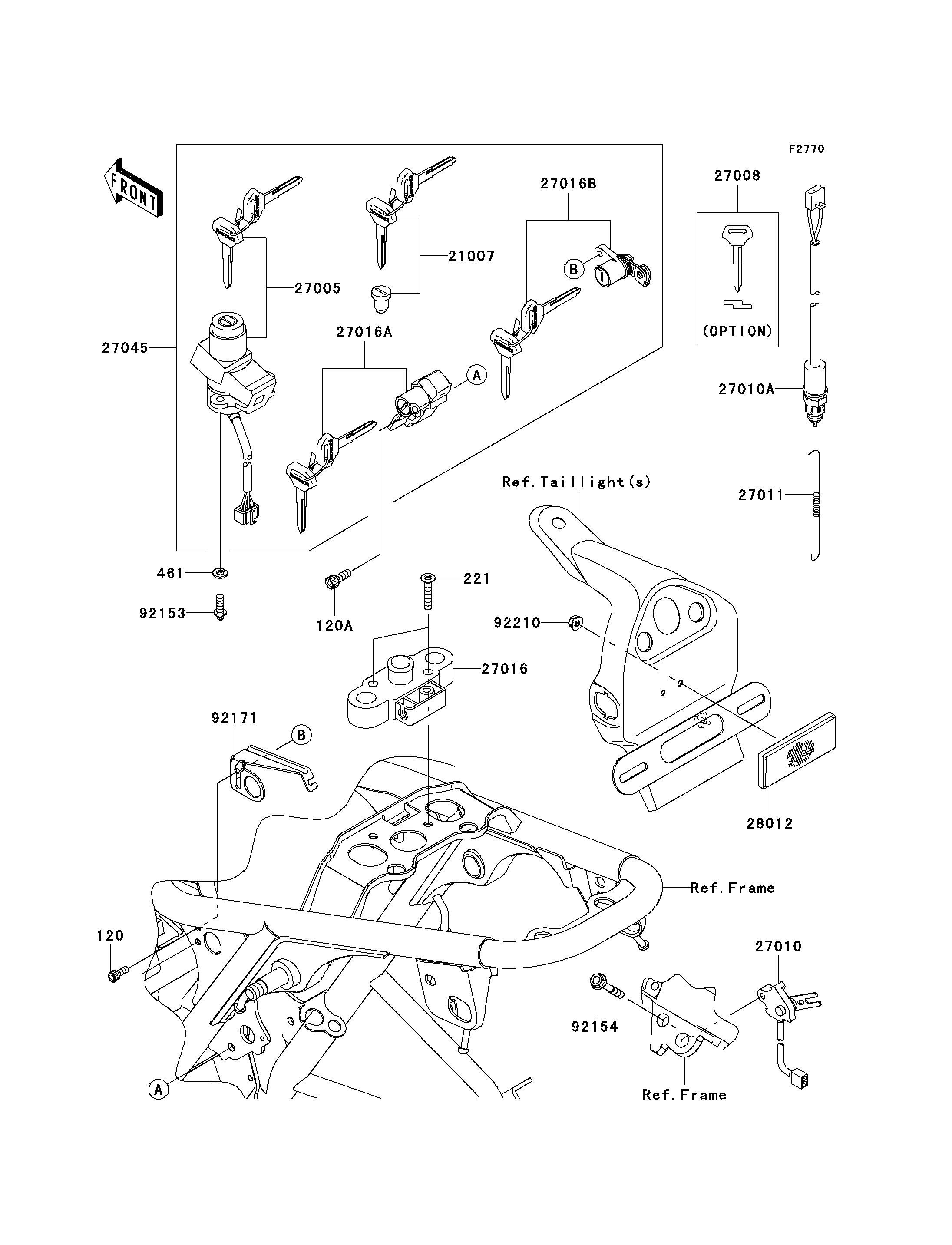

2011 W800 (European) - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
120
120A
221
461
21007
27005
27008
27010
27010A
27011
27016
27016A
27016B
27045
28012
92153
92154
92171
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120CB0512 2
BOLT-SOCKET,6X16 120A 120CB0616 1
SCREW-CSK-CROSS,6X30 221 221AB0630 2
WASHER-SPRING,6MM 461 461DA0600 2
ROTOR,LOCK,TANK CAP 21007 21007-5043 1
SWITCH-ASSY-IGNITION 27005 27005-5142 1
KEY-LOCK,BLANK 27008 27008-1189 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1468 1
SWITCH,REAR BRAKE 27010A 27010-1486 1
SPRING,BRAKE LAMP SWITCH 27011 27011-011 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1098 1
LOCK-ASSY,HELMET 27016A 27016-5249 1
LOCK-ASSY,SEAT 27016B 27016-5256 1
SWITCH-ASSY 27045 27045-5453 1
REFLECTOR-REFLEX 28012 28012-1077 1
BOLT,TORX,6X16 92153 92153-0967 2
BOLT,FLANGED,6X40 92154 92154-0859 1
CLAMP 92171 92171-1072 1
NUT,FLANGED,5MM 92210 92210-0007 1
