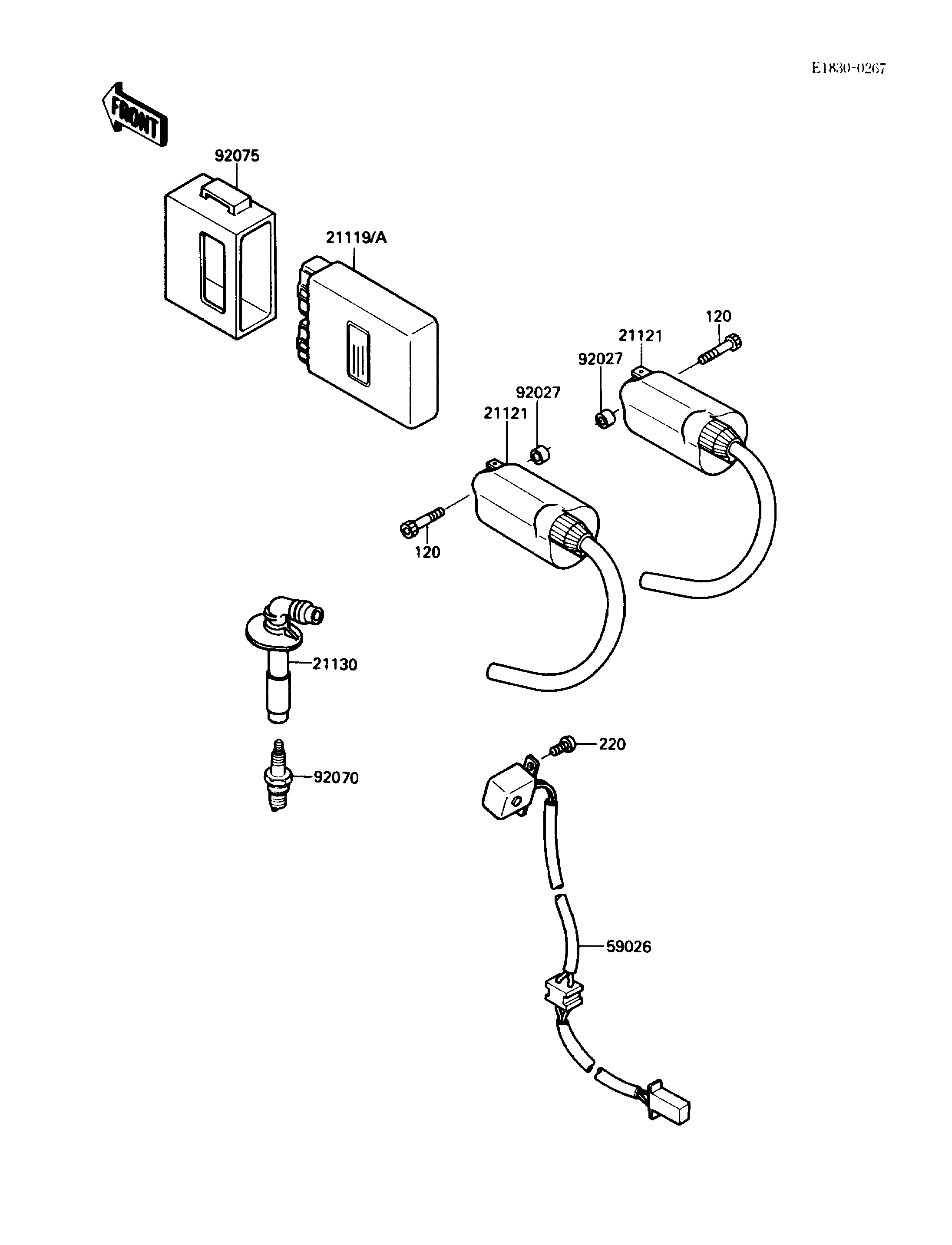

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
IGNITER 21119 21119-1229 1 US
IGNITER 21119A 21119-1233 1 CA
COIL-IGNITION 21121 21121-1163 2
CAP-SPARK PLUG 21130 21130-1056 2
COIL-PULSING 59026 59026-1086 1
COLLAR,6.8X10X6 92027 92027-103 4
PLUG-SPARK,C8HA(NGK) 92070 92070-1131 2
DAMPER,IGNITER 92075 92075-1928 1
BOLT-SOCKET,6X25 120 120P0625 4
SCREW-PAN-CROS 220 220B0510 2
