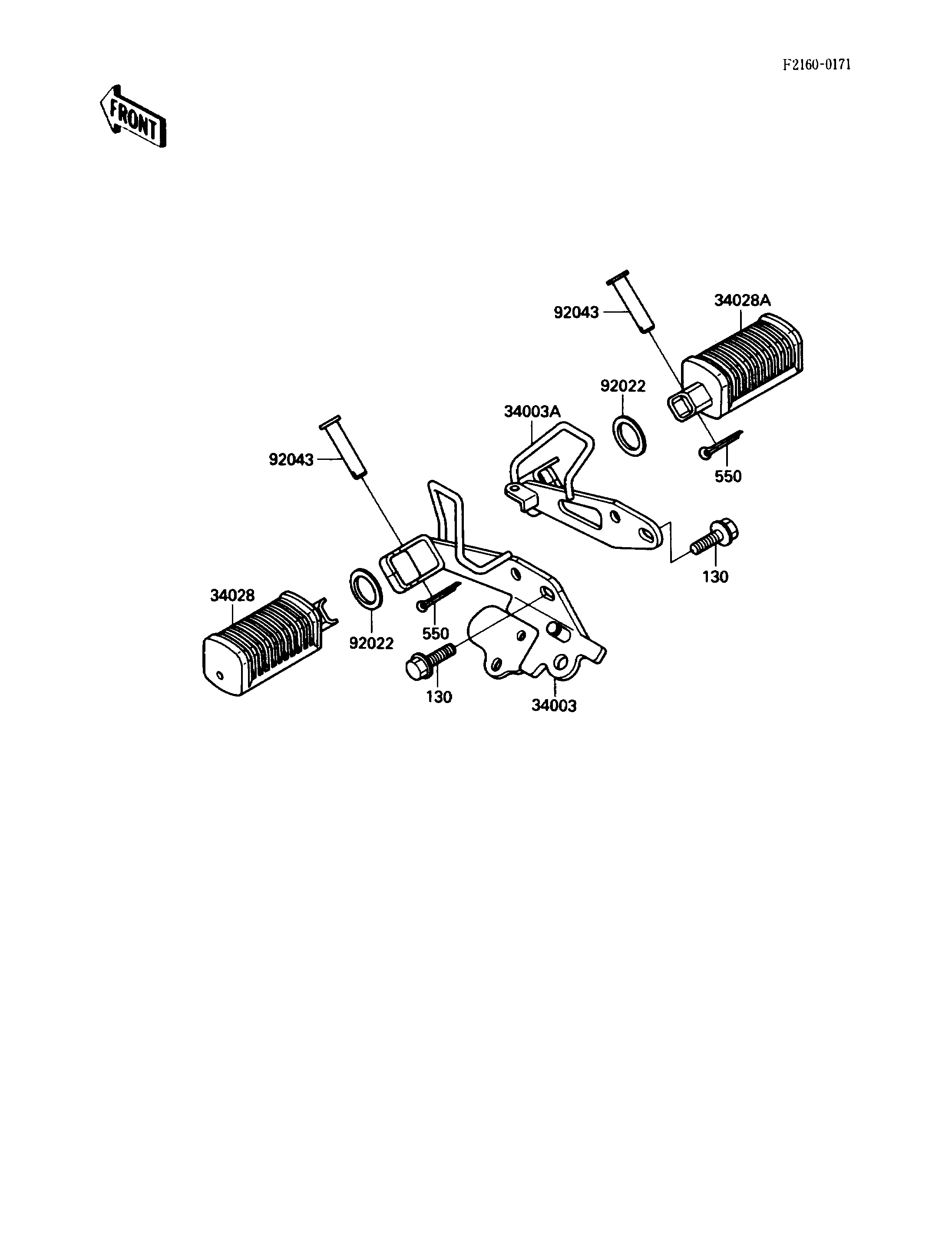

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,FR,LH 34003 34003-1305 1
HOLDER-STEP,FR,RH 34003A 34003-1306 1
STEP,FR,LH 34028 34028-1028 1
STEP,FR,RH 34028A 34028-1029 1
WASHER,25X36X2.3 92022 92022-250 2
PIN,8X35.5 92043 92043-115 2
BOLT-FLANGED,10X25 130 130J1025 4
PIN-COTTER,2.5X15 550 550D2515 2
