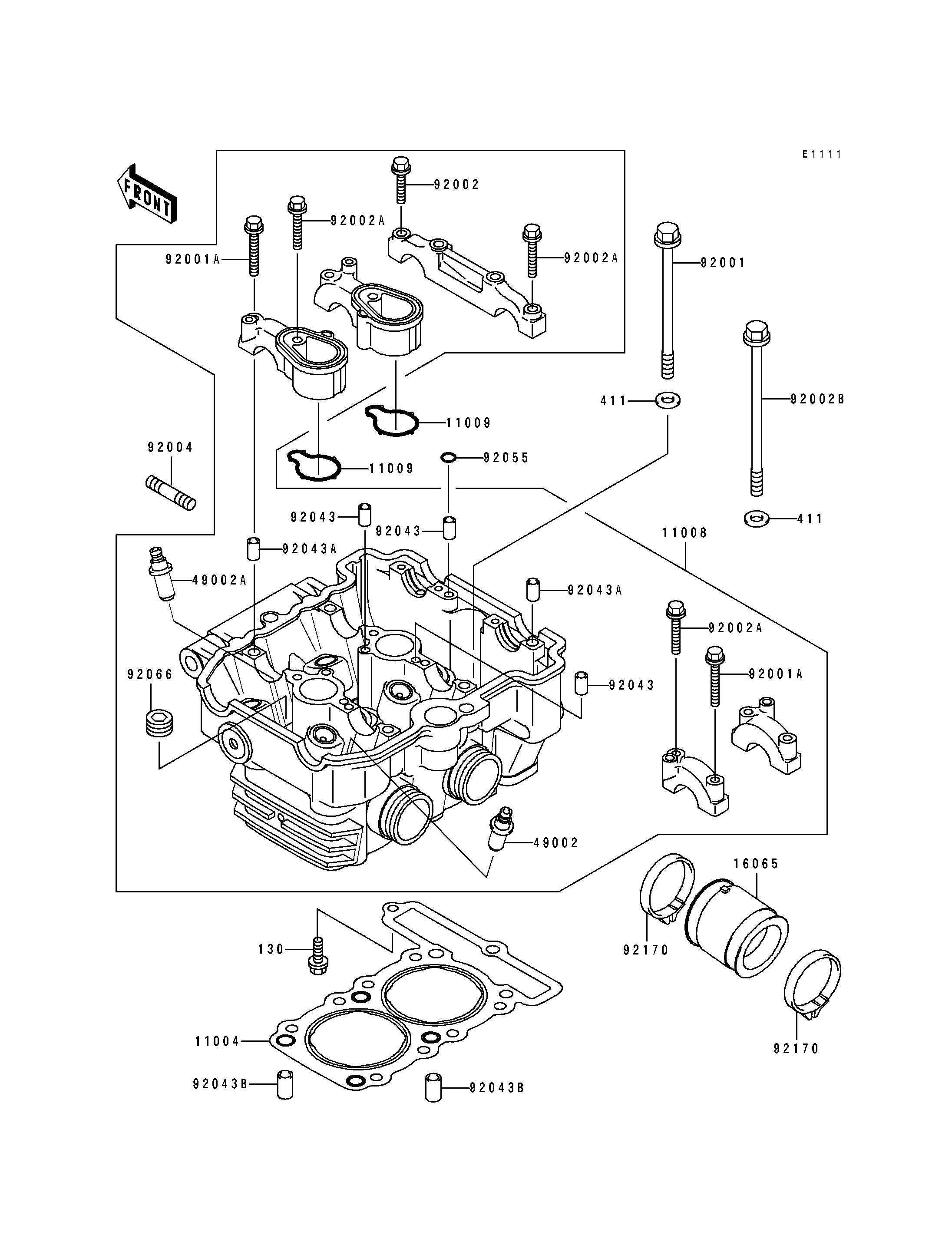

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1207 1
HEAD-COMP-CYLINDER 11008 11008-1201 1
GASKET,CAMSHAFT BRACKET 11009 11009-1573 2
HOLDER-CARBURETOR 16065 16065-1158 2
GUIDE-VALVE,INTAKE 49002 49002-1070 4
GUIDE-VALVE,EXHAUST 49002A 49002-1071 4
BOLT,8X115 92001 92001-1481 1
BOLT,6X46 92001A 92001-1872 4
BOLT,6X30 92002 92002-1755 1
BOLT,6X40 92002A 92002-1756 7
BOLT,8X146 92002B 92002-1832 6
STUD,6X22 92004 92004-059 4
PIN,4.2X6X12 92043 92043-1262 5
PIN,6.2X8X14 92043A 92043-1263 5
PIN,8.2X10X14 92043B 92043-1264 2
RING-O,5.5X1.5 92055 92055-1339 1
PLUG 92066 92066-1253 3
CLAMP 92170 92170-1438 4
BOLT-FLANGED,6X25 130 130J0625 1
WASHER-PLAIN,8MM 411 411B0800 7
