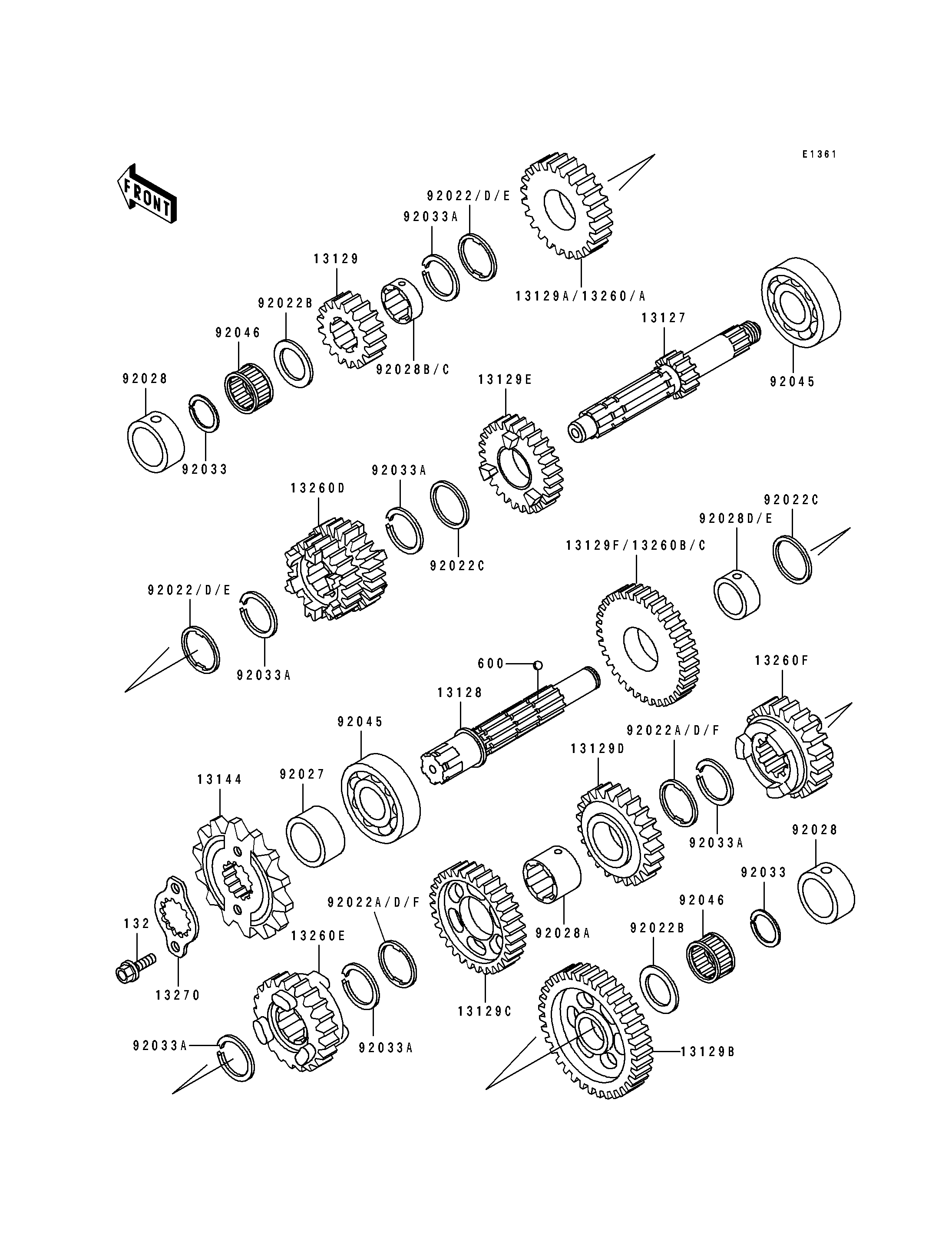

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT | 13127 | 13127-1134 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1172 | 1 | ||
| GEAR,INPUT 2ND,19T | 13129 | 13129-1086 | 1 | ||
| GEAR,OUTPUT LOW,39T | 13129B | 13129-1254 | 1 | ||
| GEAR,OUTPUT 3RD,31T | 13129C | 13129-1781 | 1 | ||
| GEAR,OUTPUT 4TH,29T | 13129D | 13129-1782 | 1 | ||
| GEAR,INPUT 5TH,27T | 13129E | 13129-1882 | 1 | ||
| SPROCKET-OUTPUT,14T | 13144 | 13144-1126 | 1 | ||
| GEAR,INPUT TOP,28T | 13260 | 13260-1033 | 1 | ||
| GEAR,OUTPUT 2ND,34T | 13260B | 13260-1034 | 1 | ||
| GEAR,INPUT 3RD&4TH,22T&25T | 13260D | 13260-1098 | 1 | ||
| GEAR,OUTPUT TOP,25T | 13260E | 13260-1099 | 1 | ||
| GEAR,OUTPUT 5TH,27T | 13260F | 13260-1267 | 1 | ||
| PLATE,SPROCKET | 13270 | 13270-1060 | 1 | ||
| WASHER,20.5X30X1,STEEL | 92022B | 92022-112 | 2 | ||
| WASHER,25.3X30X1 | 92022C | 92022-161 | 2 | ||
| WASHER,23X30X1.0 | 92022D | 92022-1935 | 4 | ||
| COLLAR,ENGINE SPROCKET | 92027 | 92027-1302 | 1 | ||
| BUSHING,25X33X14 | 92028 | 92028-1426 | 2 | ||
| BUSHING | 92028A | 92028-1437 | 1 | ||
| BUSHING,TOP GEAR | 92028B | 92028-1563 | 1 | ||
| BUSHING,9.4X25X28 | 92028D | 92028-1564 | 1 | ||
| RING-SNAP,20MM | 92033 | 92033-015 | 2 | ||
| RING-SNAP,24MM | 92033A | 92033-026 | 6 | ||
| BEARING-BALL,#6205NX3 | 92045 | 92045-1013 | 2 | ||
| BEARING-NEEDLE,20R2513P | 92046 | 92046-044 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0608 | 2 | ||
| BALL-STEEL,5/32" | 600 | 600A0500 | 3 |
