Parts Diagrams |

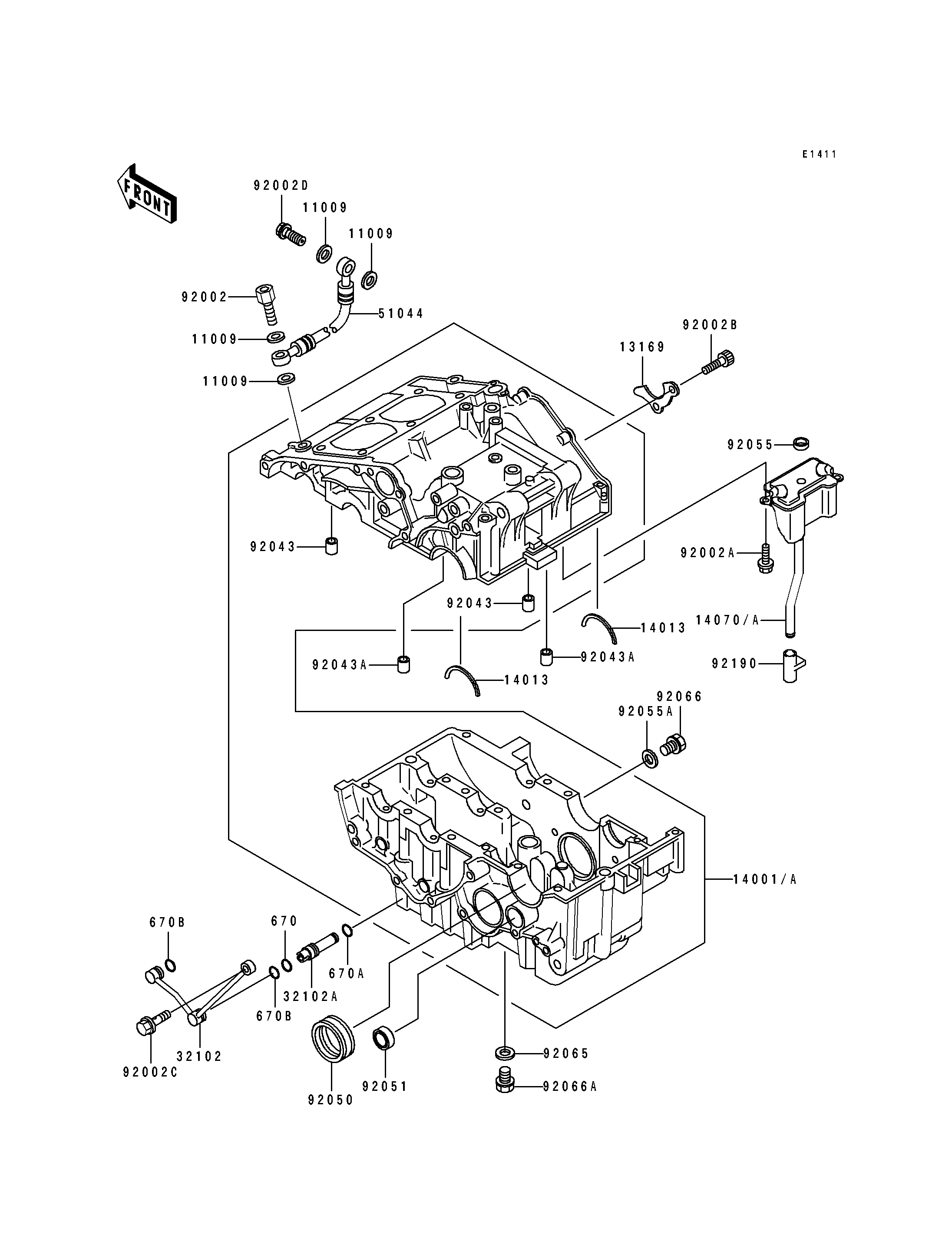

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 4 | ||
PLATE | 13169 | 13169-1659 | 1 | ||
SET-CRANKCASE | 14001 | 14001-1095 | 1 | ||
RING-POSITION | 14013 | 14013-004 | 2 | ||
BODY-BREATHER | 14070A | 14070-1081 | 1 | ||
PIPE | 32102 | 32102-1017 | 1 | ||
PIPE | 32102A | 32102-1018 | 1 | ||
TUBE-ASSY | 51044 | 51044-1074 | 1 | ||
BOLT,OIL SWITCH | 92002 | 92002-1427 | 1 | ||
BOLT,6X10 | 92002A | 92002-1449 | 2 | ||
BOLT,SOCKET,6X14 | 92002B | 92002-1592 | 2 | ||
BOLT,BANJO,8X20 | 92002C | 92002-1705 | 1 | ||
BOLT,OIL,L=23 | 92002D | 92002-1907 | 1 | ||
PIN,9.2X12X14 | 92043 | 92043-1265 | 2 | ||
PIN,3.5X6X16 | 92043A | 92043-1309 | 2 | ||
SEAL-OIL,SC325210 | 92050 | 92050-024 | 1 | ||
SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
RING-O,OD=18 | 92055 | 92055-048 | 1 | ||
RING-O | 92055A | 92055-1146 | 1 | ||
GASKET,12X22X2,DRAIN PLUG | 92065 | 92065-097 | 1 | ||
PLUG,MAIN GALLERY,18X9,BLACK | 92066 | 92066-1096 | 1 | ||
PLUG,OIL DRAIN,12X15 | 92066A | 92066-1174 | 1 | ||
TUBE | 92190 | 92190-1489 | 1 | ||
O RING,9MM | 670 | 670D1509 | 1 | ||
O RING | 670A | 670D2010 | 1 | ||
O RING,12MM | 670B | 670D2012 | 2 |
GASKET,10X14.5X1.5 | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13169 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SET-CRANKCASE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-POSITION | |
REF # | 14013 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BODY-BREATHER | |
REF # | 14070A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE | |
REF # | 32102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE | |
REF # | 32102A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-ASSY | |
REF # | 51044 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,OIL SWITCH | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X10 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,SOCKET,6X14 | |
REF # | 92002B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,BANJO,8X20 | |
REF # | 92002C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=23 | |
REF # | 92002D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,9.2X12X14 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,3.5X6X16 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,SC325210 | |
REF # | 92050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,TB13225.5 | |
REF # | 92051 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,OD=18 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,12X22X2,DRAIN PLUG | |
REF # | 92065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,MAIN GALLERY,18X9,BLACK | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,OIL DRAIN,12X15 | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92190 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,9MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING | |
REF # | 670A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
O RING,12MM | |
REF # | 670B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
