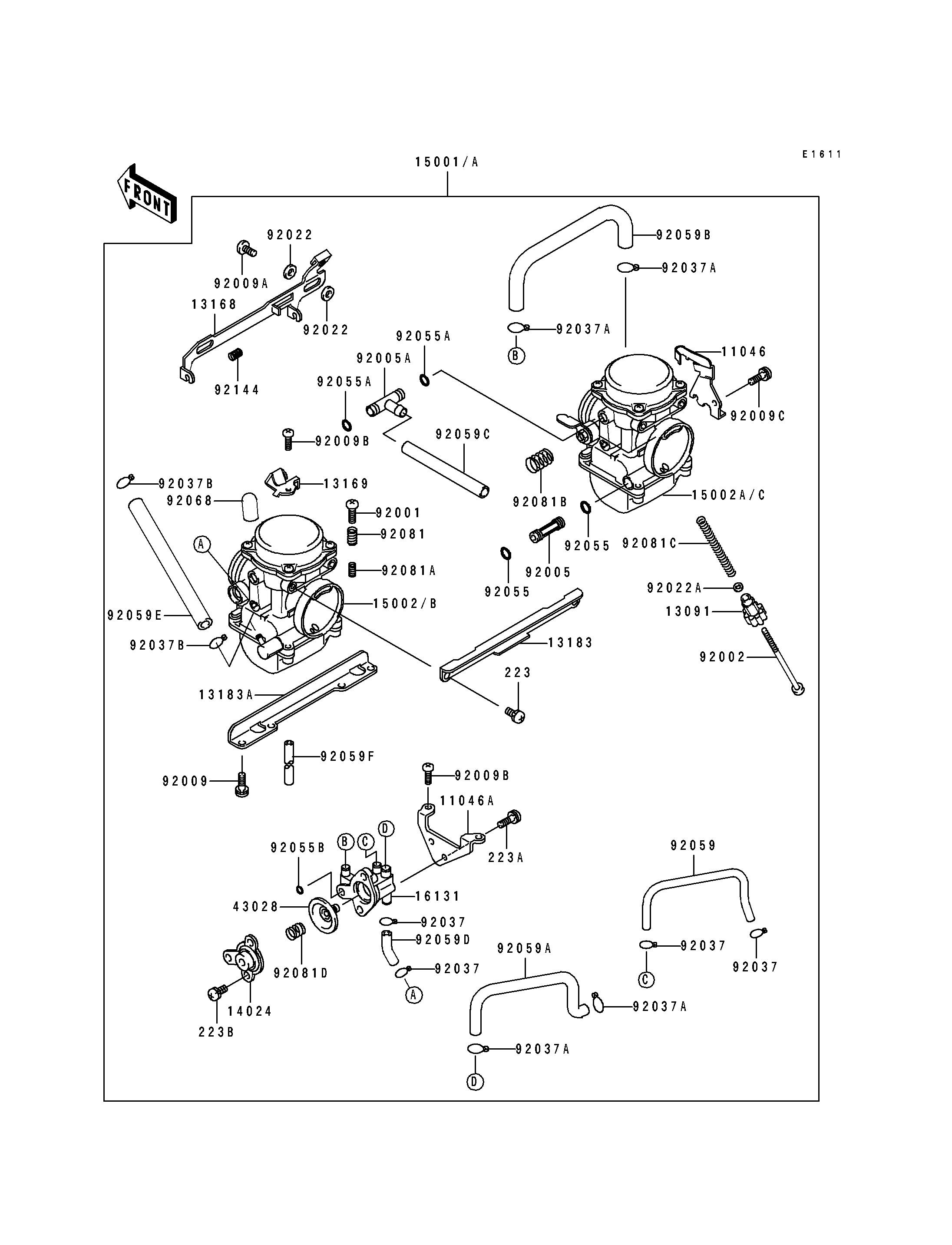

1994 Eliminator 250 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABLE 11046 11046-1081 1
BRACKET,AIR CUT VALVE 11046A 11046-1082 1
HOLDER,THROTTLE STOP SCREW 13091 13091-1382 1
LEVER,STARTER 13168 13168-1330 1
PLATE,STARTER CABLE 13169 13169-1965 1
PLATE,CARBURETOR STAY,UPP 13183 13183-1029 1
PLATE,CARBURETOR STAY,LWR,6MM 13183A 13183-1030 1
COVER,AIR CUT VALVE 14024 14024-1327 1
CARBURETOR-ASSY 15001 15001-1393 1
CARBURETOR,LH 15002 15002-1584 1
CARBURETOR,RH 15002A 15002-1585 1
BODY-VALVE,DIAPHRAGM 16131 16131-1062 1
DIAPHRAGM,AIR CUT VALVE 43028 43028-1053 1
BOLT,THROTTLE ADJUST 92001 92001-1998 1
BOLT,THROTTLE STOP SCREW 92002 92002-1552 1
FITTING,FUEL,I-TYPE 92005 92005-1109 1
FITTING,T-TYPE 92005A 92005-1125 1
SCREW,6X16 92009 92009-1129 4
SCREW 92009A 92009-1262 2
SCREW,4X18 92009B 92009-1446 3
SCREW 92009C 92009-1510 1
WASHER,6.1X11X0.8,POLYACETAL 92022 92022-1199 4
WASHER,PLAIN,STOP SPRING 92022A 92022-1480 1
CLAMP,TUBE 92037 92037-1142 4
CLAMP,TUBE 92037A 92037-1477 4
CLAMP,TUBE 92037B 92037-1531 2
RING-O 92055 92055-1004 2
RING-O,FUEL FITTING 92055A 92055-1223 2
RING-O 92055B 92055-1245 1
TUBE,3.5X6.5X180 92059 92059-1140 1
TUBE,5X9X160 92059A 92059-1201 1
TUBE,5X9X180 92059B 92059-1377 1
TUBE,6.5X9.5X500 92059C 92059-1465 1
TUBE,3.5X6.5X26 92059D 92059-1722 1
TUBE,6.5X11.5X320 92059E 92059-1892 1
TUBE,3.5X6.5X390 92059F 92059-1893 2
PLUG,12X25 92068 92068-006 1
SPRING,THROTTLE ADJUST UPP 92081 92081-1620 1
SPRING,THROTTLE ADJUST LWR 92081A 92081-1621 1
SPRING,THROTTLE ADJUST CNT 92081B 92081-1622 1
SPRING,THROTTLE STOP SCREW 92081C 92081-1875 1
SPRING,AIR CUT VALVE 92081D 92081-1891 1
SPRING,THROTTLE ADJUST UPP 92144 92144-1048 1
SCREW-PAN-WS-CROS 223 223C0510 4
SCREW-PAN-WS-CROS 223A 223D0408 2
SCREW-PAN-WS-CROS 223B 223D0410 2
